aluminum door making machine cnc double head cutting machine

● Professional for aluminum profile cutting.

● Fool operation: no skilled workers, to solve the factory recruitment difficulties, automatic height measuring device, do not need to consider the profile height error, error prevention function: profile error beyond the range of no cutting.

● High precision: integrated casting table, high precision spindle saw blade motor, cutting length error 0.1mm, cutting surface flatness ≤0.10mm, cutting Angle error 5 '.

● Wide range: 45 degree rectangular tube - width 180mm* height 110mm.

● Short cutting function, the shortest cutting 260mm (double head 45° profile short side length);

● Manual arbitrary Angle function (45°-90°) is standard.

● Saw blade speed variable frequency adjustable, according to the profile wall thickness to match the best speed.

● Data import method:

● More environmentally friendly: unique design of dust removal and vacuuming, vacuuming rate 80%, clean site, reduce cleaning frequency, improve work efficiency.

Contact Now

Product Details

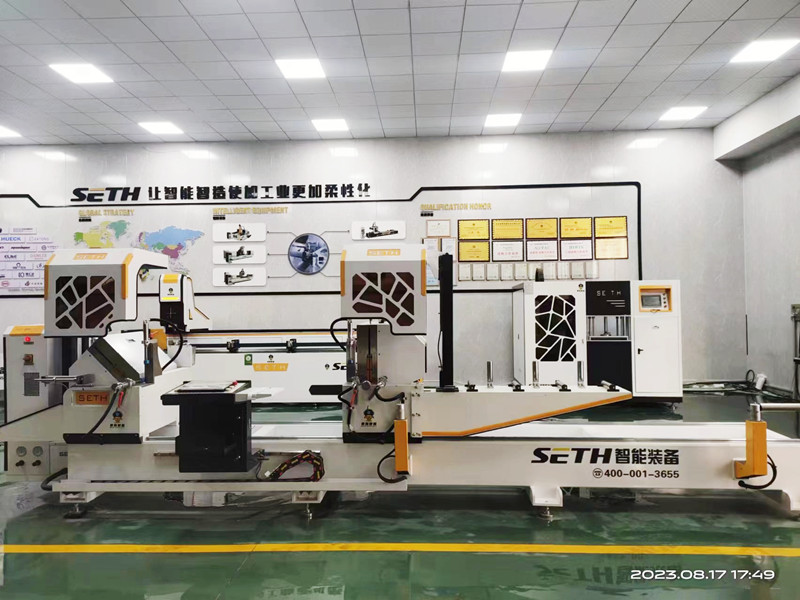

Window door making machine cnc double head cutting off saw

Features:

1. Mainly used for cutting industrial aluminum profiles, PVC profiles, aluminum doors and Windows, curtain wall materials.

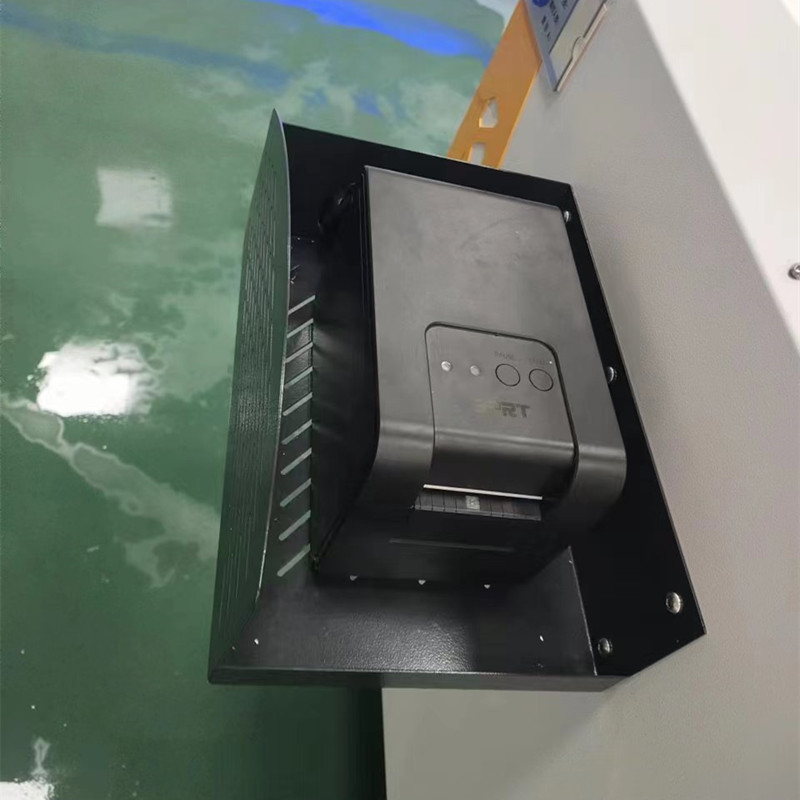

2. Operation without skilled workers, solve the factory recruitment difficulties, label printing function, error prevention function.

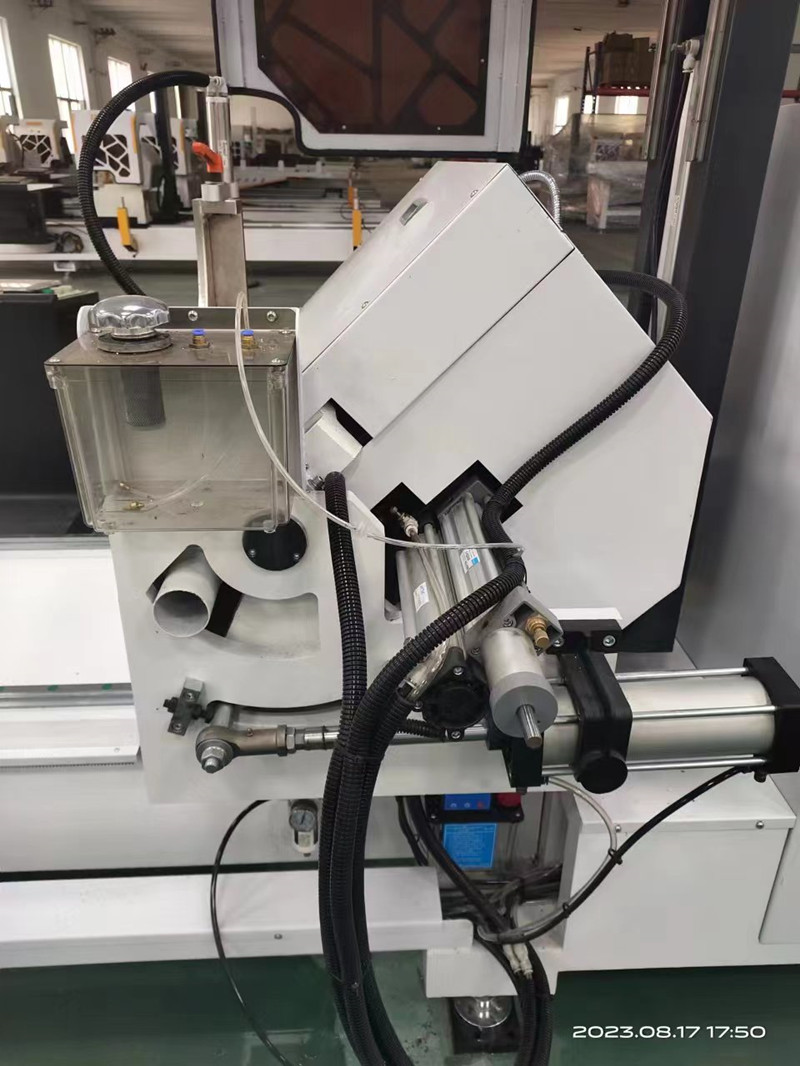

3. High-precision, integrated casting workbench, integrated spindle directly connected motor, integrated gas-liquid damping cylinder, T1, T2 heads are located on the integrated guide rail.

4. Supports multiple data import modes:Internet, LAN, U disk, Bluetooth, manual input, etc. Can realize the market common optimization software data docking.
5. Environmental protection function, unique chip removal, vacuuming design, vacuuming rate of 70%, clean site, reduce cleaning frequency, improve work efficiency.

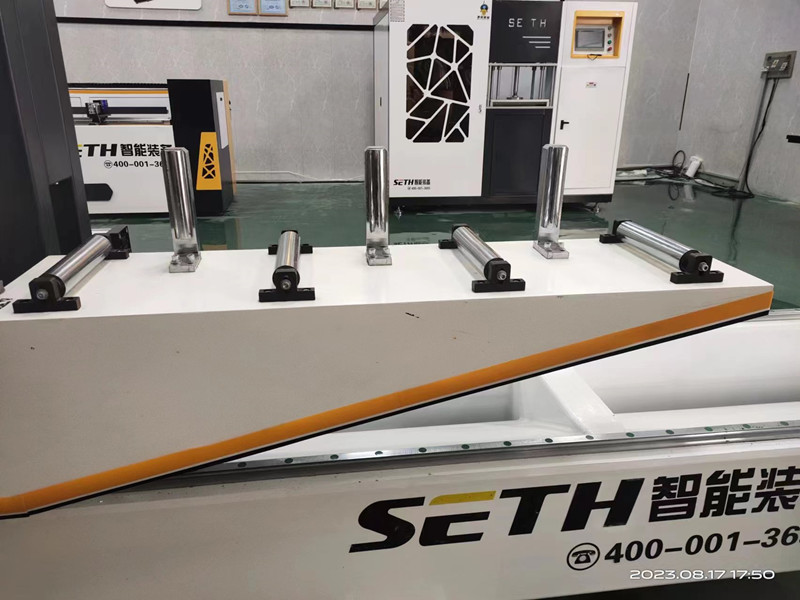

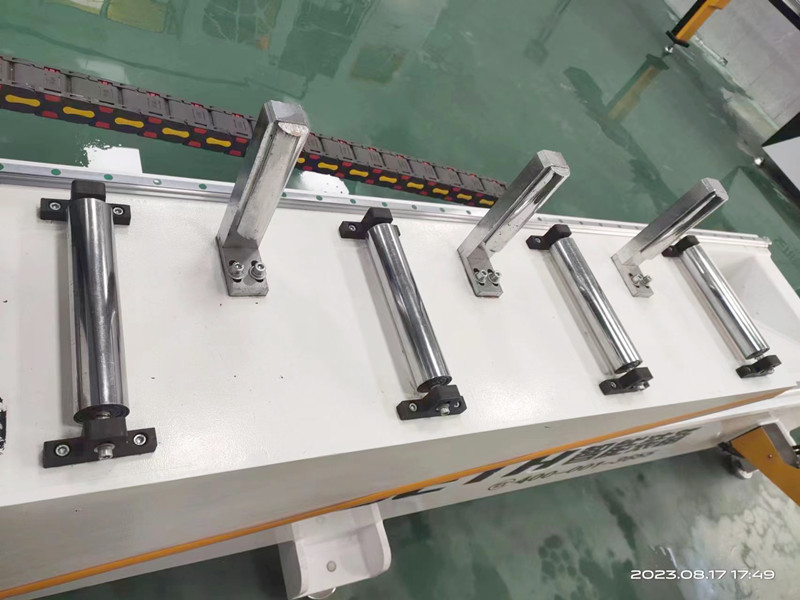

6.It is equipped with patented rotary lifting bracket to avoid cutting error caused by middle droop, and equipped with movable profile bracket.

● Network bus control, strong anti-interference ability, to ensure repeated sizing accuracy to a greater extent.

● Equipped with middle bracket to avoid cutting error caused by middle sag, equipped with movable profile bracket.

● Standard tool life management system, saw blade need grinding, replacement automatic prompt.

● Standard automatic maintenance prompt function, in advance to eliminate equipment hidden dangers, improve equipment utilization.

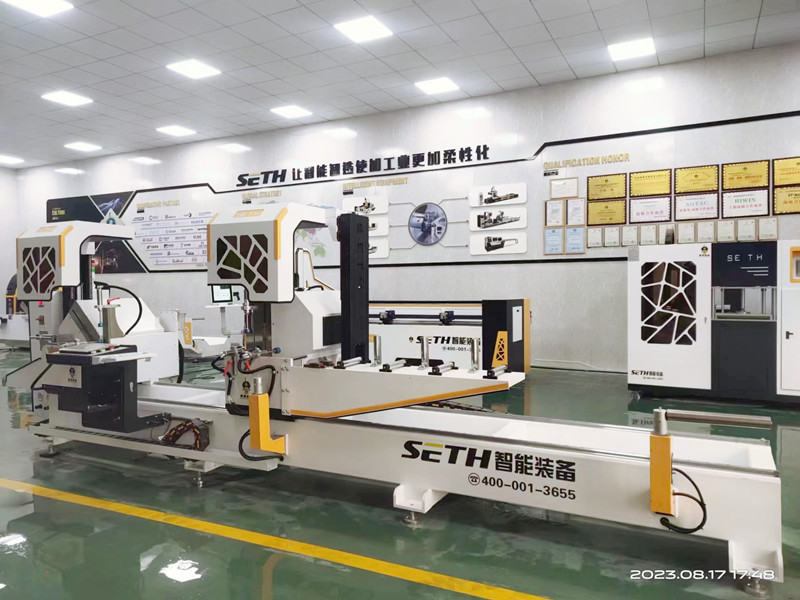

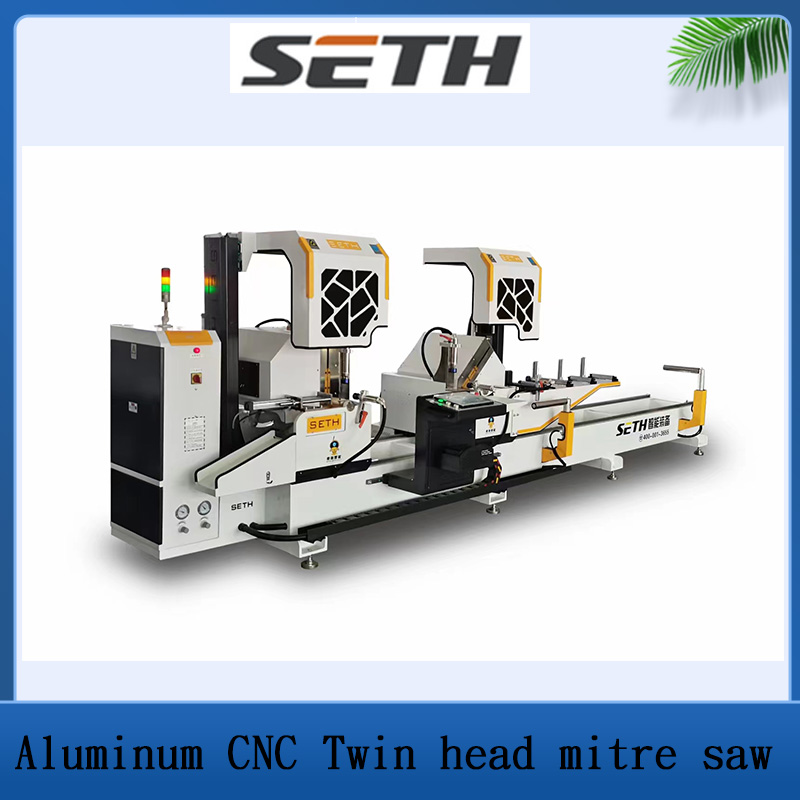

cnc double head cutting saw.jpg

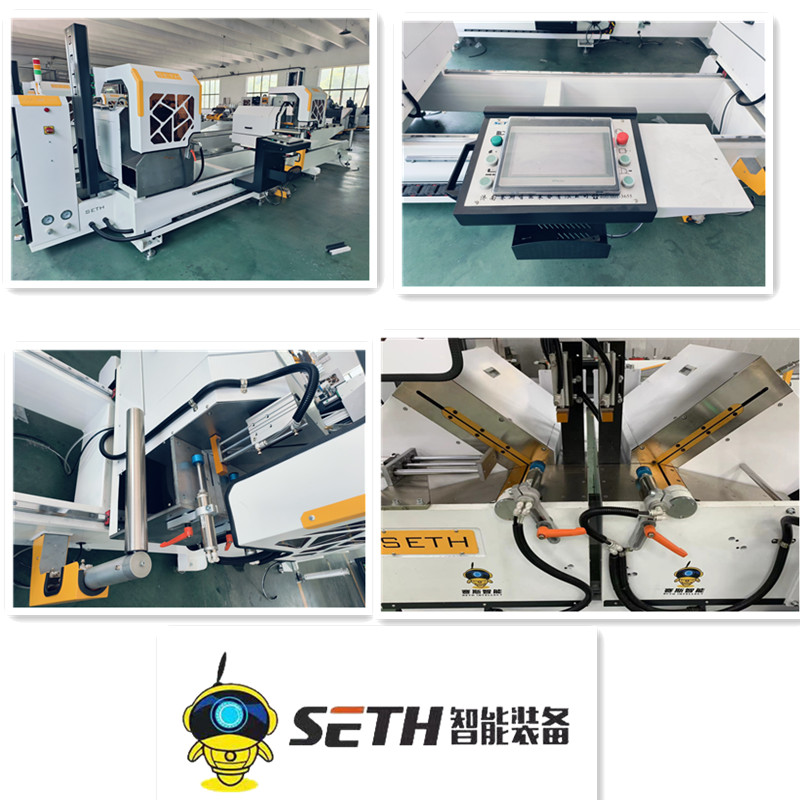

door making machine.jpg

Power supply 380V 50Hz power 10kw

Air pressure 0.5~0.8Mpa Air consumption 60L/min

Sawing motor 2×2.2Kw 2800r/min Feed speed stepless speed regulation 0~3m/min

Saw blade size φ550×φ30× 4.4Z =120

Cutting length: 90° : max 5000 mm min360 mm

45° : max5000 mm min360+2H mm (H profile height)

Cutting width: 180mm Cutting height: 110mm (See sawing diagram for details)

Sawing Angle: left head -45°, 90° Right head 90°, 45°

Repeated length error ±0.1mm cutting surface flatness ≤0.1mm

Cutting Angle error ±5 'cutting surface roughness Ra12.5μm

Dimensions: 9750mm (including support rack) ×1730mm× 1550mm

Weight: about 2000kg

Power supply	380v 50hz
Saw head motor	2× 3KW/3000r/min
Working pressure	0.6~ 0.8MPa
Air consumption	60L/min
Cutting length	Max6000mm min 280mm (Short cutting function is the shortest 200mm)
Cutting width	Max 150mm
Max. Cutting slope	45°180×170mm 90°180×345mm
Max. square tube cutting	180×200mm
Cutting angle	45degree 90degree
Feeding speed	continuously viable 0-4m/min
Saw blade specification	ø550 × ø30 × 4.4× Z120
dimension	5800× 1800× 1500 mm
weight	2000kgs
Accuracy of repeated fixed length	≤ 0.1mm
Allowance of section cutting angle	± 3'
Flatness of cutting profile	≤ 0.02m
Roughness of cutting profile	Ra12.5μm

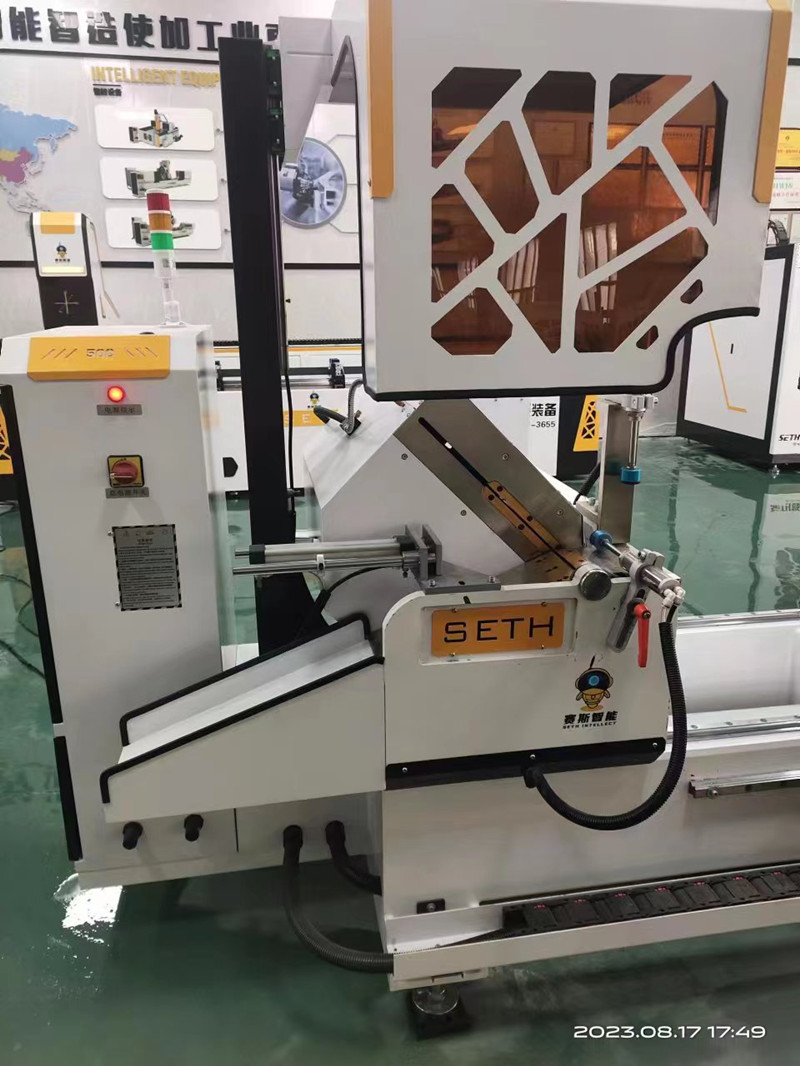

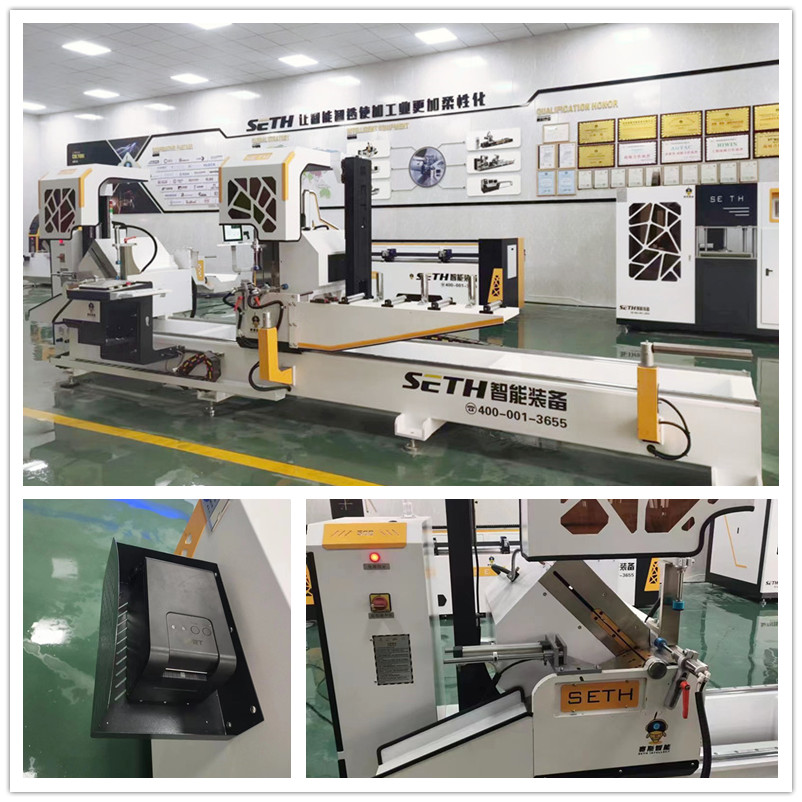

cnc cutting machine.jpg

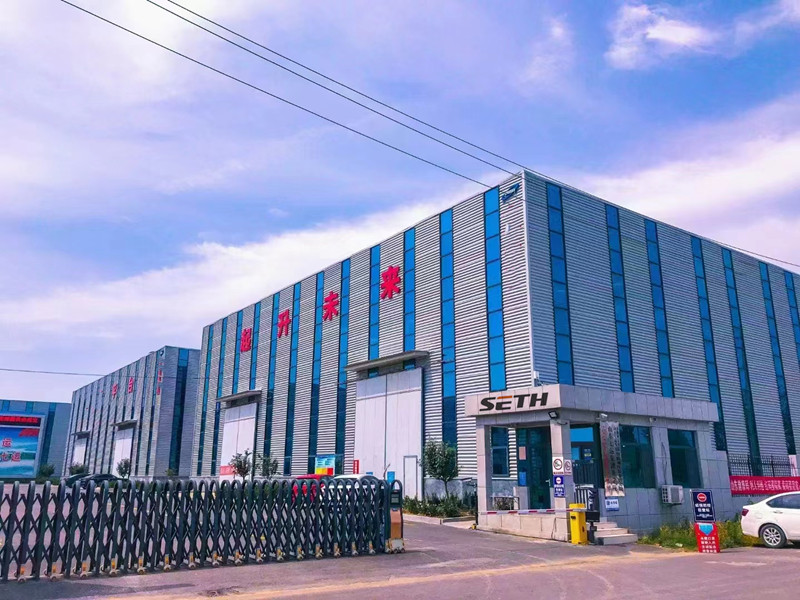

Company profile:

Jinan SETH Intelligent Equipment co.ltd., very glad to being your service.

We are leading manufacturer in China which specialized in aluminum cnc machine ,

Aluminum/Upvc profile window door making machines

aluminum curatin wall material processing machinery.

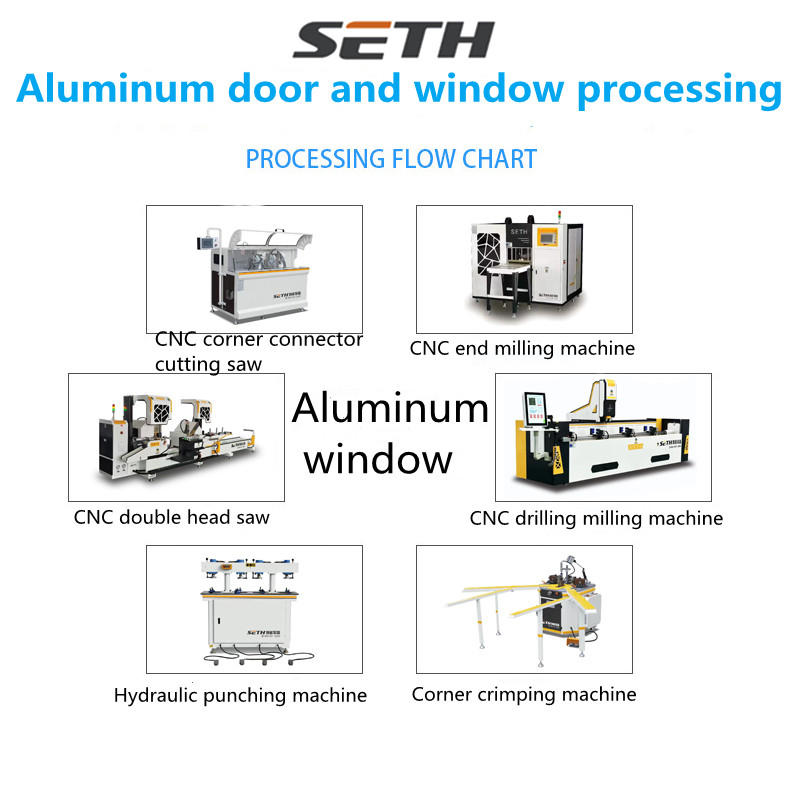

such as mitre saw ,corner crimping machine,corner connecting cutting saw, punching machine,

copy routing machine ,drilling and milling machine, welding machine,corner cleaning machine exc.

products supplying for over 15 years;

good quality and professional service help us gain many good reputation all over the world;

we hope you can join us in the future.

Package:

We use standard export wooden cases, the equipment packaging is very safe,

to ensure that the equipment in transit will not be affected by the outside world.

To provide customers with good service is our aim. We strive to get every detail right. The devil is in the details.

That's what Seth Corporation is all about

machine cnc.jpg

aluminum processing.jpg

Why choosing SETH?
Using newest technology
professional Technical & Engineering experts
10+ Years Experience
Realiable & Safe machine
Reasonable price

RFQ:

Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company in china.

Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine, CNC milling machine,

aluminum punching machine, end milling machine, copy router and corner connector saw, etc; Wood window machines: wood saw,

wood window frame machine, vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
we have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching, ubsidy USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
