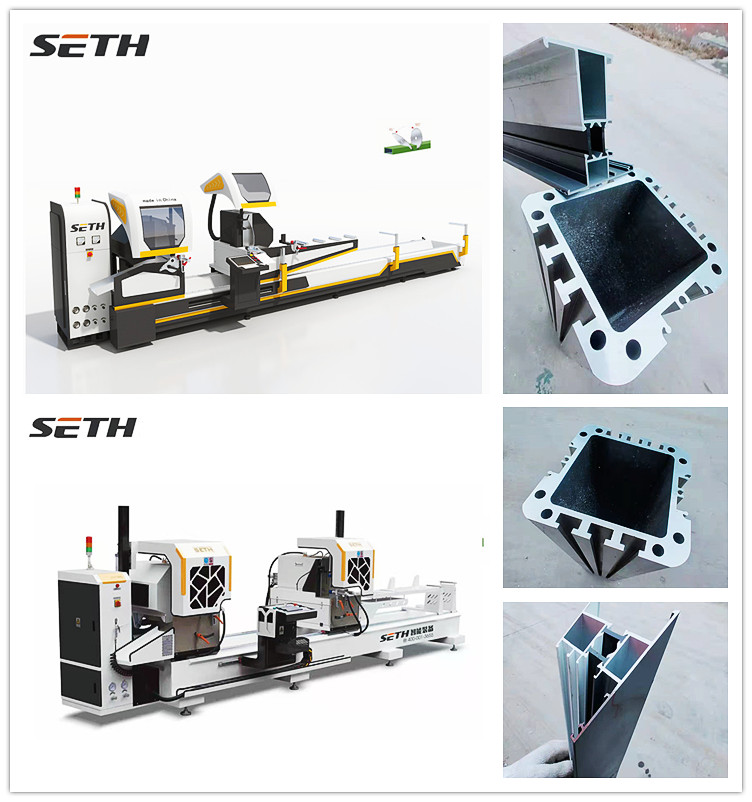

cnc double head cutting machine

☆ Mainly used for cutting industrial aluminum profiles, aluminum doors and Windows, curtain wall materials, also can be used for PVC and wood

Cutting and blanking of profiles.

☆ The machine adopts numerical control technology and can complete automatic positioning cutting of different sizes of profiles.

☆ Selected high-quality aluminum carbide saw blade, outer diameter up to 500, high wire speed, high processing accuracy.

☆ CNC transmission adopts high standard rack and pinion, high transmission accuracy, accurate positioning, stable work.

☆ High precision spindle ensures stable rotation of saw blade and effectively improves surface quality of workpiece.

☆ Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.

☆ The use of micro spray cooling device.

☆ Automatic head rotation, bidirectional positioning, clamping, single head can work independently. Automatic opening and closing protective cover,

Make operation safer.

☆ The saw blade automatically swings into 45° and 90° angles, automatically opens and closes the protective cover, so that the operation is safer.

☆ Saw blade from back to front, saw cutting profile is more safe and reliable, and saw cutting height and saw cutting width are very large.

Contact Now

Product Details

☆ Especially used for reducing industrial aluminum profiles, aluminum doors and home windows, curtain wall materials, also may be used for p.c and timber

Reducing and blanking of profiles.

☆ the machine adopts numerical control era and may whole computerized positioning cutting of different sizes of profiles.

☆ selected great aluminum carbide saw blade, outer diameter as much as 500, excessive wire speed, high processing accuracy.

☆ cnc transmission adopts excessive popular rack and pinion, excessive transmission accuracy, correct positioning, solid work.

☆ excessive precision spindle guarantees strong rotation of noticed blade and efficiently improves floor nice of workpiece.

☆ fuel-liquid damping cylinder to attain uniform feed speed regulation, smooth motion.

☆ the use of micro spray cooling tool.

☆ computerized head rotation, bidirectional positioning, clamping, single head can work independently. computerized opening and last shielding cowl,

Make operation safer.

☆ the saw blade mechanically swings into forty five° and ninety° angles, robotically opens and closes the protective cowl, in order that the operation is more secure.

☆ saw blade from again to the front, saw reducing profile is extra safe and reliable, and noticed cutting height and saw cutting width are very large.

Power	380V 50HZ
Saw head motor	2×3KW/ 2840r/min
Working pressure	0.5 ~ 0.8mpa
Air consumption	60L/min
Saw length	Max4300mm MIN420mm (8200-300)
Saw width	Max 140mm
Maximum cutting slope	45°140×220mm 90°140×300mm
Sawing Angle	90°, 45°
Feed speed	stepless speed regulation 0-3m/min
Saw blade specifications	ø500 × ø30 × 4.4× Z120
Dimensions	5800×1800×1500 mm
Weight	1650 kg
Repeat constant length accuracy	≤ 0.05mm
Profile cutting Angle tolerance	±3 '
Cutting plane flatness	≤ 0.1m
Roughness of cutting surface	Ra12.5μm
