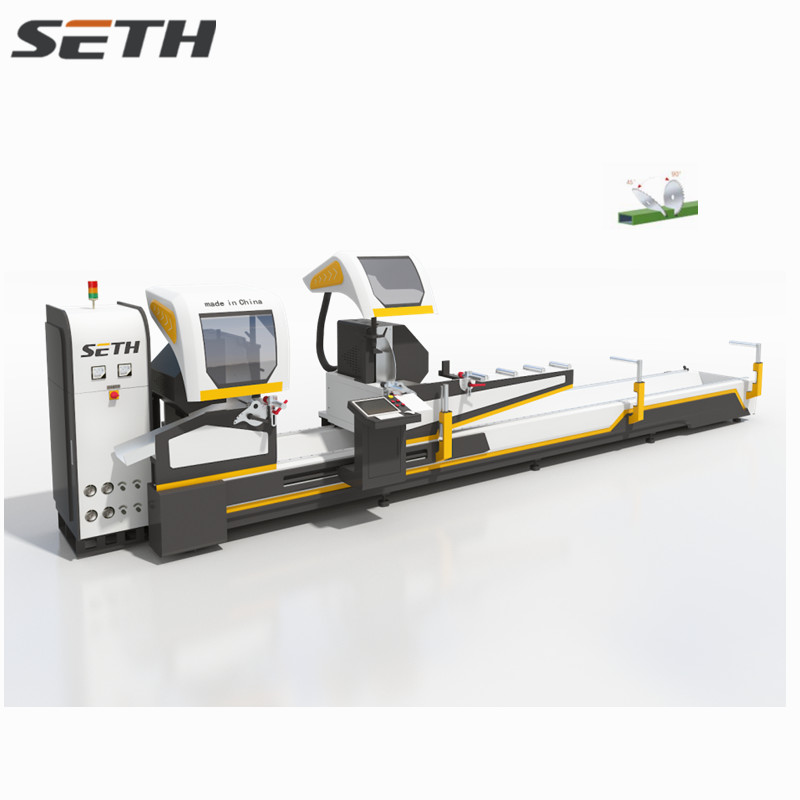

aluminum window machine heavy duty for aluminum profile
Features :
● Mainly used for cutting industrial aluminum profiles, PVC profiles, aluminum doors and Windows, curtain wall materials.
● Operation without skilled workers, solve the factory recruitment difficulties, label printing function, error prevention function: profile error beyond the range of no cutting.
● High-precision, integrated casting workbench, integrated spindle directly connected motor, integrated gas-liquid damping cylinder, T1, T2 heads are located on the integrated guide rail.
● Supports multiple data import modes：Internet, LAN, U disk, Bluetooth, manual input, etc. Can realize the market common optimization software data docking, New gel, changfeng, chuangying
● Environmental protection function, unique chip removal, vacuuming design, vacuuming rate of 70%, clean site, reduce cleaning frequency, improve work efficiency.
●It is equipped with patented rotary lifting bracket to avoid cutting error caused by middle droop, and equipped with movable profile bracket.
● The latest arc cutting technology, sawing section is safer, faster and more reliable.
Product Details
● Mainly used for cutting industrial aluminum profiles, PVC profiles, aluminum doors and Windows, curtain wall materials.
● Operation without skilled workers, solve the factory recruitment difficulties, label printing function, error prevention function: profile error beyond the range of no cutting.
● High-precision, integrated casting workbench, integrated spindle directly connected motor, integrated gas-liquid damping cylinder, T1, T2 heads are located on the integrated guide rail.
● Supports multiple data import modes：Internet, LAN, U disk, Bluetooth, manual input, etc. Can realize the market common optimization software data docking, New gel, changfeng, chuangying
● Environmental protection function, unique chip removal, vacuuming design, vacuuming rate of 70%, clean site, reduce cleaning frequency, improve work efficiency.
●It is equipped with patented rotary lifting bracket to avoid cutting error caused by middle droop, and equipped with movable profile bracket.
● The latest arc cutting technology, sawing section is safer, faster and more reliable.
Power supply | 380v 50hz |
Saw head motor | 2× 3KW/3000r/min |
Working pressure | 0.6～ 0.8MPa |
C Air consumption | 60L/min |
Cutting length | Max5000mm min 280mm(Short cutting function is the shortest 200mm) |
Cutting width | Max 150mm |
Max. Cutting slope | 45°150×170mm 90°150×345mm |
Max. square tube cutting | 150×200mm |
Cutting angle | 45degree 90degree |
Feeding speed | continuously viable 0-4m/min |
Saw blade specification | ø500 × ø30 × 4.4× Z120 |
dimension | 6550× 1300× 1800 mm |
weight | 2000kgs |
Accuracy of repeated fixed length | ≤ 0.1mm |
Allowance of section cutting angle | ± 3’ |
Flatness of cutting profile | ≤ 0.02m |
Roughness of cutting profile | Ra12.5μm |
