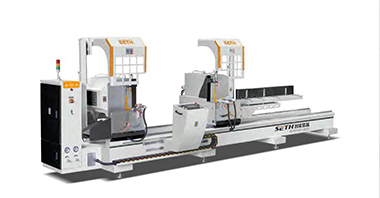

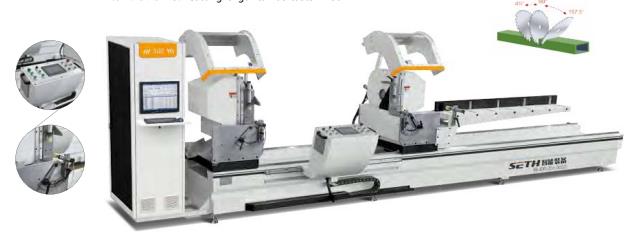

CNC Double-head Precision Cutting Saw for Aluminum Profile

Mainly used for cutting industrial aluminum profiles, broken bridge aluminum doors and windows, curtain wall materials, and also used for cutting and blanking PVC and wood profiles.

The machine adopts numerical control technology, and can complete automatic positioning, cutting and blanking of profiles with different specifications and sizes.

High-quality carbide saw blades for aluminum materials are selected, with an outer diameter of 500, high linear speed and high machining accuracy.

Numerical control transmission adopts high standard gear rack, with high transmission precision, accurate positioning and stable operation.

The  high-precision spindle  makes the saw  blade  rotate stably and effectively improves the surface quality of the workpiece.

Gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.

Adopt micro spray cooling device.

The machine head can rotate automatically, position and clamp in two directions, and can work independently with a single machine head.

Automatically opening and closing the  protective cover,Make the

operation safer.

The saw blade automatically swings at an angle of 45° and 90°, and the protective cover automatically opens and closes, which makes the operation safer.

With the saw blade from back to front, the sawing profile is safer and more reliable, and the sawing height and width are very large.
