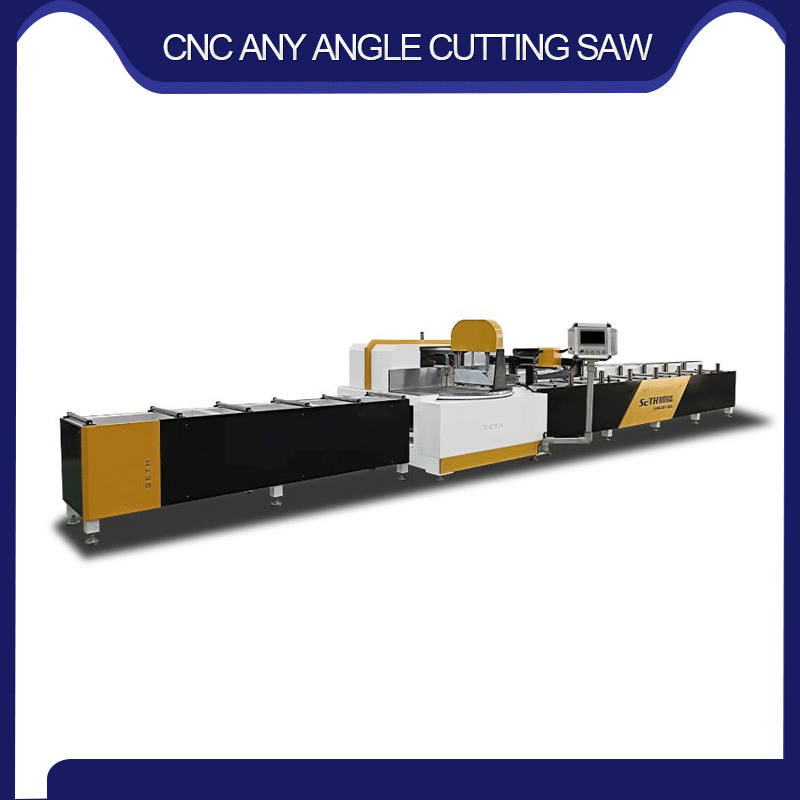

Industrial Aluminium CNC Cutting Saw

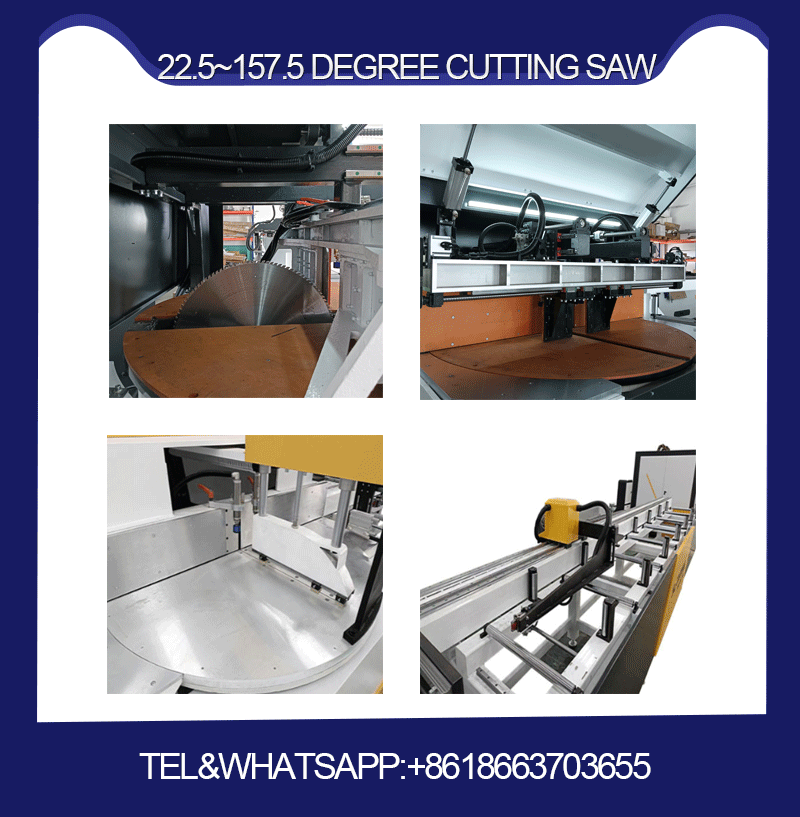

Industrial aluminium CNC cutting saw is mainly used for cutting and blanking of industrial aluminum profiles. The sawing angle can be adjusted arbitrarily between 22.5° to 157.5°.

Contact Now

Product Details

Industrial Aluminium CNC Cutting Saw

Industrial Aluminium CNC Cutting Saw Machine RYJ-CNC-700*13000mm

☆ The servo feeding mechanism can input the dimensions of several profiles to be cut at one time,

enabling continuous cutting of different lengths from 0 to 13000mm, enabling direct input of processing

dimensions, and changing the sawing length without returning to the reference point.

☆ This cnc cutting saw machine adopts CNC technology and can complete automatic positioning, cutting

and blanking of profiles of different sizes.

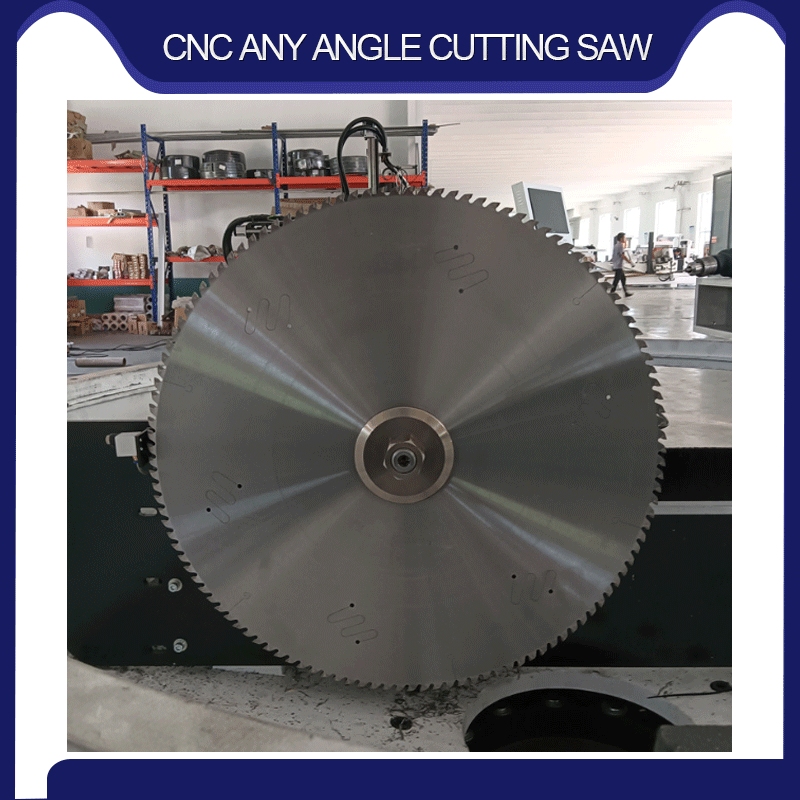

☆ Use special carbide saw blades for aluminum materials, with outer diameter up to 700mm, high line speed

and high processing accuracy.

☆ The CNC transmission adopts high-standard gear and rack, with high transmission precision, accurate

positioning and stable operation.

☆ The high-precision spindle makes the saw blade rotate stably and effectively improves the surface quality

of the workpiece.

☆ There is a saw blade sealing device under the workbench, which has good chip removal effect. It has a

follow-up opening and closing saw cover, which is safe and reliable.

Industrial Aluminium CNC Cutting Saw Machine Specification

Power supply	380V/50Hz
Total Power	18kW
Saw head power motor:	15KW/ 3000r/min
Servo motor:	1+2KW
Working pressure	0.6~0.8MPa
Sawing length:	2L/min
Sawing width:	max 350mm
Sawing height:	max 250mm
Sawing angle:	23°- 157.5°
Feed speed:	Stepless speed adjustment 0-3m/min
Saw blade specifications:	ø700 × ø30 × 5.5× Z100
Profile cutting angle tolerance:	± 3'
Repeated sawing length accuracy:	≤ 0.5mm
Cutting surface roughness:	Ra12.5μm
Dimensions	27000× 2100× 1900 mm
Weight:	6500kg

CNC Cutting Saw Machine Manufacturer

aluminum cnc machine manufacturer.jpg

Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door

machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different

clients, and can also be customized according to customer requirements of different grades of products.

Our company has rich experience in production and more than 10 national patents and passed ISO9001,

SGS,CE certifications,excellent product design and development engineers, skilled production engineers,

experienced production management team and after-sales service that providing you with a strong guarantee.

Except our aluminum CNC double head cutting saw machine,we also have products including aluminum&uPVC

profile machining center,cnc drilling milling machine,welding machine,corner cleaning machine,corner cutting

saw machine,corner crimping machine,punching machine&drilling machine.

Our Aluminum CNC Cutting Saw Machine Delivery

aluminum machine factory.jpg

FAQ:

Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company

in china.

Q: SETH's main products?
A: Aluminum &upvc window machines: CNC cutting center, double miter saw, end milling machine,CNC milling

machine, aluminum punching machine, end milling machine, welding machine,CNC copy router and corner connector

saw, etc;

Wood window machines: wood saw, wood window frame machine,vertical & horizontal drilling machine, dovtail making

machine, wood planner, and tenon making machine, etc.

Q: SETH's after-service?
A: 1option:
We have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,subsidy

USD70 per day.

2 option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
