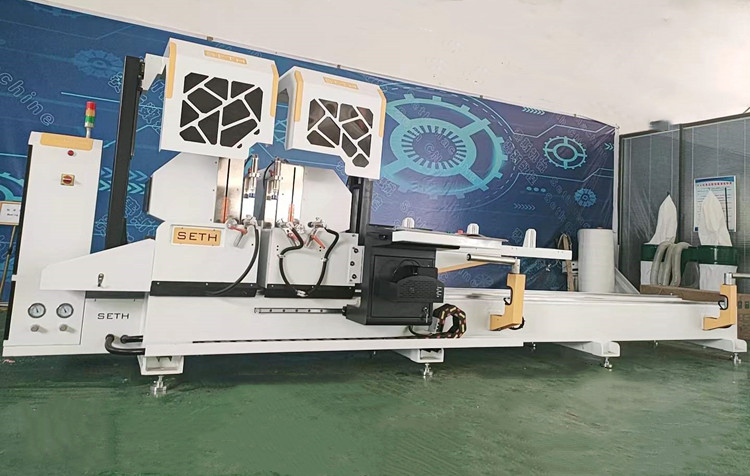

Aluminum CNC Double Head Mitre Saw

Double-head Saw machine is used for cutting aluminum profiles,aluminum window door frame cutting, aluminum curtain wall material and also can cut wood.

CNC(computerized numerical control) technology.

CNC type: WECON/ Schneider/Delta/ Simens

Automatic positioning that can cut aluminum profile with different specifications and sizes.

The main spindle is manufactured by the specialized manufacturer.

The original French Schneider eletric parts.

And the HIWIN Taiwan brand linear bearing motional pair is used to move the head horizontally.

The blade feeding is air hydraulic damping drive with large processing range.

power :380V /50HZ or as clients' requirement

500mm,550mm,600mm diamond saw blade

And the maximum cutting length is 4300mm.

The cutting angle is 45 angle and 90 angles.

The cutting width max.135.00mm

motor 2*3.0kw 2840r/min

Contact Now

Product Details

PLC control double head aluminum profile cutting saw machine window door making machines

Double-head CNC automatic cutting saw is used for cutting of aluminum and PVC/UPVC profile. The cutting saw could

cut 45°and 90°edge, and common type and digital display type available. And different cutting scales could be customized as per requirements.
Functions:
1, cutting of aluminum profile,aluminum window and door ,aluminum curtain wall material and PVC profiles exc.
2, CNC controlling system, achieve various profiles automatic cutting off;
3, Adopt air hydraulic damping cylinder, ensure uniform speed feeding and smooth operation;
4, High accuracy main spindle and saw blade rotate smoothly;
5, Color touching display interface;
6, Feeding system adopts imported linear guide pair, with high accuracy and stability;
7, Optional 45°, 90°and 135°cutting;

8, Functions of 45°/90° ultra short and ultra long profile cutting;
