Upvc Door Window Manufacturing Machine

Model No.: LJZ2-CNC-550*6000

☆ Mainly used for cutting industrial aluminum profiles.

☆ The machine adopts CNC technology.

☆High quality aluminum special diamond /carbide saw blade,

outer diameter up to 550mm-600mm, high wire speed, high processing precision.

☆ Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.

☆ Micro spray cooling device.

☆ Saw blade automatically placed at 45° and 90° Angle

☆ Absolute value servo upgrade memory function.

☆ With printer function, support USB data import function

Contact Now

Product Details

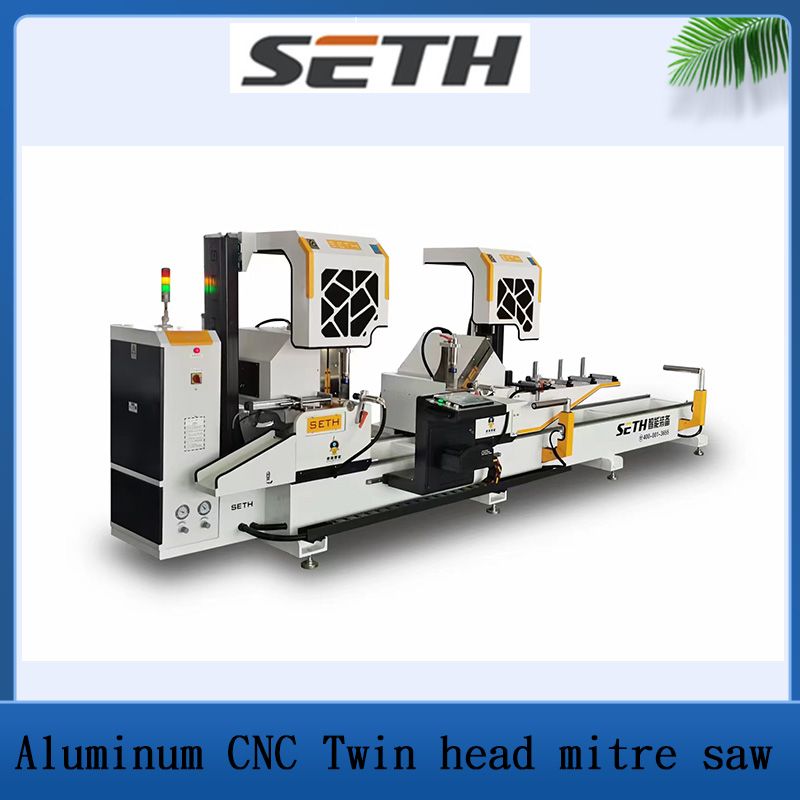

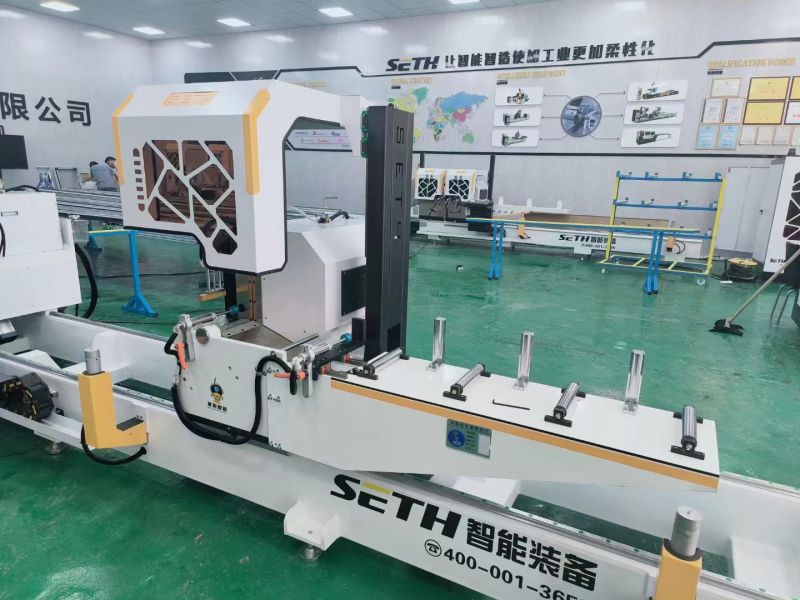

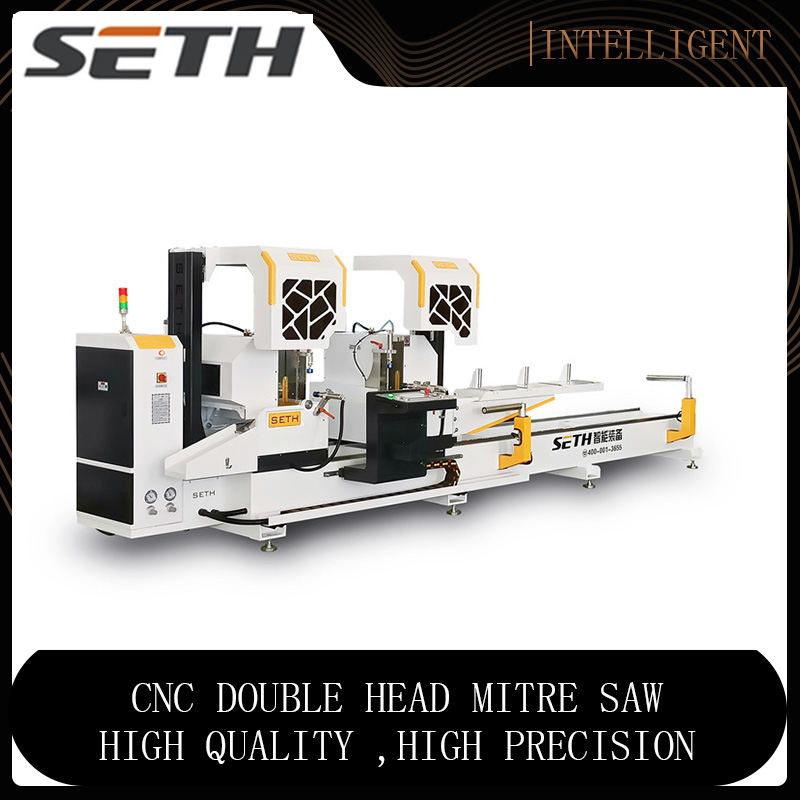

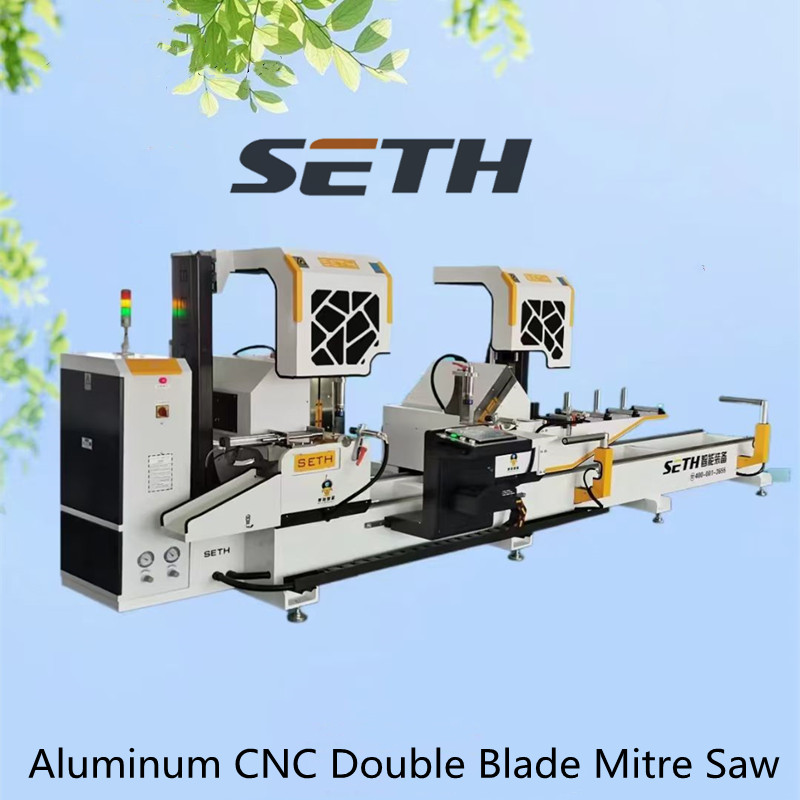

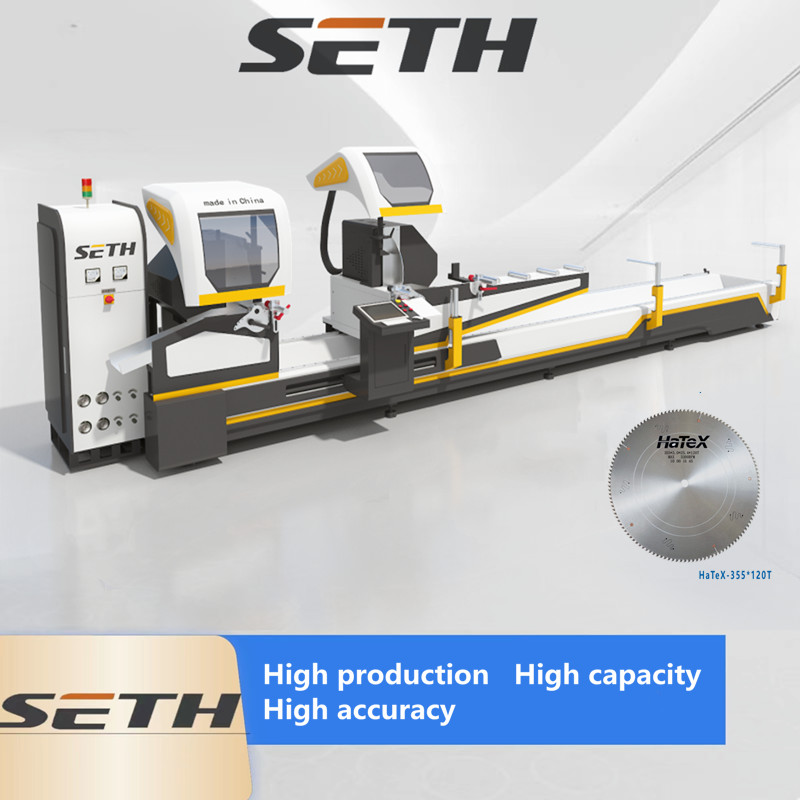

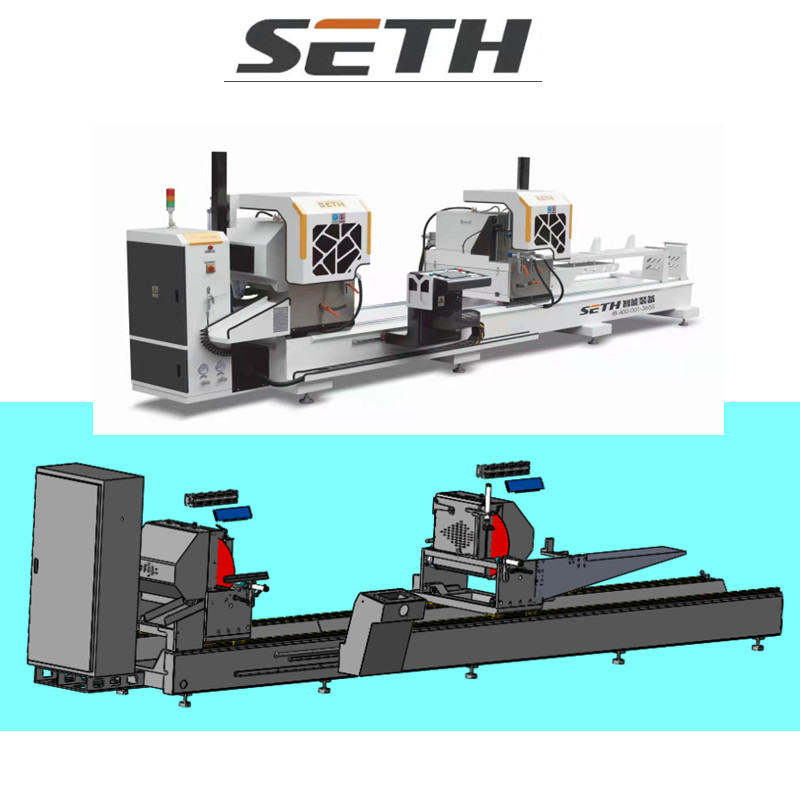

Upvc Door Window Manufacturing Machine cnc double head cutting machine

Feature:

☆ Mainly used for cutting industrial aluminum profiles,aluminum doors and Windows, curtain wall materials,

can also be used for PVC and woodCutting of profiles.

☆ The machine adopts numerical control technology, which can complete the automatic positioning and cutting of different specifications and sizes of profiles.

☆ Selection of high quality aluminum special carbide saw blade, outer diameter up to 550, high wire speed, high processing precision.

☆ CNC transmission adopts high standard rack and pinion, high transmission precision, accurate positioning, smooth work.

☆ The high precision spindle makes the saw blade rotate stably and effectively improve the surface quality of the workpiece.

☆ Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.

☆ Micro spray cooling device.

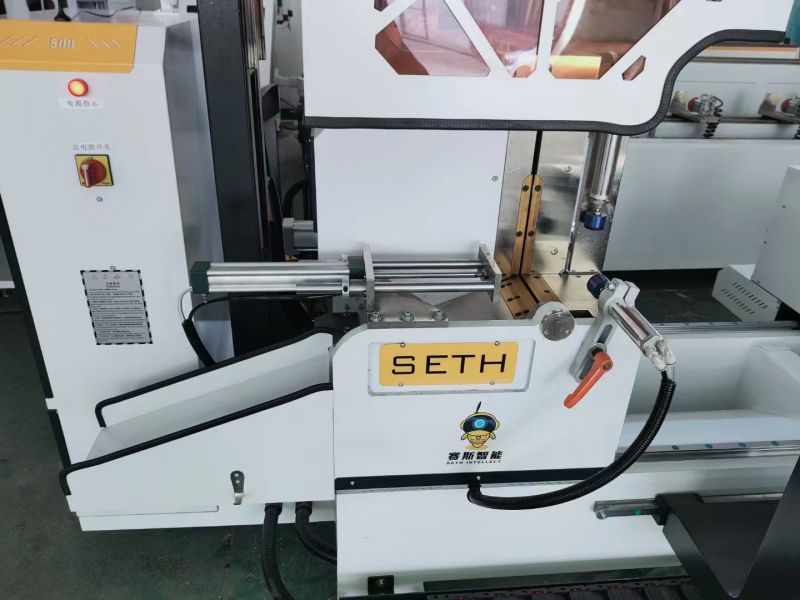

☆ Head automatic rotation, bidirectional positioning, clamping, can work independently. Automatic opening and closing shield,

Make the operation safer.

☆ Saw blade automatically placed at 45° and 90° Angle, automatic opening and closing protective cover, making the operation safer.

☆ Saw blade from back to front, sawing profiles more safe and reliable, and sawing height and sawing width are large.

☆ Absolute value servo upgrade memory function, boot without callback.

☆ With printer function, support USB data import function.

Technical Data:

Power	380V 50HZ
Saw head motor	2×3KW/ 2840r/min
Working pressure	0.6 ~ 0.8mpa
Air consumption	60L/min
Saw length	Max4300mm MIN290mm
Saw width	Max 180mm
Maximum cutting slope	45°180×245mm 90°180×280mm
Sawing Angle	90°, 45°
Feed speed	stepless speed regulation 0-3m/min
Saw blade specifications	ø550 × ø30 × 4.4× Z120
Dimensions	5800×1800×1500 mm
Weight	1900 kg
Repeat constant length accuracy	≤ 0.05mm
Profile cutting Angle tolerance	±3 '
Cutting plane flatness	≤ 0.1m
Roughness of cutting surface	Ra12.5μm
