Aluminum Door Making Machine Notching Cutting Saw

It's mainly used for aluminum alloy profile processing,more suitable for aluminum alloy curtain wall,window material interface processing.

Contact Now

Product Details

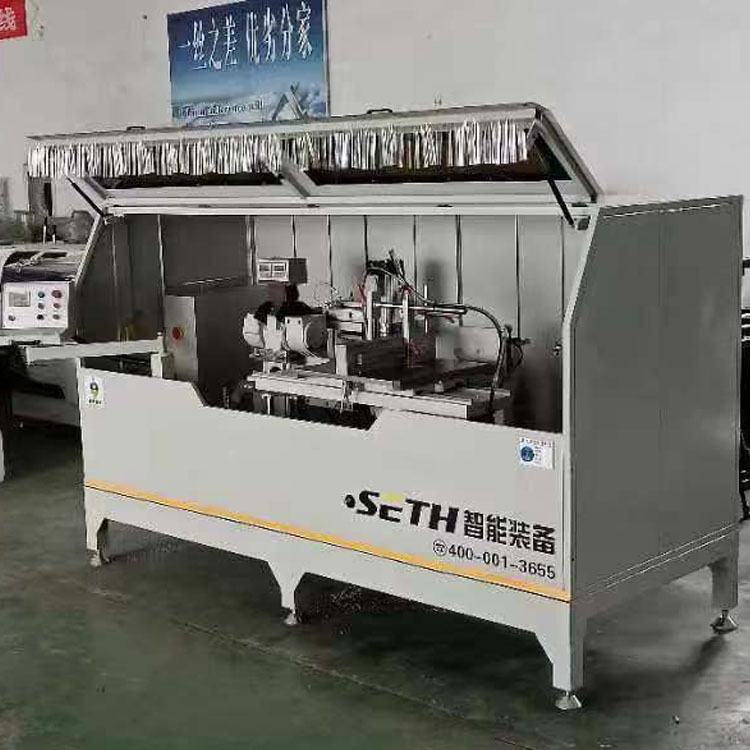

Aluminum Door Making Machine Notching Cutting Saw

It's mainly used for aluminum alloy profile processing,the use of carbide saw blades,diameter up to 22'',high linear

velocity,high machining accuracy.The machine with the Italian Angle display unit and original Italian delicated motor,

thus processing large size range.Precise cutting angle,finish good,more suitable for aluminum alloy curtain wall,

window material interface processing.

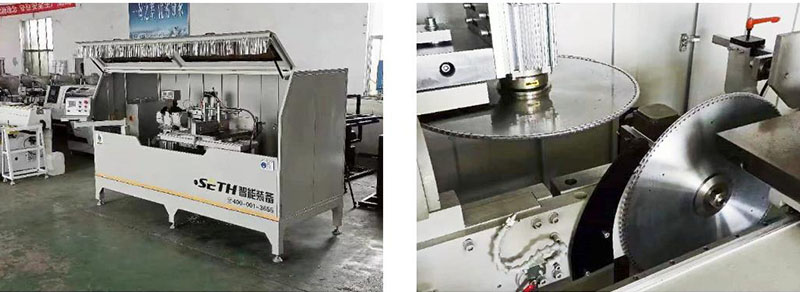

notching cutting saw.jpg

Sawing(width x height) mm	260210mm (90°) ,260146mm (45°)	Blade fade rate	0-3m/min	Working pressure	0.6-0.8Mpa
Main motor power	2*2.2KW	Saw return speed	2-3 min	Operating Voltage	380V
Main motor speed	2840r/min	Saw blades rotating angle	+/- 45°	Dimensions(LWH)	250013001800mm
Use the saw blade size	φ550(φ500)φ30120T	A table can rotate angle	+/- 45°	Machine Weight	1000kg

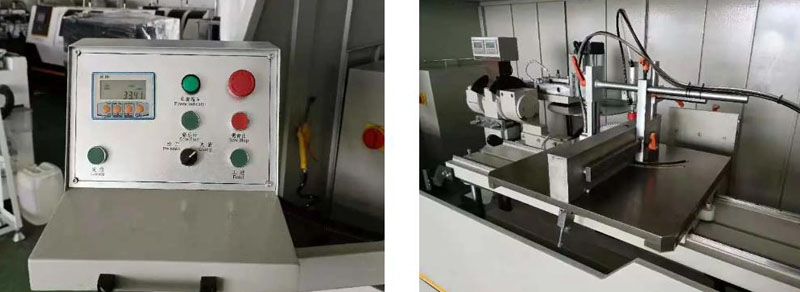

notching cutting saw 1.jpg

Except our aluminum door making machine notching cutting saw,our main products including aluminum&uPVC

profile machining center, cutting center,cutting saw machine,milling machine,welding machine,corner cleaning

machine,corner crimping machine,punching&drilling machine for window,door,curtain wall industry.

aluminum cnc machine factory.jpg

Our Aluminum CNC Machine Packing And Delivery

aluminum machine shipping.jpg

FAQ:

Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company

in china.

Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine,
CNC milling machine, aluminum punching machine, end milling machine, copy router and c
orner connector saw, etc; Wood window machines: wood saw, wood window frame machine,
vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.

Q: SETH's after-service?
A: 1option:
We have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,

subsidy USD70 per day.

2option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
