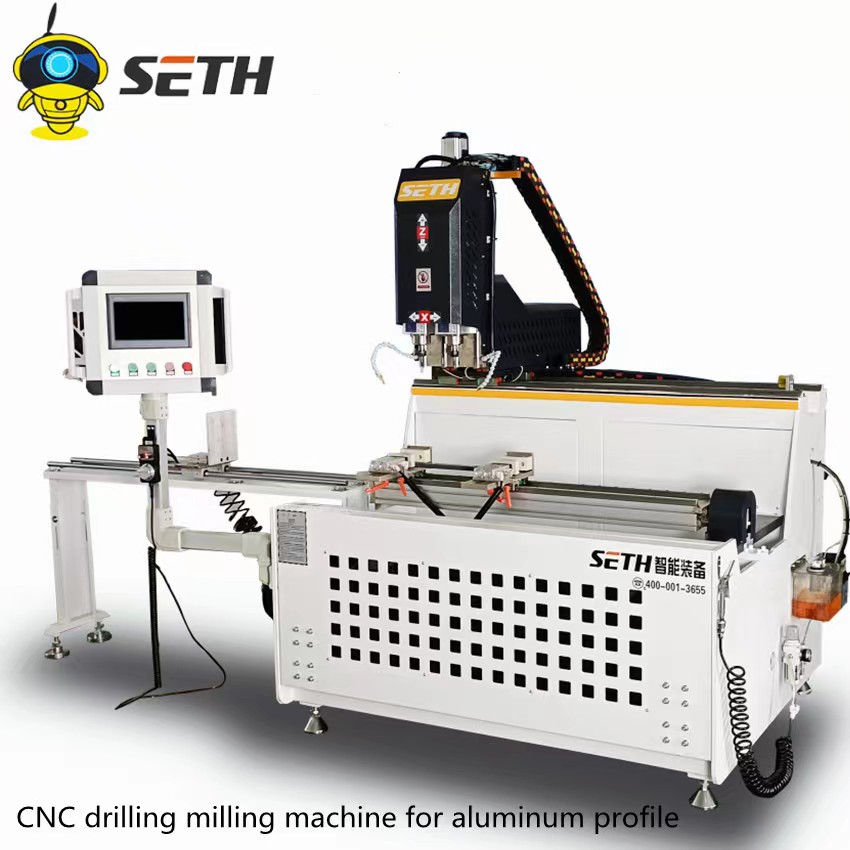

CNC Drilling Milling Machine for Aluminum Profile

CNC drilling milling machine for aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface andother procedure, slotted of industrial aluminum alloy profiles,system doors and windows,curtain walls.

Main spindle adopt air-cooling electric main axis, 3kW power, 0~18000r/min , have the function of high precision, high safety and high reliable.

Contact Now

Product Details

Adopt Taiwan SYNTEC CNC control system. Have professional CADCAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive.

The drive is stable, so can improve the precision of whole machine.

The worktable can overturn 180°-90°~0°~+90°, Clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.

Electric pump oil supply system is adopted, and spray cooling device controlled by system is adopted for cutting tools.

The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.

The main components adopt steel structure and they are all through aging treatment
