3 Axis Cnc Machining Center For Aluminum

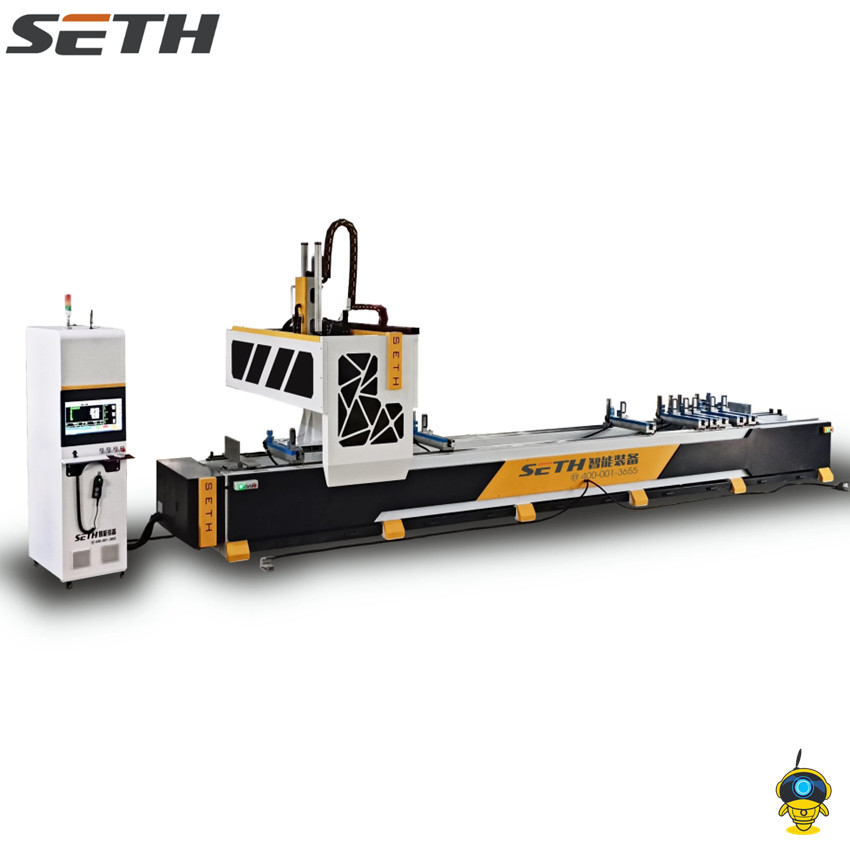

1CNC machining center for heavy industrial aluminum profiles,suitable for high speed machining of thick and thin curtain wall profiles.

2The design target of the whole machine is high-speed and high

precision machining.

3The structure design and power ratio of the whole machine are strengthened, so that the equipment has high-strength bed and moving parts, and the service efficiency is greatly improved.

4 Adopt high speed and high precision motorized spindle.X axis adopts high precision helical gear and rack, Y axis and Z axis adopt high precision ball screw drive.

5 Tool design. Automatic tool changing type, automatic tool changing processing according to the need of the equipment,

6 Main spindle adopt air-cooling electric have the function of high precision, high safety and high reliable.

7Adopt Taiwan SYNTEC CNC control system. Have professional CAD CAM programming software. It can transform processing G code

automatically, have the function of easy operation, high efficiency and lower labor intensity.

8 Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive.The drive is stable, so can improve the precision of whole machine.

9 The worktable can overturn -90°~0°~+90°, Clamping one time profile can realize three faces processing, When processing deeply

hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.

10 Electric pump oil supply system is adopted, and spray cooling device controlled by system is adopted for cutting tools.

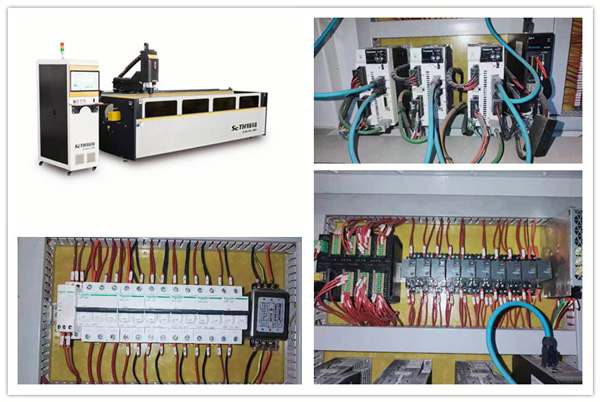

11 The main electrical parts: circuit breakers, AC contactor are all SCHNEIDERbrand.

12The main components adopt steel structure and they are all through aging treatment.
