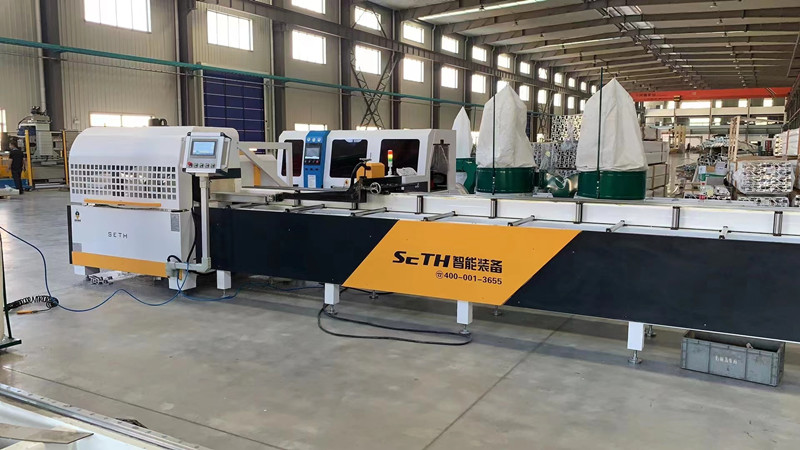

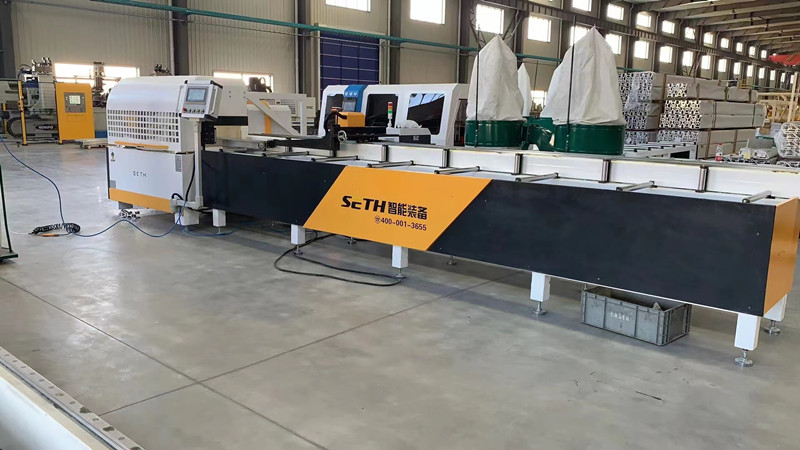

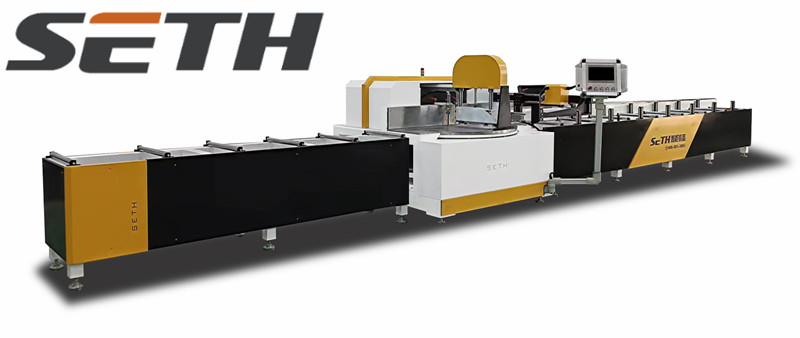

CNC automatic single-head saw

Aluminum profile CNC direct push large section 90° high precision cutting machine parameters:

Mainly used for cutting industrial aluminum profiles, fixed Angle direct push type large cross-section large range of discharge cutting.

The servo feeding mechanism can input the size of several profiles to be cut at one time, achieve continuous cutting of different lengths of 0-6000mm, achieve direct input of processing dimensions, and change the sawing length without returning to the reference point. There is a saw blade sealing device under the workbench, the chip removal effect is good, and the saw hood is operated to open and close, which is safe and reliable.

Power source: 380V 50HZ Total power: 15KW

Saw head motor: 13KW/ 2840r/min Servo motor: 2×1KW

Working pressure: 0.6 ~ 0.8MPa sawing length: 0-6000mm

Cutting width: max 450mm Cutting height: max 230mm

Cutting Angle: 90° Feed speed: stepless speed regulation 0-3m/min

Saw blade specification: ø650 × ø30 × 5.0× Z120 Repetitive cutting length accuracy: ≤ 0.05mm

Profile cutting Angle tolerance: ± 3 'cutting surface roughness: Ra12.5μm

Dimensions: 11000× 2100× 1700 mm Weight: 3300kg
