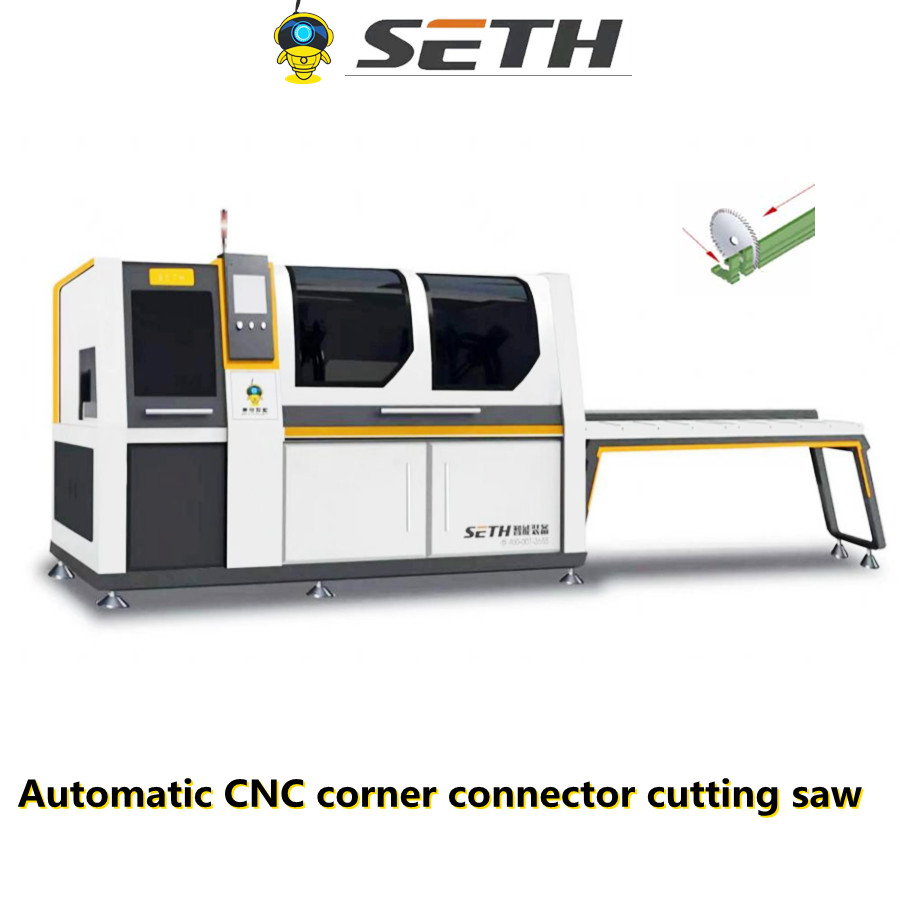

Full automatic aluminum CNC cutting machine for New energy auto parts processing

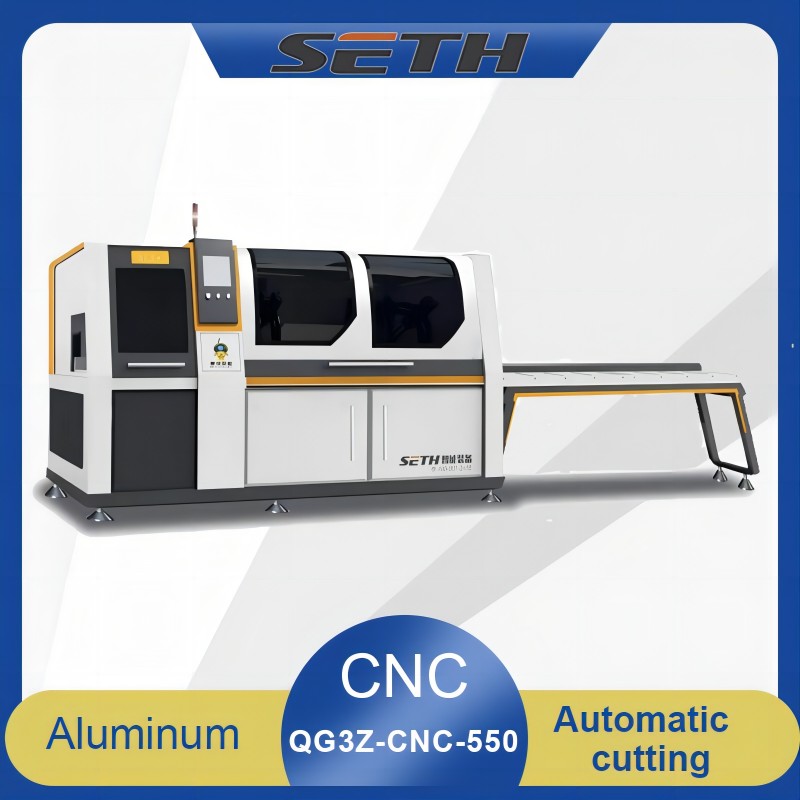

Full automatic aluminum CNC cutting machine

Model:SETHQG3Z-CNC-550

Power: 380v 50Hz

Motor power: 4kw (frequency conversion)

Motor speed: 2000-4500r/min (variable frequency speed regulation)

Working air pressure: 0.6 ~ 0.8MPa

Automatic feeding length: 5 ~ 3000mm

Cutting width: 420 mm

Cutting height: 150mm

Sawing length: No limit when selecting manual

Saw blade feed speed: 0-3m/min (private feed)

Saw blade specification: ø550×ø30×3.8×Z120

Cutting surface flatness: ≤0.01mm

Cutting profile perpendicularity: ≤0.05mm

Cutting surface roughness: Ra12.5μm

Repeatable length accuracy: ≤ 0.05mm

Dimensions: 11200mm×1600mm×1540mm (length × width × height)

Loading rack: 5000mm Main machine: 3700mm finished product

Rack: 2500mm

Weight: 1350kg

Company Introduction：

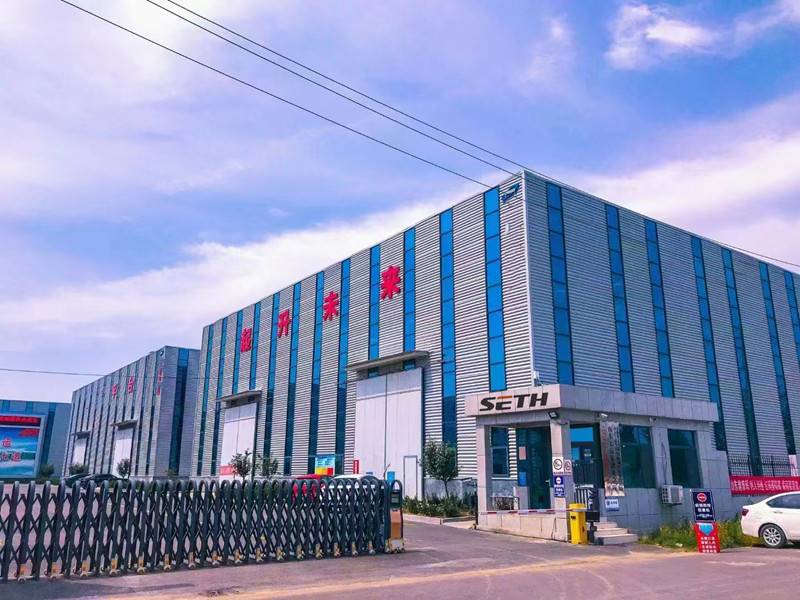

Jinan SETH Intelligent Equipment Co.,ltd. specializing in industrial aluminum profile processing，aluminum curtain wall system processing equipment one-stop solution.

research and development, manufacturing, and sales of the company. The company has two national invention patents, more than ten utility model patents, and has passed the ISO9001 international quality management system certification, SGS China manufacturing certification, EU CE certification, 22 years won the national high-tech enterprise certificate,

science and technology small and medium-sized enterprises. The company is guided by mechanical processing, advanced production equipment, exquisite technology, investment in the introduction of a series of advanced precision machining equipment, equipment processing precision and automation degree is high, processing range is wide, to

ensure the processing accuracy and efficiency of products, fundamentally ensure the reliability and stability of equipment. The company has been engaged in the technical work of the door and window industry for many years, bringing together a number of industry training and several years engaged in the industry marketing services of

the business specialist co-founded. It is the common intention of "to become the most professional manufacturing supplier in the aluminum processing intelligent equipment industry and better serve the industry",

condensing the common knowledge, experience, talent and wisdom, and striving to create excellent equipment quality to ensure user production capacity and use experience. The company has strong research and development force, perfect product system, adhere to independent innovation, brand management, and strive to create professional, high-quality, safe and standardized products. Not only to meet the needs of customers for scale, quality, efficiency, but also

to meet the personalized design and manufacturing needs of customers. The company has always adhered to the corporate philosophy of

"integrity-based * Pioneering and innovation * Excellent in R & D * proficient in intelligent manufacturing", constantly pursuing excellence, constantly surpassing ourselves, striving to achieve leapfrog development,

and creating world-class professional manufacturing suppliers."The pursuit of excellence * strive for perfection * Dedication to serve you"
