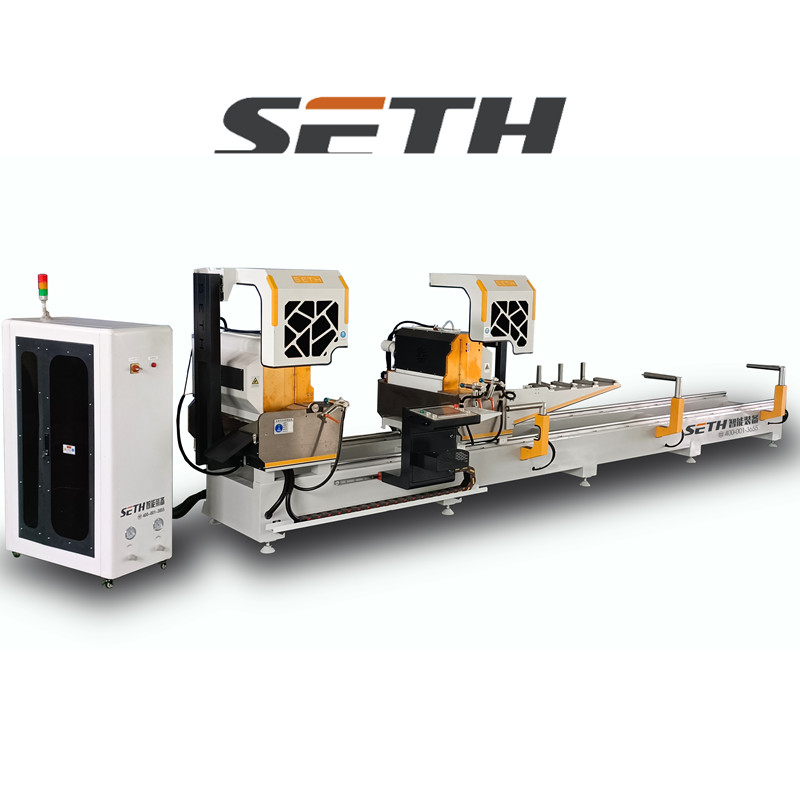

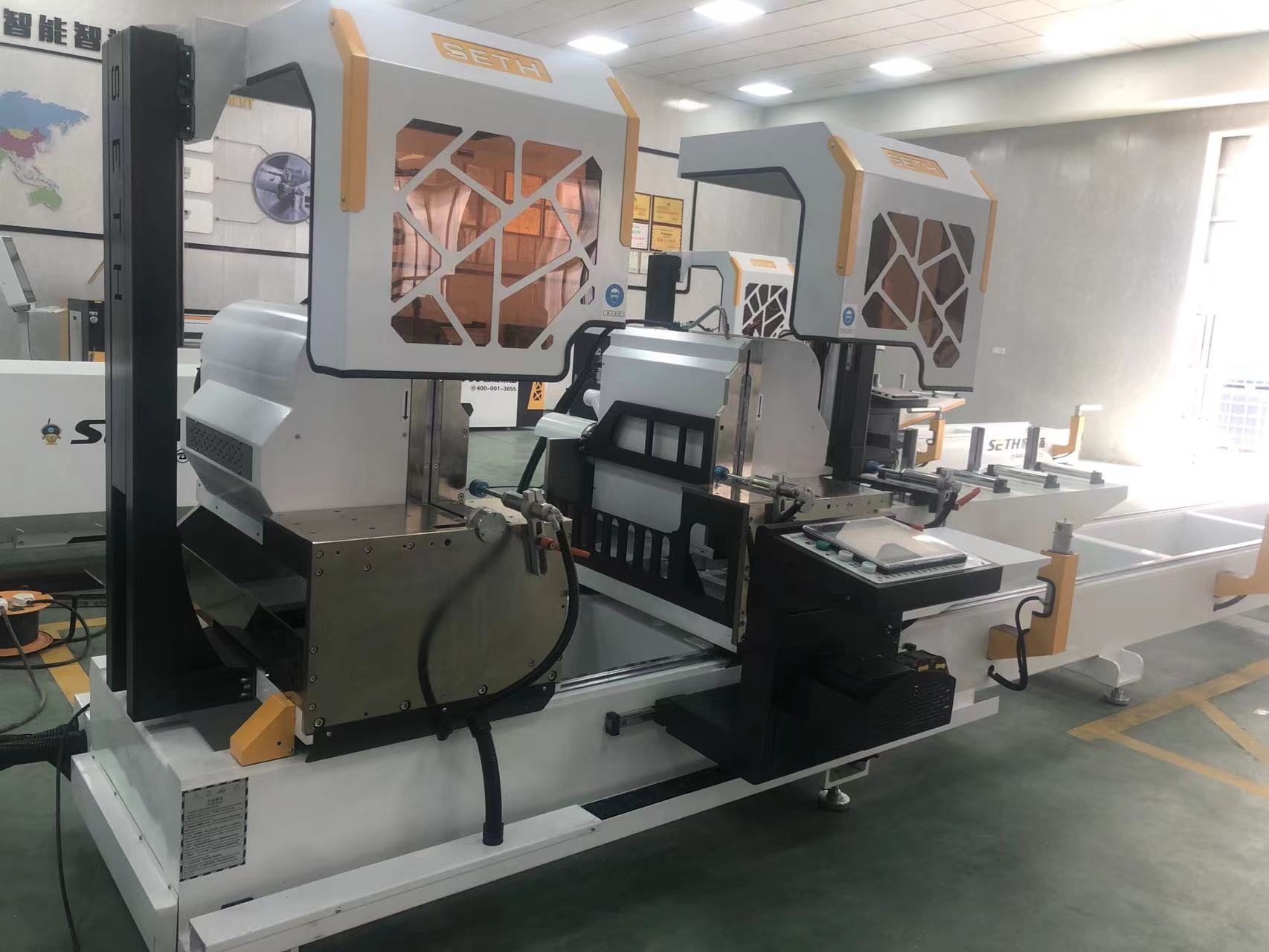

CNC double head precision cutting saw for aluminum profiles at any angle

Can achieve arbitrary adjustment of sawing angle between 45 degrees and 157.5 degrees。High precision, good stability, and high safety factor，The quality is very good。

Contact Now

Product Details

Machine Features

★ Applicable for arbitrary angle cutting of aluminum windows and doors, curtain wall and all industrial aluminum profile

★ Imported servo motor drives the speed reducer, realizing the arbitrary angle adjustment cutting between 45°-157.5°

★ The movable cutting head is driven by imported servo motor gear rack, moving fast, fully close-up control and high precision scaling.

★ Imported motor straightly connect to blade adopting lever-swing cutting mode.

★ Equipped with high quality industrial control computer, supporting external data direct lead-in

★ The blade adopting gas liquid damping transmission, with stable cutting performance.

★ With follow-up cover, working safely and protecting the working environment.

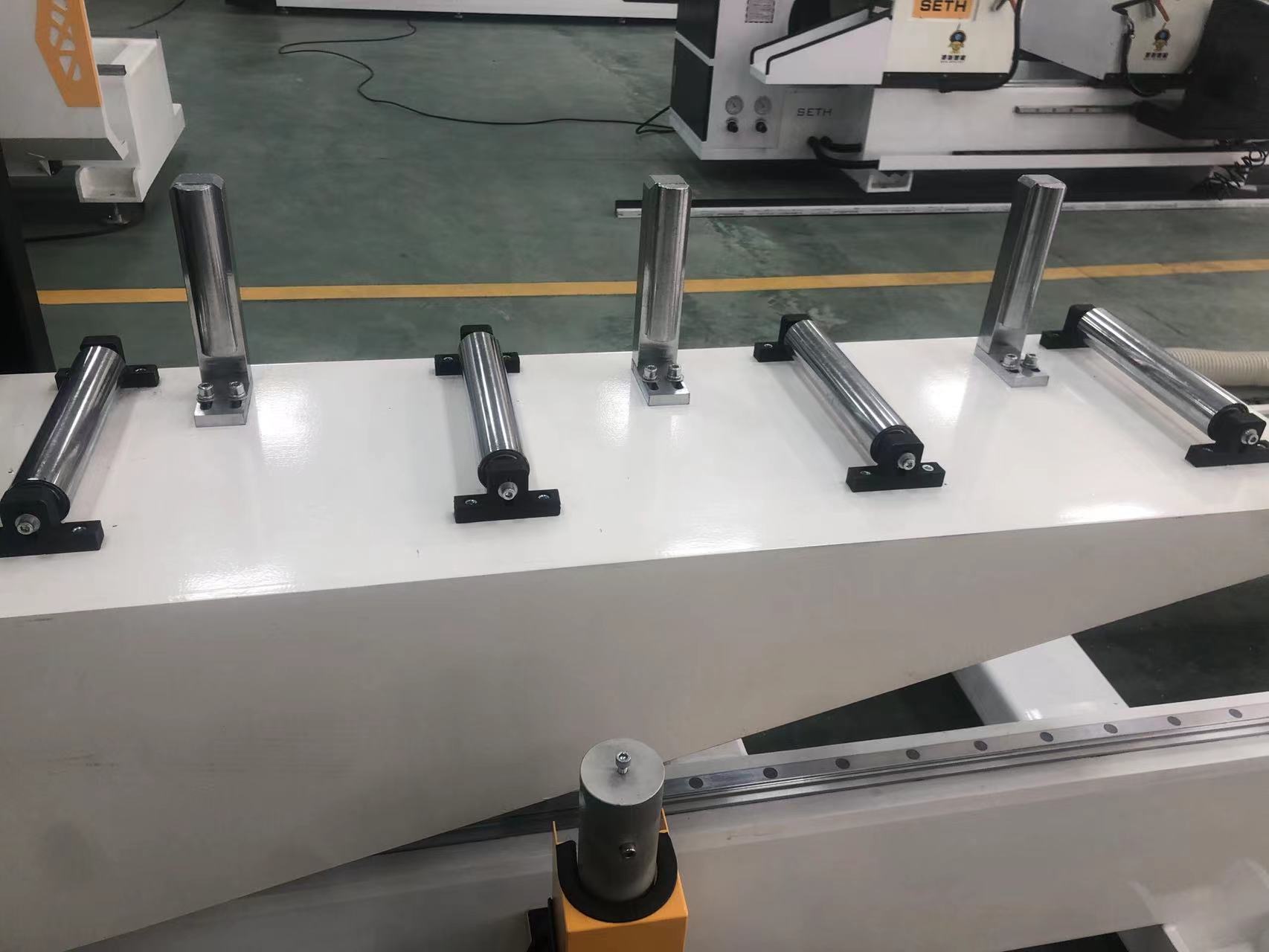

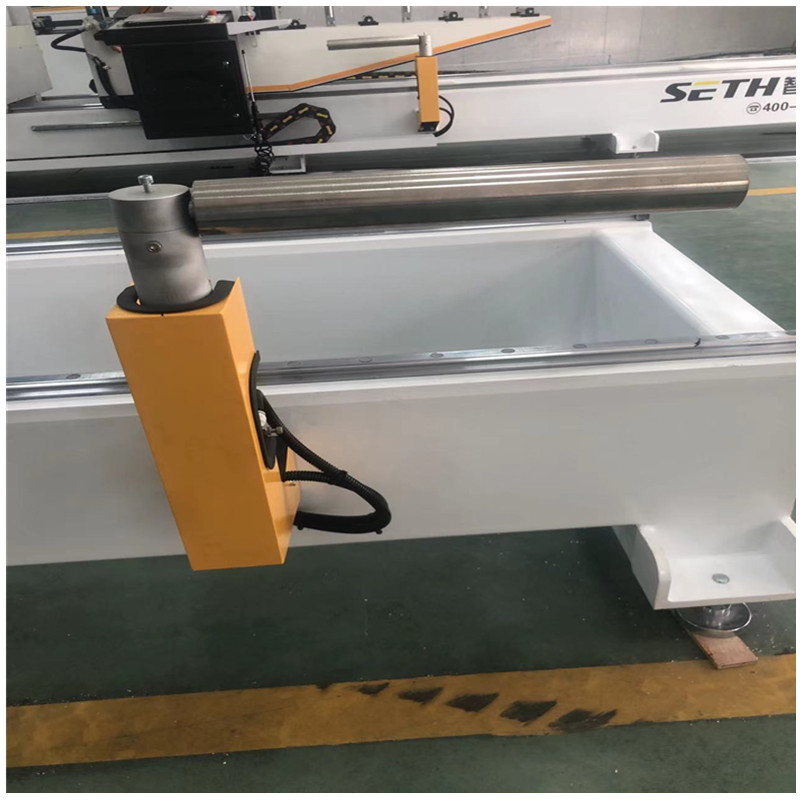

★ With follow-up profile supporter reduce occupying space

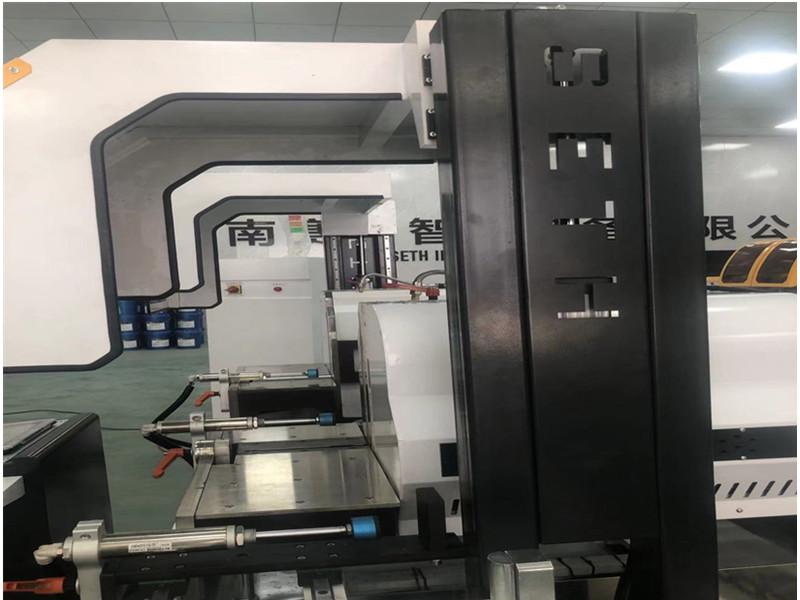

★ There are two cylinders for clamping profiles at each machine head, cutting safely and reliably.

★ Can automatically complete super long or super short cutting function

★ Optional barcode printer, forming digital factory system.

Technical Parameters

Item	Specification
Cutting Motor Power	2*3.0kW 2840r/min
Blade Specification	φ500φ304.4-z120
Cutter Feeding Speed	stepless speed regulation 0~3m/min
Cutter Moving Speed Range	0~20m/min
Cutting Length	360~6000mm at 90°;
Cutting Width	135mm
Cutting Height	230mm
Cutting Angle	45°~ 157.5° Any angle in the range
Working air pressur	0.6~0.8Mpa
Gas consumption	60L/min
Contour Dimention	780015002040mm
Weight	About 2500kgs

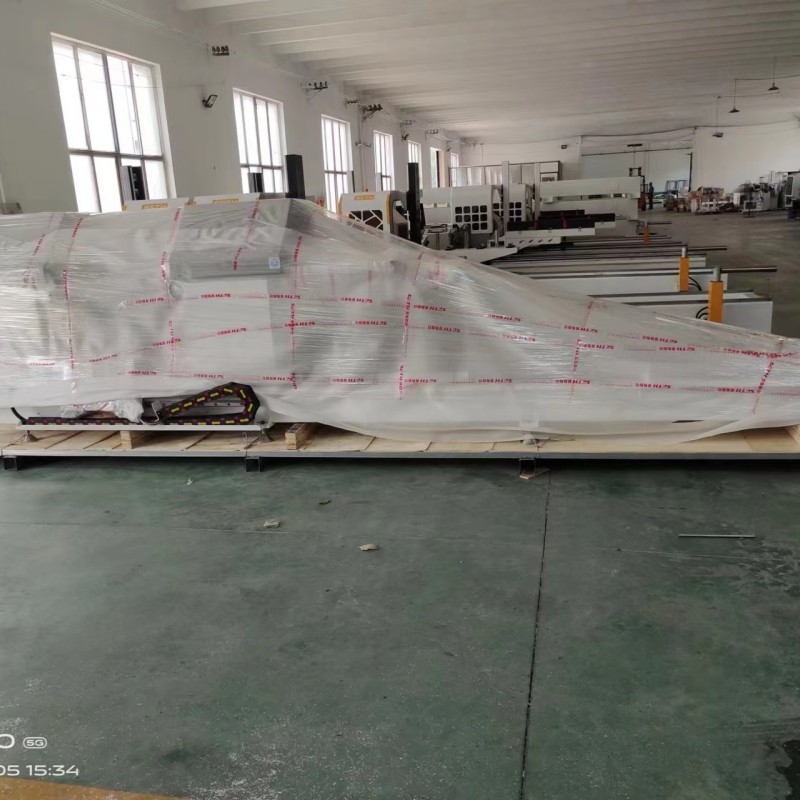

Packaging and shipping
