CNC Drilling Milling Machine for Aluminium Profile

The drive is stable, so can improve the precision of whole machine.

The worktable can overturn 180°-90°~0°~+90°, Clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.

Electric pump oil supply system is adopted, and spray cooling device controlled by system is adopted for cutting tools.

The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.

The main components adopt steel structure and they are all through aging treatment.

Contact Now

Product Details

This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure.

Main spindle adopt air-cooling electric main axis, 3kW power, 0~18000r/ min , have the function of high precision, high safety and high reliable. Adopt Taiwan SYNTEC CNC control system. Have professional CAD- CAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.

Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.

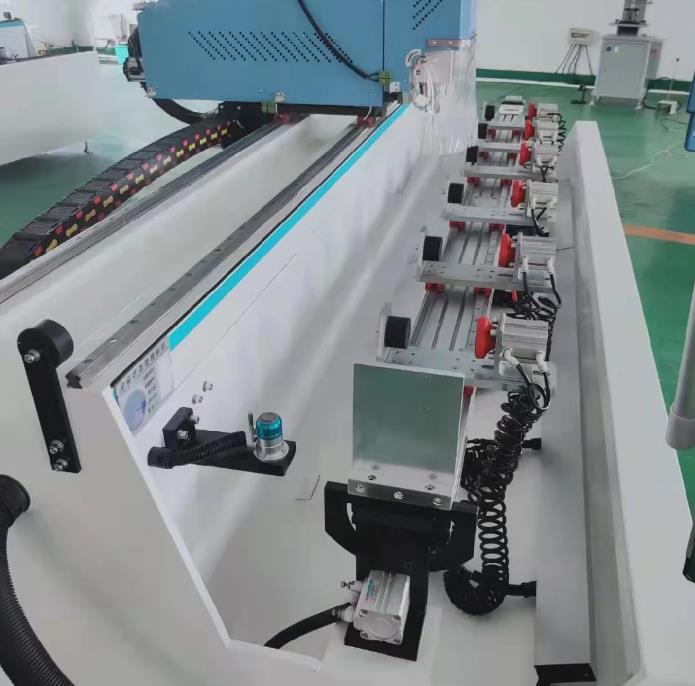

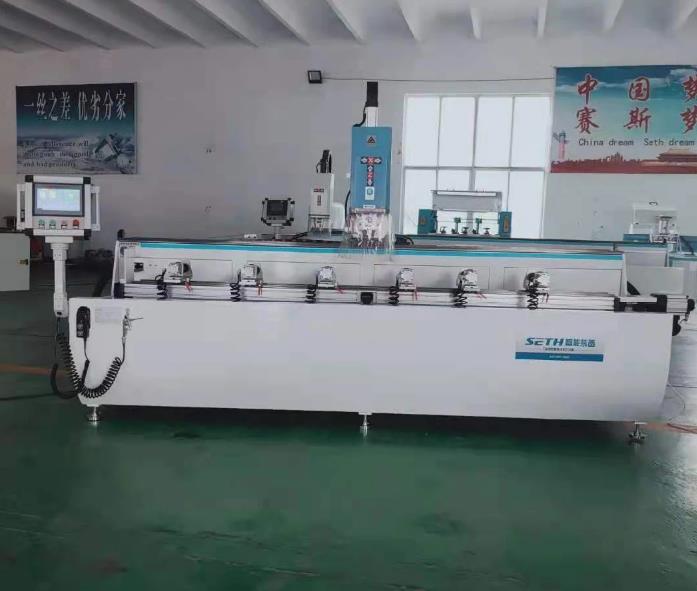

CNC Drilling Milling Machine for Aluminium Profile.jpg

Power supply	380V/50Hz
Air pressure	0.5~0.8MPa
Total power	13.5kW
Main axis power	S6: 9.6kW S1: 8.0kW
Max rotary speed	24000r/min
X-axis longitudinal travel	4000mm
Y-axis transverse travel	640mm
Z-axis vertical travel	440mm
X-axis speed	50m/min
Y-axis speed	15m/min
Z-axis speed	15m/min
Overall dimension	5630×2780×2500mm
Weight	About 2100kg
