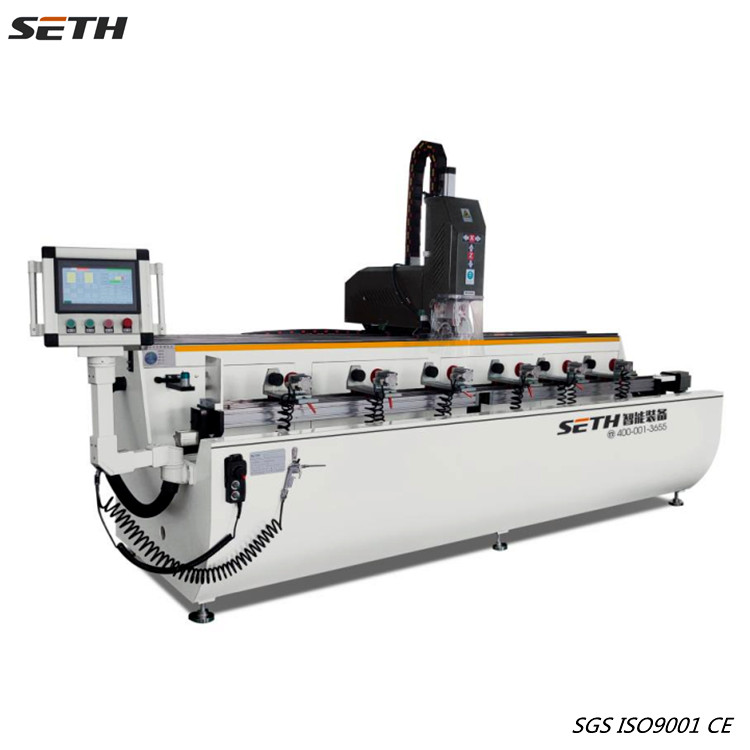

cnc 3+1 aixs drilling milling machine for aluminum profile

1.This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure.

2. Main spindle adopt air-cooling electric main axis, 3kW power, 0~18000r/min , have the function of high precision, high safety and high reliable.

3.Adopt Taiwan SYNTEC CNC control system. Have professional CAD CAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.

4.Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.

5.The worktable can overturn 180°-90°~0°~+90°, Clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.
