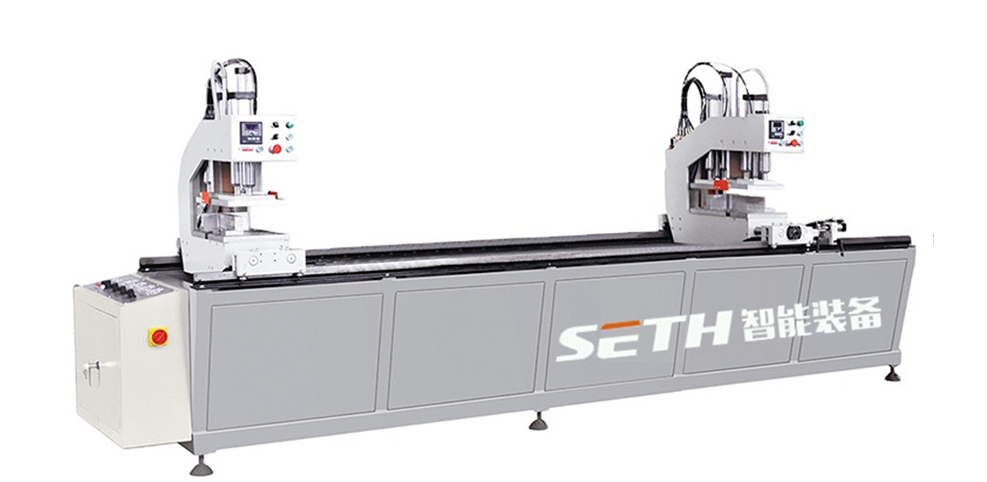

Double Head UPVC Seamless Welding Machine

The machine is made up of 2 machine heads, machine frame, electric control tank and material supporting fame etc.

Can weld and clean the corner at one time.

Specially for the colored profile.
There are fixing mechanism, pressing mechanism, heating mechanism and head box etc.

Product Details

The gadget is made up of two gadget heads, gadget frame, electric powered manipulate tank and fabric assisting repute etc.

Can weld and easy the nook at one time. Specially for the coloured profile.

There are solving mechanism, urgent mechanism, heating mechanism and head container etc. On gadget head.

The gadget is used for PVC window and door welding processing; It can gain the complete welding processing individually.

The movable stand adopts non-oil lubricating bearing and linear ball bearing that make it of high precision, easy operation, and convenient maintenance.
One of the machine heads can be used for welding processing with variable angles; It is also suitable for special shaped window welding like arch window

Specification:

Power supply	220v 50hz 1p
Input Power	3.5kw
Air Pressure	0.5-0.8Mpa
Air Consumption	200L/min.
Welding Pvc Profile Height	20-100mm
Welding Pvc profile Width	120mm
Welding pvc profile length	400-4300mm
Overall Dimension	4300X1000X1700mm
Weight	1800kgs
