Glazing Bead Saw For Pvc Profile

1. used for 45 ° glass glazing bead cutting and the angle milling and cutting.

2. one time could cutting two pieces of glass glazing bead.

3. With measure rulers, It can processing the glazing bead according to the needed size in order to make sure the precision of the processing size and remove the fan frame assembly error.

4. 4 pieces saw blade ensure precise cutting, double cutting one each end to mill the hook foot.

5. Vertical clamping device and special designed cutting jig ensure stable positioning.

6. Furthermore, there is a tiny adjusting device, with which you can adjust the tihgtnesss degree after installing the glazing bead according to need.


  Contact Now
Product Details

Feature

1. used for 45 ° glass glazing bead cutting and the angle milling and cutting.

2. one time could cutting two pieces of glass glazing bead.

3. With measure rulers, It can processing the glazing bead according to the needed size in order to make sure the precision of the processing size and remove the fan frame assembly error.

4. 4 pieces saw blade ensure precise cutting, double cutting one each end to mill the hook foot.

5. Vertical clamping device and special designed cutting jig ensure stable positioning.

6. Furthermore, there is a tiny adjusting device, with which you can adjust the tihgtnesss degree after installing the glazing bead according to need.

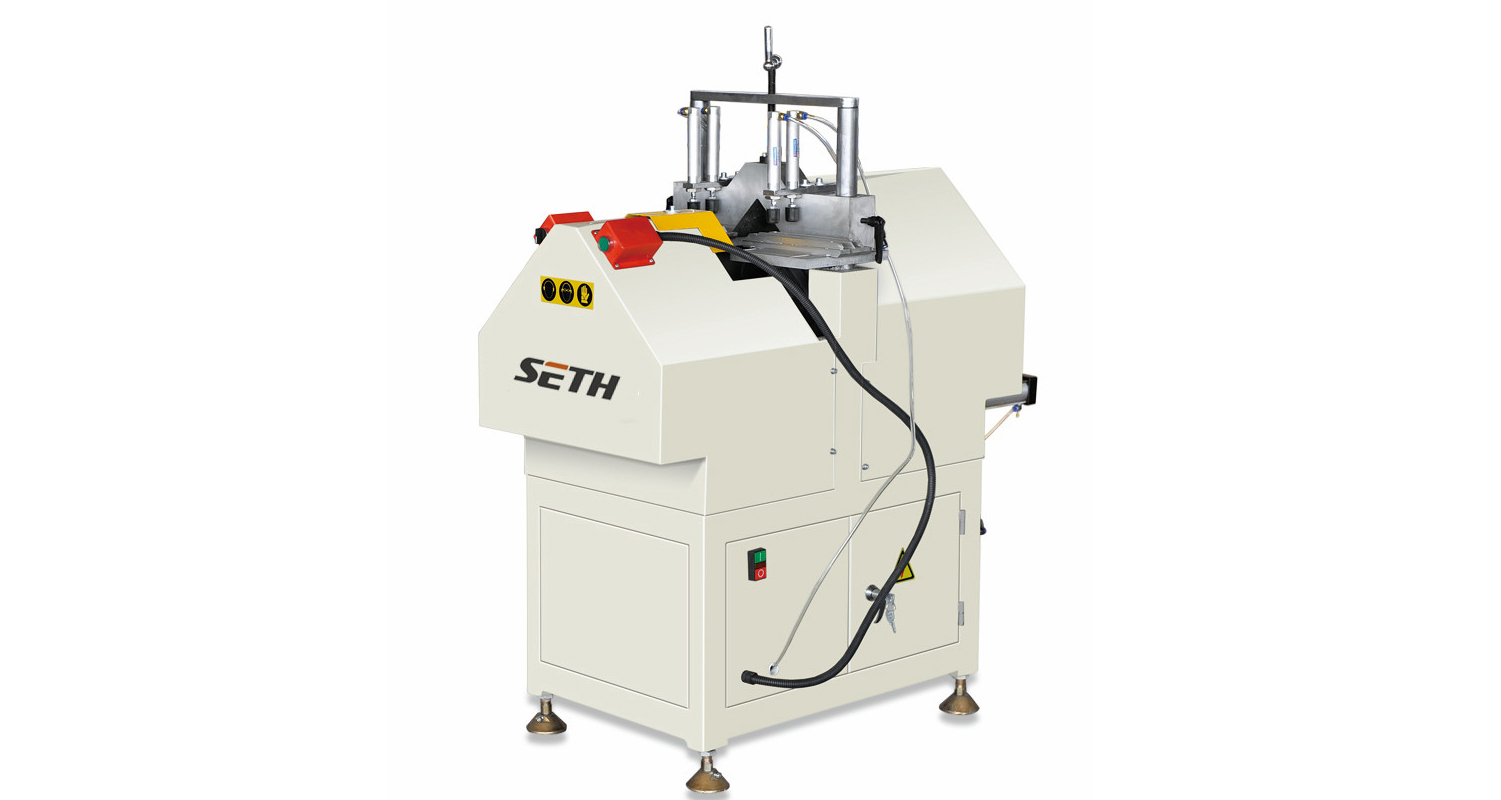

Glazing Bead Saw For PVC Profile

Parameter


Air Pressure

0.4~0.7MPa

Air consumption

80L/min

Input Voltage

380V 50~60Hz or As Customer need

Input Power

2*0. 75Kw

Cutting range

320-1800mm

Cutting Width

120mm

Cutting profile height

29mm

Overall size

1900*700*1350 mm

Weight

300kg
