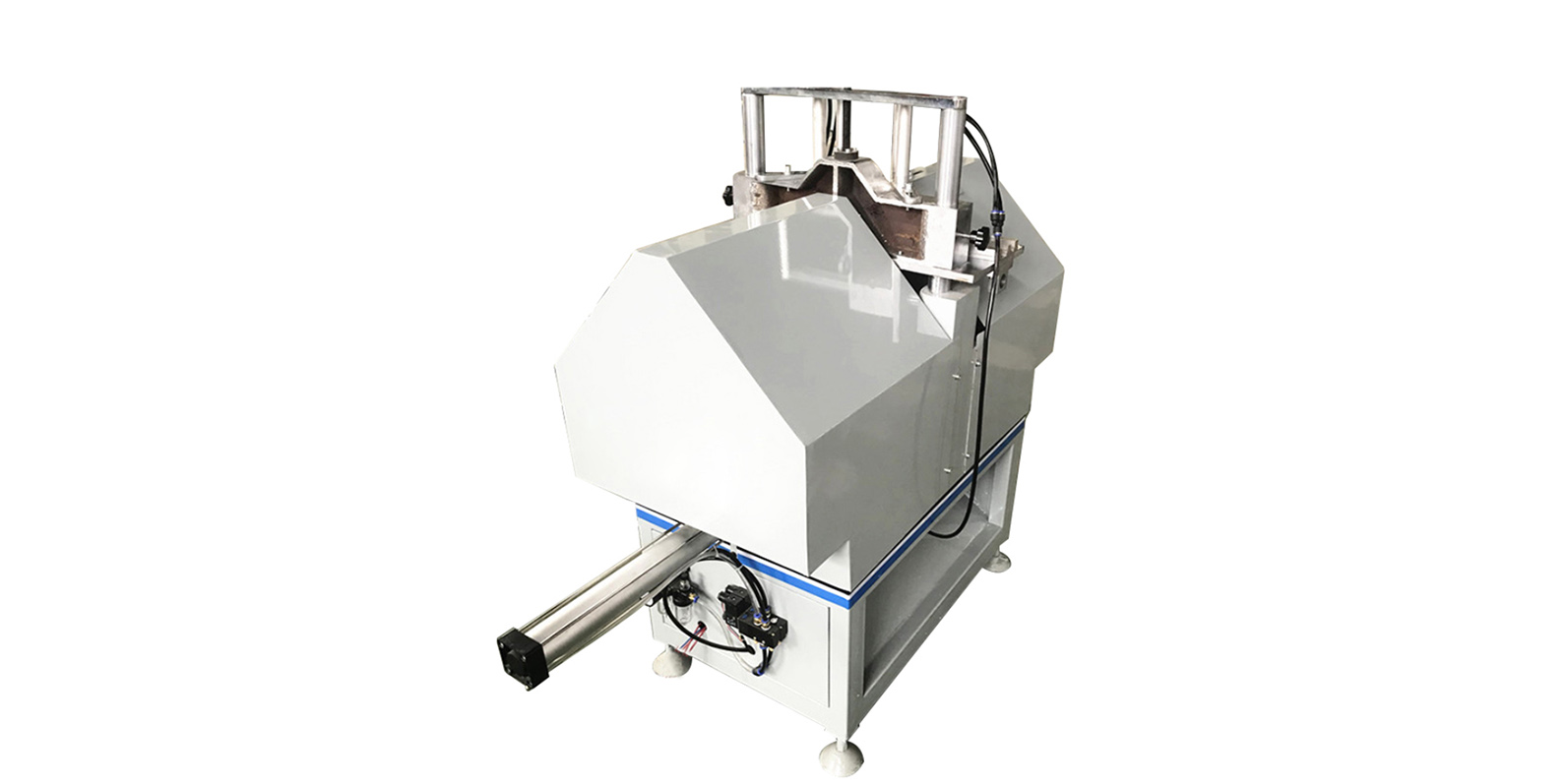

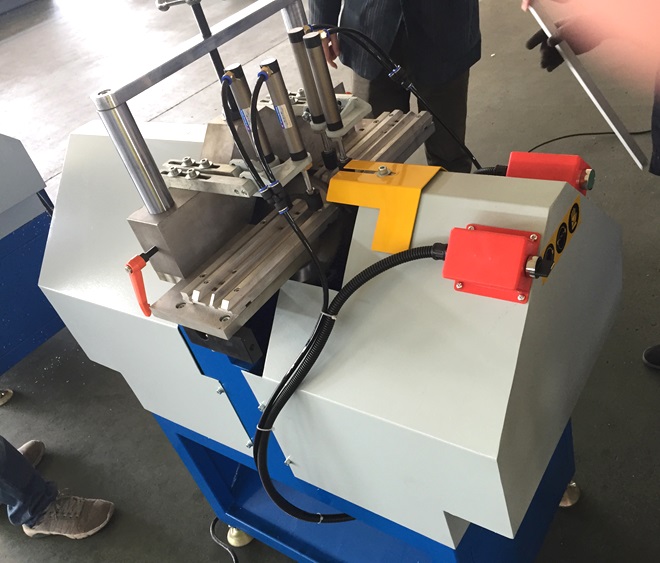

Glazing Bead Saw Machine For Pvc Profile

1. used for 45 ° glass glazing bead cutting and the angle milling and cutting.

2. one time could cutting two pieces of glass glazing bead.

3. With measure rulers, It can processing the glazing bead according to the needed size in order to make sure the precision of the processing size and remove the fan frame assembly error.

4. 4 pieces saw blade ensure precise cutting, double cutting one each end to mill the hook foot.

5. Vertical clamping device and special designed cutting jig ensure stable positioning.

6. Furthermore, there is a tiny adjusting device, with which you can adjust the tihgtnesss degree after installing the glazing bead according to need.

Contact Now

Product Details

Feature

1. used for 45 ° glass glazing bead reducing and the attitude milling and decreasing.

2. one time could slicing portions of glass glazing bead.

3. with degree rulers, it could processing the glazing bead in keeping with the desired length with a purpose to ensure the precision of the processing length and remove the fan frame assembly mistakes.

4. four portions noticed blade make certain specific lowering, double decreasing one every surrender to mill the hook foot.

5. Vertical clamping device and special designed cutting jig ensure stable positioning.

6. Furthermore, there is a tiny adjusting device, with which you can adjust the tihgtnesss degree after installing the glazing bead according to need.

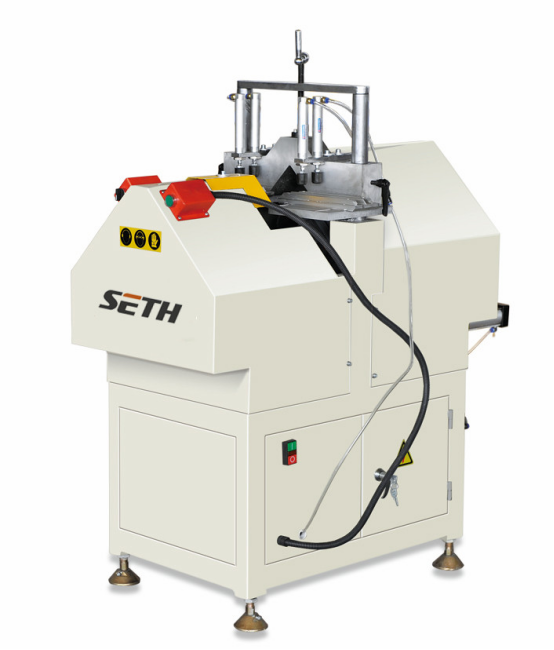

Glazing Bead Saw For PVC Profile

Parameter
Air Pressure	0.4~0.7MPa
Air consumption	80L/min
Input Voltage	380V 50~60Hz or As Customer need
Input Power	2*0. 75Kw
Cutting range	320-1800mm
Cutting Width	120mm
Cutting profile height	29mm
Overall size	19007001350 mm
Weight	300kg
