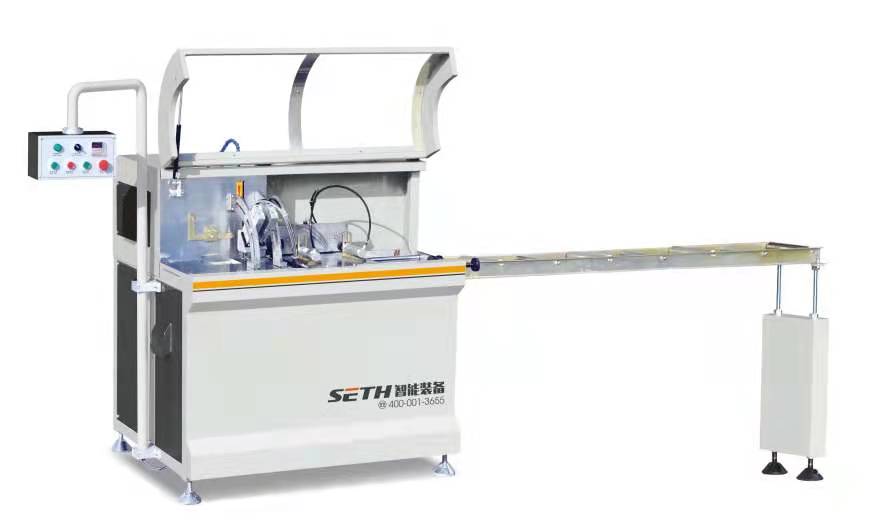

Corner Connector Automatic Cutting Saw For Aluminum Profile

This machine is used for cutting and blanking aluminum door and window corner profiles, with simple operation, reliable performance, advanced technology and easy maintenance. The cutting tool adopts cemented carbide saw blade, which has high

cutting speed, high productivity and high machining precision. The feed motion pair adopts linear motion bearing, which has small motion resistance and high precision. The feeding mechanism adopts automatic feeding system, which is stable and reliable with high efficiency.

Contact Now

Product Details

With high automation, the advance and retreat of clamping and sawing are controlled by pneumatic system, which is convenient to operate, safe and reliable, and has high productivity. With automatic counting function. Continuous cutting of 6-meter angle profile can be realized only by clamping once.

Automatically save the number of cut segments in case of power failure.

Adopt micro spray cooling device to save the processing cost of doors and windows (alternative).

Power supply	380V/50Hz
Power supply	1.5kW
Motor speed	2800r/min
Working pressure	0.6~0.8MPa
Auto feeding length	2~180mm
Cutting width	Max. 120mm
Cutting height	Max. 220mm
Cutting length
Cutting angle	90°
Feeding speed	0~3m/min
Saw blade specification	Ф450×3.8×Ф30 Z=120
Overall dimension	5670×1770×1840mm
weight	450kgs
