Water Slot Miling Machine For UPVC Profile

1. Used for milling all kinds of water slots and air pressure balance grooves,

2. Clamping one time to finish two axis water slot processing

3. With 2 milling heads to meet the different requirements of the processing profile.

4. The length of milling water slot within 60mm is adjustable and its usage range is wide.

5. Independent feeding system and perfect milling quality.

Contact Now

Product Details

Feature

1. Used for milling all kinds of water slots and air pressure balance grooves,

2. Clamping one time to finish two axis water slot processing

3. With 2 milling heads to meet the different requirements of the processing profile.

4. The length of milling water slot within 60mm is adjustable and its usage range is wide.

5. Independent feeding system and perfect milling quality.

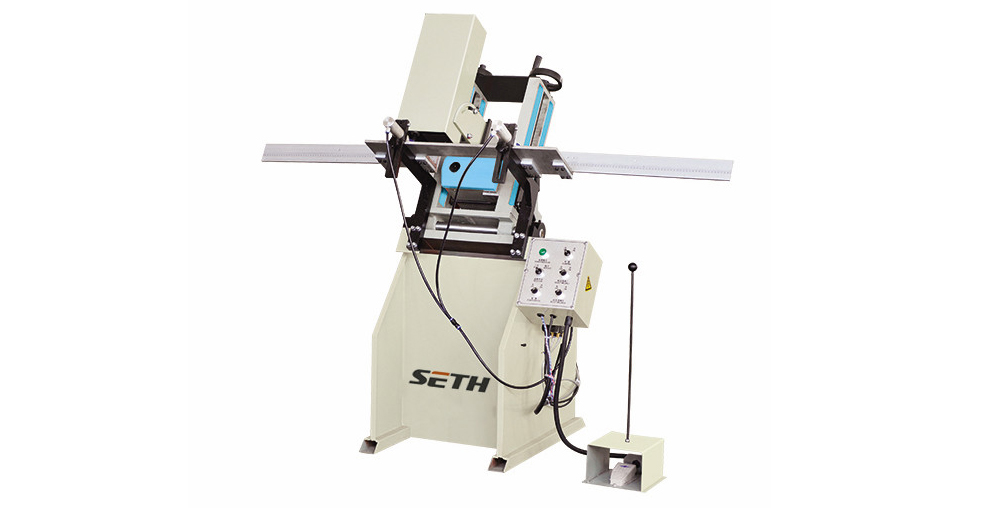

Water Slot Miling Machine

Specification

Power supply	220V 50HZ or customer specification.
Input power	0.38*3 KW
Motor rotary speed	25000r /min
Operation air pressure	0.5-0.8MPa
Milling cutter diameter	Φ5, Φ4
Slot Depth	30m
Slot Length	30-60mm
Overall dimension	1955x750x1600mm
Weight	300kg

Standard accessory

Solenoid Valve	Airtac
Cylinder	Airtac
Motor	Anhui Sanyang
Air Filter Device	STNC
Electrical	Schneider and CHINT
AC Contactor and Circuit Breaker	CHINT
