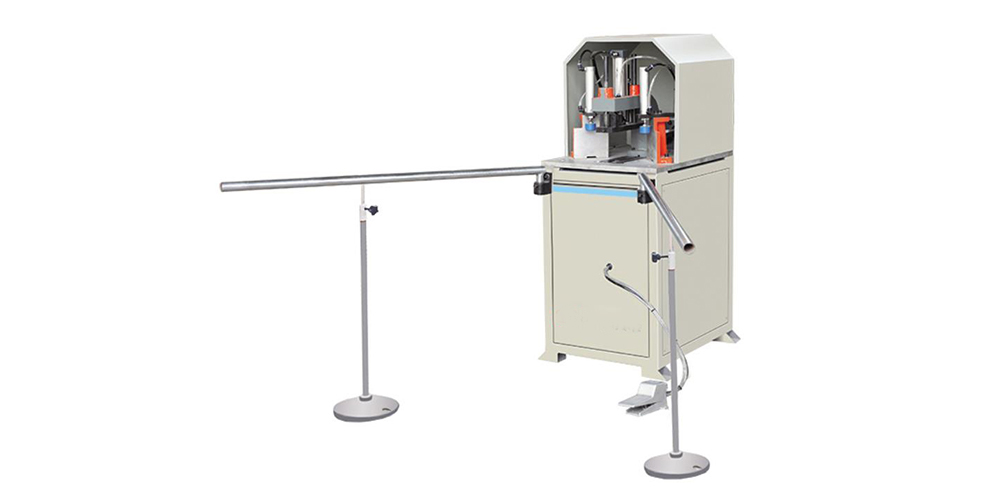

UPVC Window Machine for Corner Cleaning

● Used for cleaning welding corners of plastic doors and Windows.
● Two axis CNC system.
● Servo drive system, NUMERICAL control system, solenoid valve, triplet and other main components are imported famous brand products, reliable performance, long service life.
● Unique internal positioning, to ensure the accuracy of the door and window weld cleaning.

Contact Now

Product Details

Gadget benefits:

● used for cleaning welding corners of plastic doorways and domestic windows.

● axis cnc system.

● servo pressure machine, numerical control device, solenoid valve, triplet and distinct vital components are imported famous emblem products, dependable normal performance, lengthy service life.

● unique internal positioning, to ensure the accuracy of the door and window weld cleaning.

● can hold a variety of specifications of the processing procedures.

● Can realize the arc difference and oblique difference, can ideally meet the needs of all kinds of section profiles to make high-quality doors and Windows.
● Color LCD display Chinese operation interface simple and intuitive operation electronic disk storage space can be stored at the same time more than 200 profile surface processing procedures
● Can be customized according to different profile section of different forces, to meet the requirements of different profiles.

Technical parameters:
Input power supply: 380V/50HZ
Input power: 2.2kW
Main milling cutter speed: 2800r/min
Working pressure: 0.5 ~ 0.8mpa
Gas consumption: 80L/min
Processed profile height: 30 ~ 120mm
Processing profile width: 20 ~ 120mm
Size: 1570×2670×2070mm
