PVC Windows Corner Cleaning Machine

● Used for cleaning welding corners of plastic doors and Windows.
● Two axis CNC system.
● Servo drive system, NUMERICAL control system, solenoid valve, triplet and other main components are imported famous brand products, reliable performance, long service life.
● Unique internal positioning, to ensure the accuracy of the door and window weld cleaning.

Contact Now

Product Details

Equipment advantages:

● Used for cleansing welding corners of plastic doorways and Windows.

● Two axis CNC system.

● Servo power system, NUMERICAL manage system, solenoid valve, triplet and different foremost additives are imported well-known logo products, dependable performance, lengthy provider life.

● Unique inner positioning, to make certain the accuracy of the door and window weld cleansing.

● Can store a variety of specifications of the processing procedures.
● Can realize the arc difference and oblique difference, can ideally meet the needs of all kinds of section profiles to make high-quality doors and Windows.
● Color LCD display Chinese operation interface simple and intuitive operation electronic disk storage space can be stored at the same time more than 200 profile surface processing procedures
● Can be customized according to different profile section of different forces, to meet the requirements of different profiles.

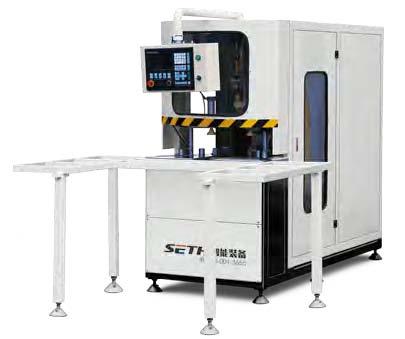

Upvc Window Machine

Technical parameters:
Input power supply: 380V/50HZ
Input power: 2.2kW
Main milling cutter speed: 2800r/min
Working pressure: 0.5 ~ 0.8mpa
Gas consumption: 80L/min
Processed profile height: 30 ~ 120mm
Processing profile width: 20 ~ 120mm
Size: 1570×2670×2070mm

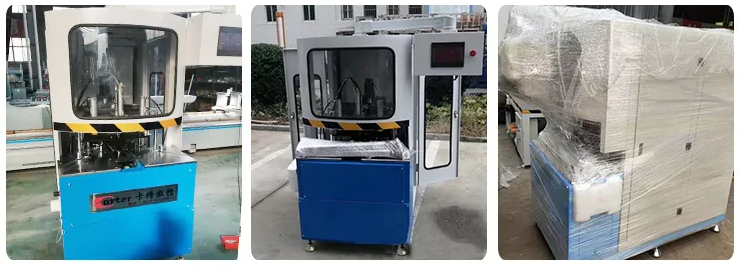

CNC Corner Cleaning Machine
