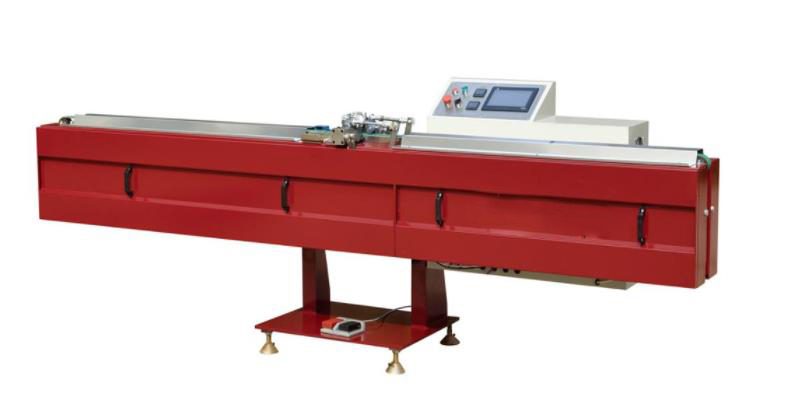

Aluminum Spacer CNC Butyl Coating Machine

We adopt the most advanced technology for the butyl extruder machine;develop with utmost convenient for operation, which increases the production efficiency. Butyl is the key process in insulating glass production, only if the butyl sealing is perfect, you can get the perfect insulating glass. In order to get the proper connection between aluminum frame and glass, precise operation temperature is required. Arc frame sealing is also required for different shape insulating glass.

Technical Parameters

Model : TJJ07

Squeeze Pressure : 10~15 Mpa

Working Speed : 0-35 m / minute

Temperature : 90~150 degree

Adjustable Range : 6-18 mm

Pistons Diameter: 200mm

Air pressure : 0.5-0.8 Mpa

Input Power : 380V 50HZ

Total Power : 4.75 KW

Outside dimension :3000*600*950 mm

Feature of butyl coating machine

European Hydraulic and pneumatic super charging system is adopted for stable performance.

Touching screen control, easy operation.

Transport speeds: 5 speed available.

Arc frame sealing function, which controlled by PLC.

Auto butyl nozzle distance adjustment device.

14KG butyl tank.
