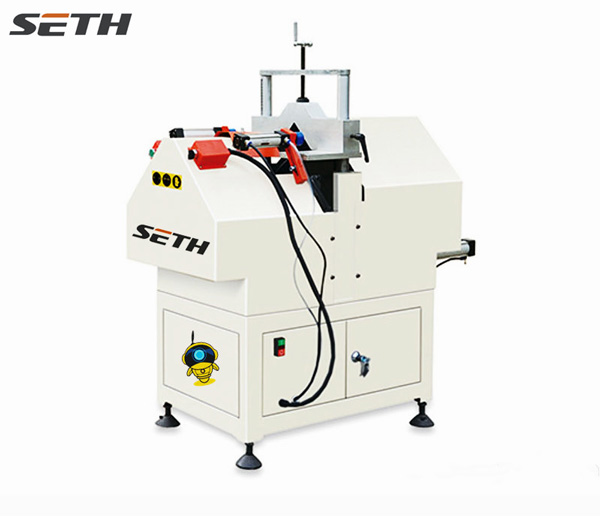

V Cutting Saw

This machine is used for cutting 90° V - shaped groove of aluminum and upvc profile.

LJVW-65 V-shaped saw for aluminum-plastic doors and windows is used to cut 90 ° V-shaped grooves of aluminum-plastic profiles.

The material thickness is 0-120mm and the gate is cut at one time.

It is an ideal equipment for aluminum-plastic doors and windows processing industry.

Main specifications and technical parameters:
Cutting depth: 0-65mm
Cutting thickness: 0-120mm
Saw blade speed: 2800r / min

Feed speed: stepless speed regulation
Saw blade specification: outer diameter Ф 300mm inner diameter Ф 30mm( Ф 40mm)
Gas consumption: 80L / min
Working positioning length: 1700mm
