SETH-BT40/BT50

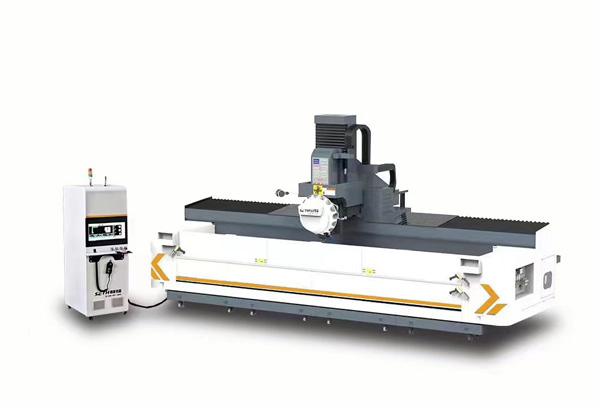

This machine is a CNC profile composite machining center integrating drilling, tapping, milling and chamfering.

Product Details

1. Use international special CNC system;

2. Suitable for processing various lengths of steel, aluminum, copper metal and non-metal;

3. Adopt double cantilever design structure, increase the stability and rigidity of equipment, suitable for heavy cutting, improve the machining accuracy;

4. Adopt large inclined sheet metal organ cover protection;

5. BT40/BT50 spindle taper hole, increase the machine rigidity, processing efficiency, precision, high strength;

6. Models of different specifications can be customized according to customer requirements.

SETH-BT40/BT50

Parameter - PCD
stroke	unit	parameter
X axis	mm	4000-6000（Other lengths can be customized）
Y axis	mm	800/1200
Z axis	mm	600
Main spindle
speed of mainshaft	rpm	10000/20000（BT40）8000rpm （BT50）
taper hole of spindle	/	BT40/BT50
Magazine tool
· Tool changer design	/	· bevelled claw-clutch
· Tool magazine capacity	pcs	12（BT40）/ 6(BT50）
Adjacent tool change time	sec	6
Movement speed
X axis shift	m/min	40
Y axis shift	m/min	30
Z axis shift	m/min	20
X/Y/Z feed speed	mm/min	15000
Motor power
Spindle drive motor	kw	13（BT40）/ 17（BT50）
X driving motor	kw	5.2
Y driving motor	kw	3.1
Z driving motor	kw	3.1
Lubricating cooling system
lubrication system	self-lubrication
cooling system	spray cooling
Accuracy
X axis positional accuracy	mm	0.05（raster 0.01mm）
Y/Z axis positional accuracy	mm	0.02
repeated positioning accuracy	mm	0.01
Machinery specification
Air Pressure	kg/cm²	6
operating system	/	SIEMENS
height	mm	3600
floor space	mm	9500-15500 x 3150 /3700
weight	kg	17000-23000
