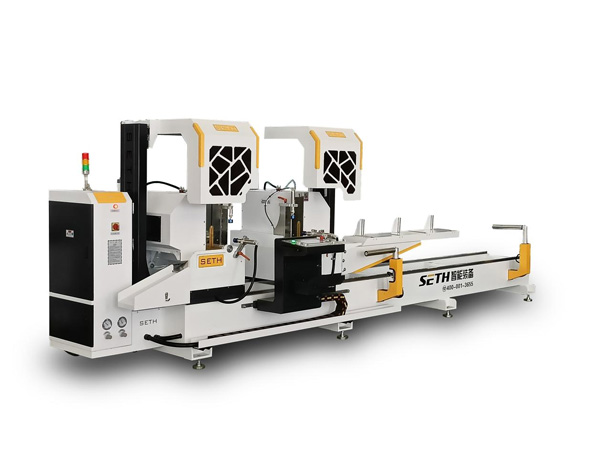

Heavy Duty CNC Double Head Precision Cutting Saw

1. The machine adopts electric control technology, which can complete the positioning cutting and cutting of different sizes of profiles.

2. Right head feed with high screw ball screw movement, high precision, good stability

3. Imported hard alloy saw blade, high cutting quality, long service life, the selection of high-quality aluminum special hard alloy saw blade, high wire speed, moving and feeding device using linear bearing system, to ensure the accuracy of machine operation and cutting, stable performance.

4. The system can automatically calculate according to different profile heights and different cutting angles. The high precision spindle makes the saw blade rotate stably and effectively improve the surface quality of the workpiece.

5. Transmission system adopts imported ball screw, servo motor, high precision, accurate positioning. Head automatic rotation, bidirectional positioning, clamping, single head can work independently. 8. Imported CNC system can realize automatic control, man-machine interface touch window, easy to size, Angle, profile height and other parameters set and modify.

6. Saw blade spindle adopts special high-precision headstock, end face runout and radial runout are less than 0.01mm, saw blade from back to front.

7. Saw blade automatically placed into 45° and 90° Angle, automatic opening and closing protective cover, so that the operation is safer, protective cover safety system, to ensure that personnel safe operation sawing profile more safe and reliable, and sawing height and sawing width are very large. Automatic opening and closing of the protective cover, making the operation safer.
