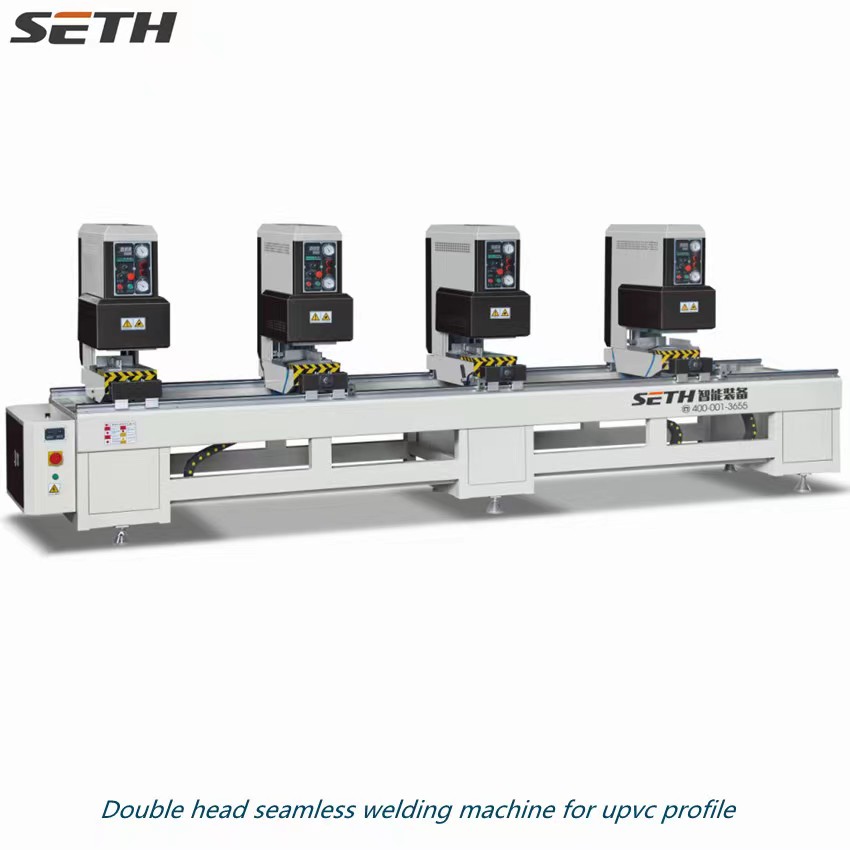

Heads Seamless Welding Machine for PVC UPVC Window Door Making

It is a special machine for welding PVC/UPVC/Plastic /Vinyl doors and windows. It can weld and the combination, programming control and pneumatic driving system are used to achieve the high reliability, easy operation and large processing range, The 4 heads can work individually, simultaneously or combinative.

Contact Now

Product Details

1,Special designed for welding color PVC profile, no need corner clearance after welding.

2,Adopt programmable logic controller (PLC) ensures the machine running more stable and reliable.

3,Double pressing function ensures higher welding strength.

4,The pressure of front and back clamper is adjusted separately, so as to improve the planeness of the welding corner

5,The heads are operated individually, together.

6,No. 2,3,4 head can move horizontally, so that realize various kinds of welding combination.

7,The fourth head can be used for welding variable angle with the special mold and the angle range from 30°~180°.

Heads Seamless Welding Machine for PVC UPVC Window Door Making

Power	380V/50Hz
Air Pressure	0.6-0.8MPa
Rating Power	4.5kw
Welding Width	120mm
Welding Height	25-120mm
Welding Range	435-4300
Air Consumption	280L/Min
Weight	1750kgs
CNC system	DELTA
Electric parts	Schneider
Air cylinder	AirTAC
Solenid valve	AirTAC
