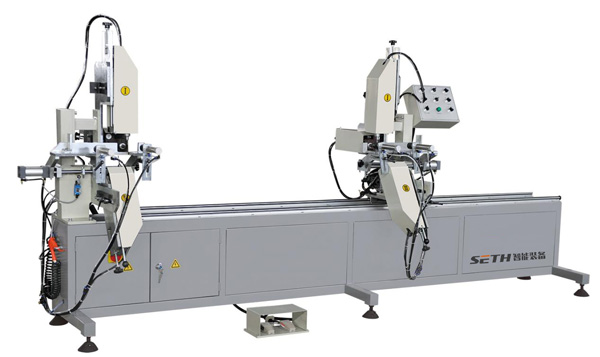

Double Head Automatic Aluminum Water Slot Milling Machine

 Aluminum-plastic profile double-head water tank milling is a special processing equipment for processing plastic door and window profile drainage grooves and air pressure balance grooves.


  Contact Now
Product Details

1.  The equipment has four milling heads that can work independently, of which double-head linkage and single head can be realized Work independently.

2. The four milling heads can be operated individually or in conjunction with each other, and can be freely selected according to the needs of the work.

3.  The processing of the drainage groove and the air pressure balance groove can be completed by clamping the profile once.

Double Head Automatic Aluminum Water Slot Milling Machine

Input power

220v/50Hz

Power input

6kw

Air consumption

30L/min

Rotation speed

24000r/min

Milling slot length

30-60mm

Milling slot width

4/5/6mm

Number of head motors

2

Air pressure

0.5-0.8Mpa

Weight

230kg

Szie

2400x1100x1650mm
