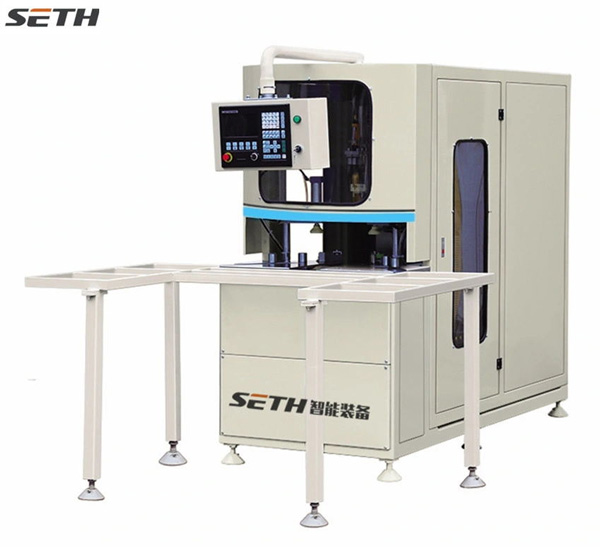

Corner Cleaning Machine

Unique internal positioning, to ensure the accuracy of the door and window weld cleaning.

● Can store a variety of specifications of the processing procedures.

● Can realize the arc difference and oblique difference, can ideally meet the needs of all kinds of section profiles to make high-quality doors and Windows.

● Color LCD display Chinese operation interface simple and intuitive operation electronic disk storage space can be stored at the same time more than 200 profile surface processing procedures

● Can be customized according to different profile section of different forces, to meet the requirements of different profiles.

Technical parameters:

Input power supply: 380V/50HZ

Input power: 2.2kW

Main milling cutter speed: 2800r/min

Working pressure: 0.5 ~ 0.8mpa

Gas consumption: 80L/min

Processed profile height: 30 ~ 120mm

Processing profile width: 20 ~ 120mm

Size: 1570×2670×2070mm
