CNC Drilling Milling Machine for Aluminum

It is suitable for industrial aluminum alloy profiles, doors and Windows, curtain wall aluminum alloy profiles round holes, slot holes, keyholes, special-shaped holes, and aluminum profiles milling, chamfering, plane engraving and other processes.The main shaft adopts air-cooled motorized spindle with power of 3.5kw and speed of 0 ~ 18000rpm. It has high precision, good safety and high reliability.

Contact Now

Product Details

CNC system is adopted. Equipped with professional CAD-CAM programming software. Automatic conversion processing G code, simple operation, high efficiency, low labor intensity.

All motion pairs are imported guide rails and sliding blocks. X axis is driven by high-precision helical gear and helical rack. Y axis and Z axis are driven by high-precision ball screw. Smooth transmission, effectively improve the accuracy of the whole machine.

Table flipped 180 degrees. -90 degrees ~ 0 degrees ~ +90 degrees, a profile clamping can achieve three surface processing

When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the table to improve efficiency and good quality.

Adopt manual pump oil supply system, tool adopts system control spray cooling device. The main electrical parts, circuit breakers, AC contactors are made of Schneider products. The main parts of the machine tool are made of steel structure after aging treatment.

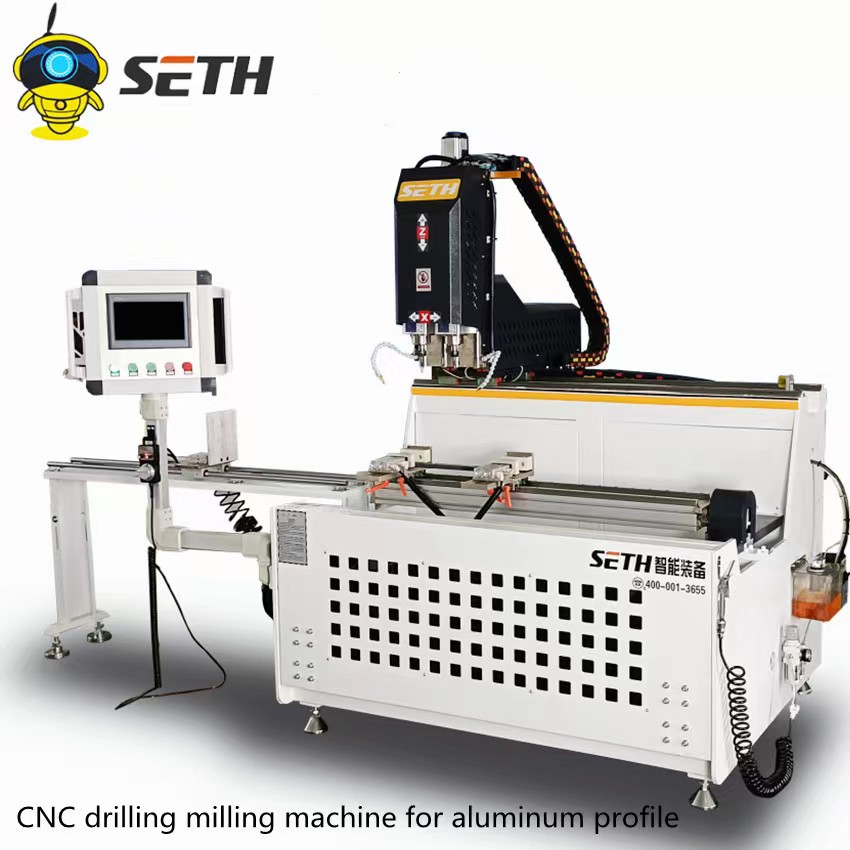

CNC Drilling Milling Machine for Aluminum

Parameter：

Power supply	380V 50Hz
Total power	6.5Kw
Motorized spindle power	S1: 3.5kw
Work pressure	0.6～0.8MPa
Max. speed	18000rpm
X axis travel	1200mm
Y axis travel	500mm
Z axis travel	350mm
X axis speed	50000mm/min
Y axis Z axis speed	15000mm/min
dimension	2200x1600x2200mm
weight	850kg

Standard configuration:

Item	name	brand	origin
1	auto-circuit breaker	Schneider	France
2	phase sequence protection relay	Schneider	France
3	a.c. contactor	Schneider	France
4	switching power	Schneider	France
5	relay	Schneider	France
6	Low pressure switch button	Schneider	France
7	terminal	Honeywell	USA
8	motor	Semic	Italy
9	proximity switch	Autonicus	Korea
10	guide rail	HIWIN	Taiwan
11	screw	ABB	Taiwan
12	solenoid valve	Airtac	Taiwan
13	numerical control system	E-code technology	shenzhen
14	touch screen	Kunlun tongtai	shenzhen
17	transducer	aerfa	shenzhen
18	High flexibility wire and cable	Yongheng	JIangsu
19	air cylinder	Baidi	shandong
