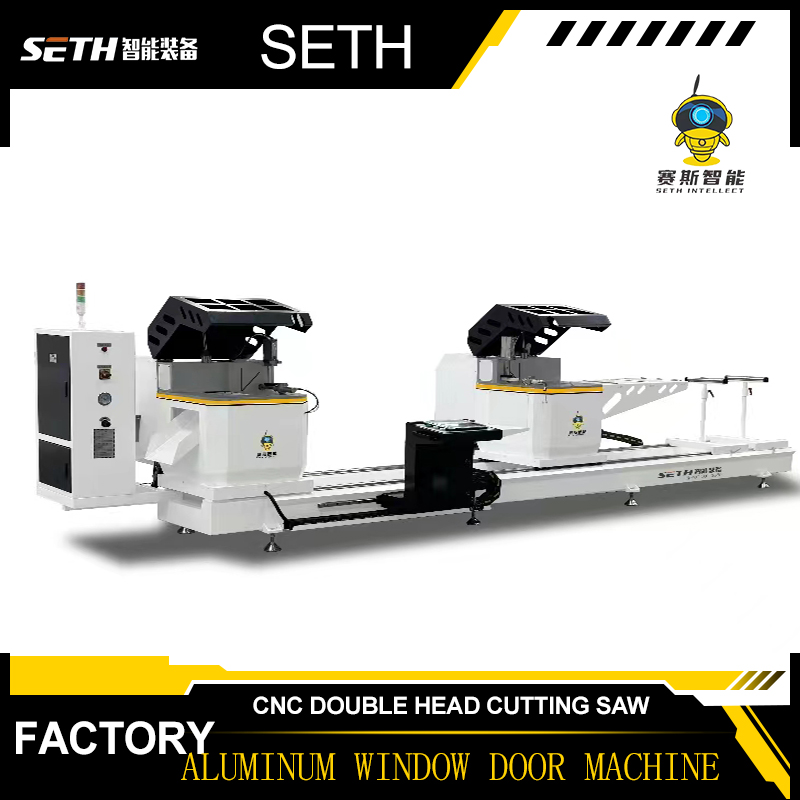

High Precision CNC Double-head Upcut Cutting Saw for Aluminum Profiles

High Precision CNC Double-head Upcut Cutting Saw for Aluminum Profiles

Model:LJZ2-CNC-550*6000

Specification:

Mainly used for aluminum alloy profile，aluminum extrusion ,curtain wall material. Window material cutting, can also be used for plastic material cutting blanking, the use of hard alloy saw blade, outer diameter can reach 600mm, high speed. When the machine is working, two saw blades can be cut at the same time or separately. Saw head can be placed into 90°45° Angle, so it is more suitable for aluminum doors and Windows, aluminum curtain wall material cutting.

1 、Cutting length          0mm-6000mm

2 、Cutting width×height  (b×h)  (90°135mm ×330mm)

3 、                             (45°105mm×330mm)

4 、Main motor power                  3KW

5 、Main motor speed                  2840r/min

6 、Saw ruler size              medium 600×medium 30  × 144T

7 、Cutting angle          90°-45°

8 、Saw balde feeding speed            0-3m/min Saw blade returning speed                    2-3m/min

9 、Working pressure                      0.5-0.8Mpa

10 、Working voltage                    380v    50hz

dimension  (length×width×height)  ：  1200 x 1350 x 1600mm

(Supporting rack 4000*4000)

Standard configuration：

 The Aluminium Extrusion usage is wide in industries. It is used in different industries including electronics, automotive, mass transit, bridge decking, telecommunications, solar/renewable energy industries, and more. The main role of Aluminium Extrusion is to transform aluminium alloy into an extraordinary variety of products that can be used by the consumers. With this material, the designer has more scope to add their own design and creativity in the final product. Aluminium Extrusion in Various Industry Aluminium Extrusion is used in various industries like the auto industry, construction industry, transportation industry, and many more. In the Transportation Industry, it is considered ideal for engine blocks, transmission housings, panels, roof rails, and much more. In the auto industry, the Aluminium Extrusion ranges from body and frame components to radiator enclosures, driveshafts, and many more. Features of Aluminium Extrusion manufacturer So many users are wondering with this question why Aluminium is recognized as an ideal material for various applications.
