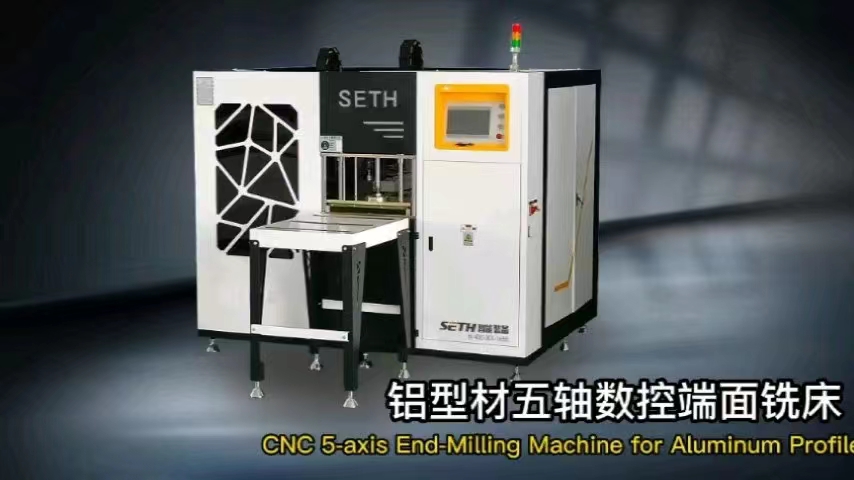

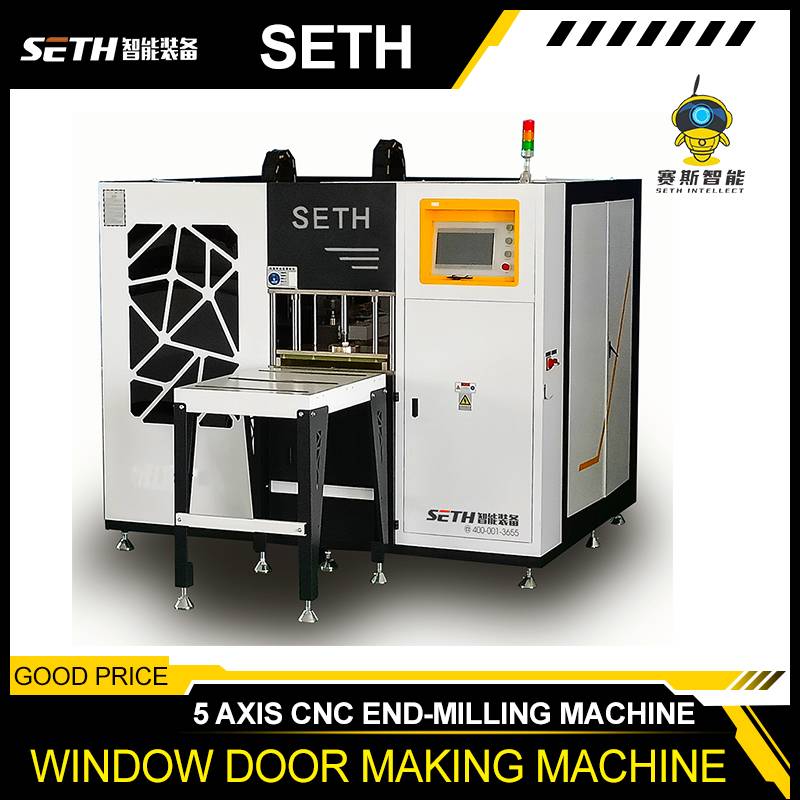

Five Axis CNC End Milling Machine
5 Axis CNC End Milling Machine for window transfom processing.
Model:LDXB5-CNC-250
Equipment characteristics:
(1) Professional for aluminum transom (including reinforced transom) end molding processing.
l(2) CNC system control, ERP online, seamless connection.
(3) Fool operation: no skilled workers, automatic access to the processing program, automatic processing.
(4) High efficiency: no need to adjust the tool, CNC complete, no need to customize the tool, an annual output of 200,000 square meters, a variety of combinations, improve the processing efficiency, is 2 times of the traditional CNC face milling;
(5) l High precision: two 3KW high-speed precision double-head motorized spindles.
l(6) Double-headed motorized spindle head and tail simultaneously equipped with different thickness milling cutter, one of the motorized spindle can realize automatic 90° reversal.
(7) 5 axis servo, no burr, no gap machining.
(8) Fully closed structure, reduce noise, health and environmental protection, simple appearance.
(9) There is a centralized collection of chips at the bottom to prevent aluminum chips from splashing.
(10) Equipped with diamond tools, no burrs.
(11) Standard tool life management system, saw blade need to be trimmed, replace automatic prompt.
(12) Standard automatic maintenance prompt function, in advance to eliminate equipment hidden dangers, improve equipment utilization.
Main technical parameters:
| power supply | 380V/50HZ or as client requirement |
| total power | 13.00kw |
| motor speed | 3000r/min |
| working pressure | 0.6-0.8Mpa |
| spindle power | 3kwx2 motor |
Milling cutter spindle diameter | 30mm |
Milling cutter diameter | 300mm |
cutter diameter | 350mm |
X axis feed speed | 0-1300 |
| Y axis adjust stroke | 0-250mm |
| Z axis adjust stroke | 0-550mm |
| table size | 500x320mm |
| Ovrall dimension | 2500×1700×2200 mm |
| weight | 2700kgs |
Power supply 380V 50Hz power 12kw
Air pressure 0.5 ~ 0.8Mpa Air consumption 250L/min
Cutting double-headed motorized spindle power 3kw×2 motor speed 3000r/min
Double head electric spindle shaft diameter φ30mm main cutting feed servo motor power 1.5Kw
Main cutting (left and right X axis) feed stroke 1200mm Table feed port size (width x depth) 480×420 mm
The maximum height of workpieces (raw materials) is 200mm. The tool is equipped with φ350mm saw blade. The number of tools is 4 groups
The minimum blade thickness is 3.2mm, and the maximum milling depth of 70mm is optional for various blade thicknesses
Tool Y (front and back) travel 100 mm Tool Z (up and down) travel 600 mm
Dimensions (length, width and height) 2500×1700×2200 mm Weight about 2700kg
