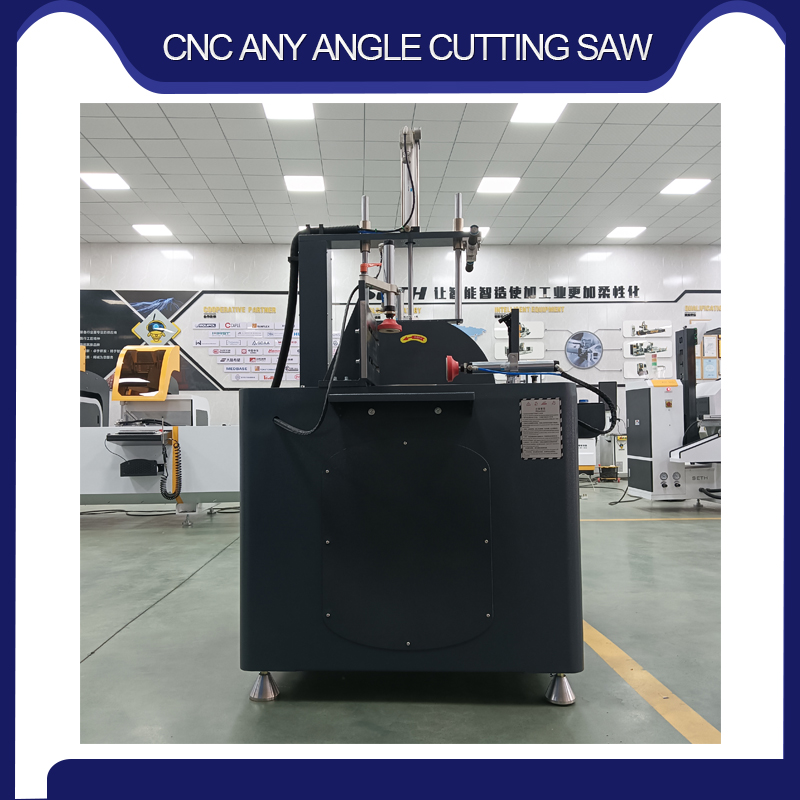

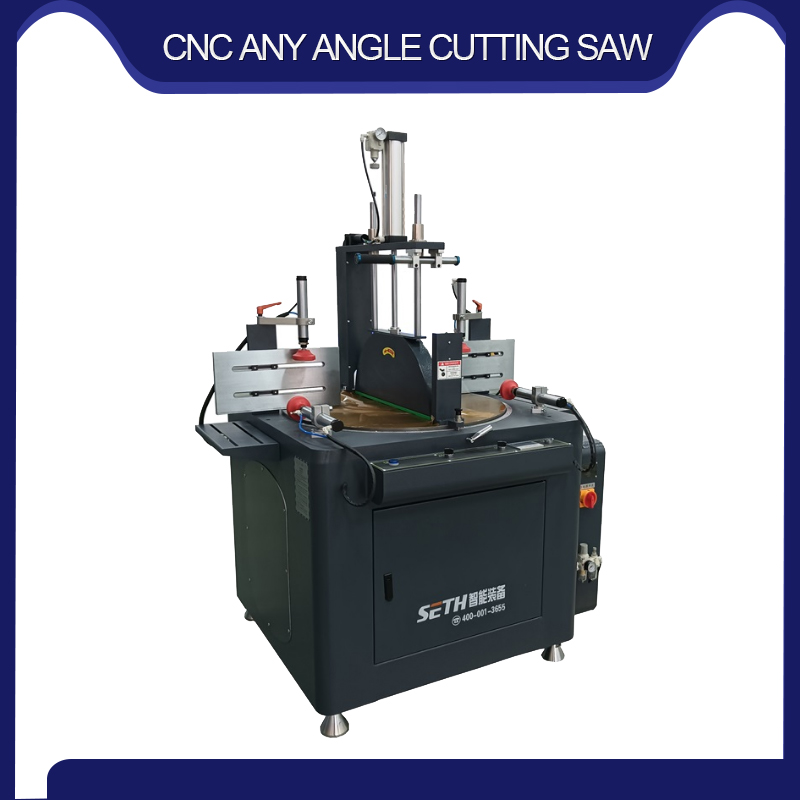

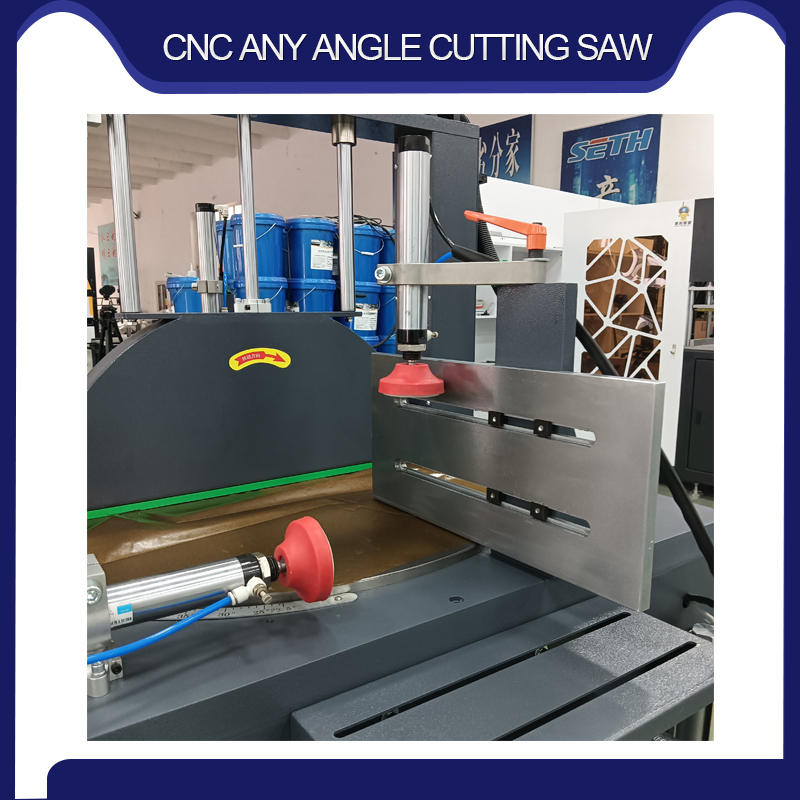

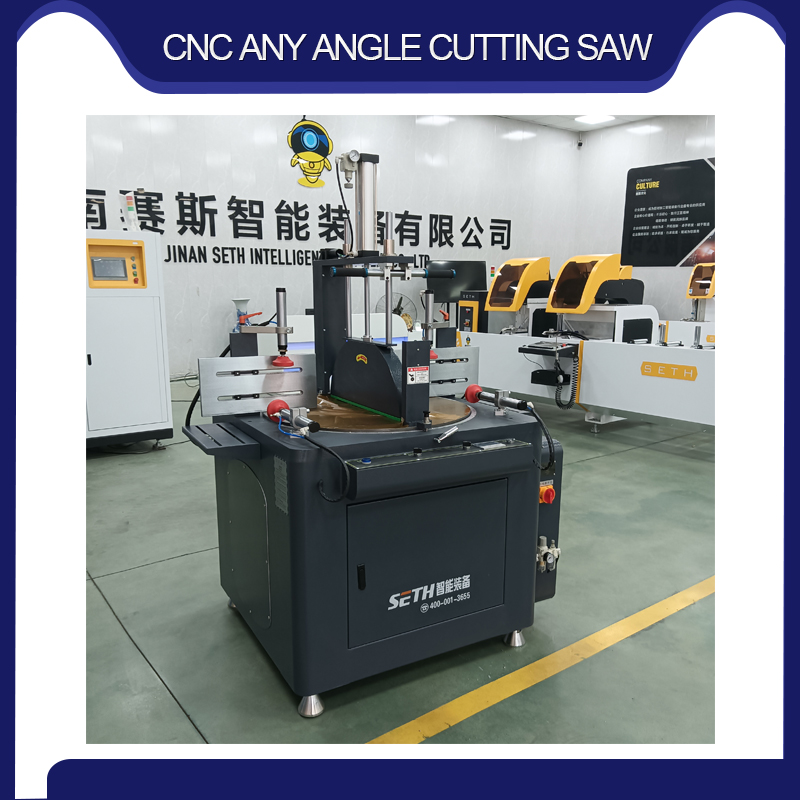

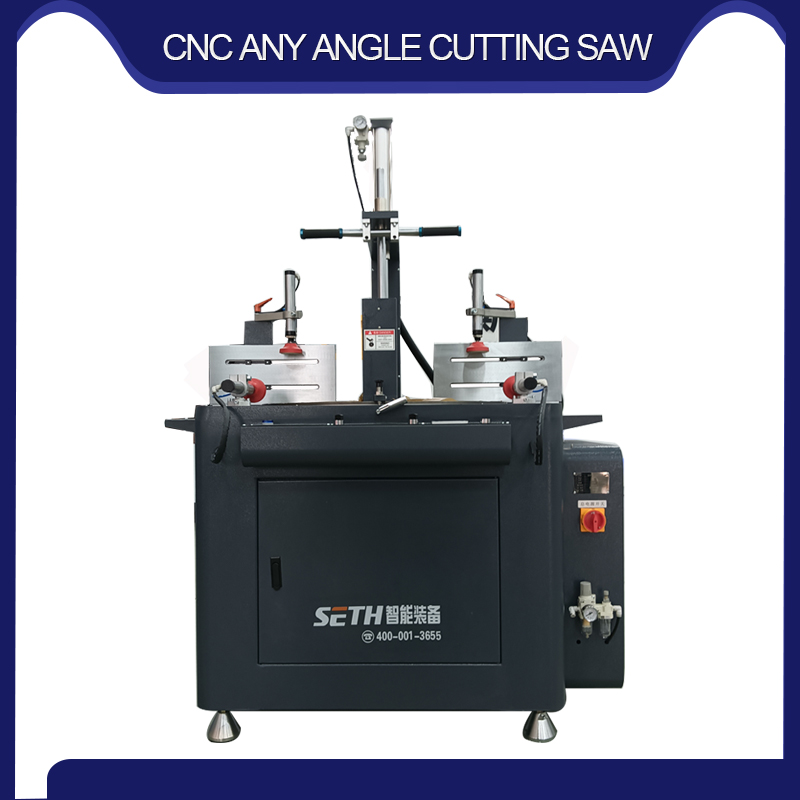

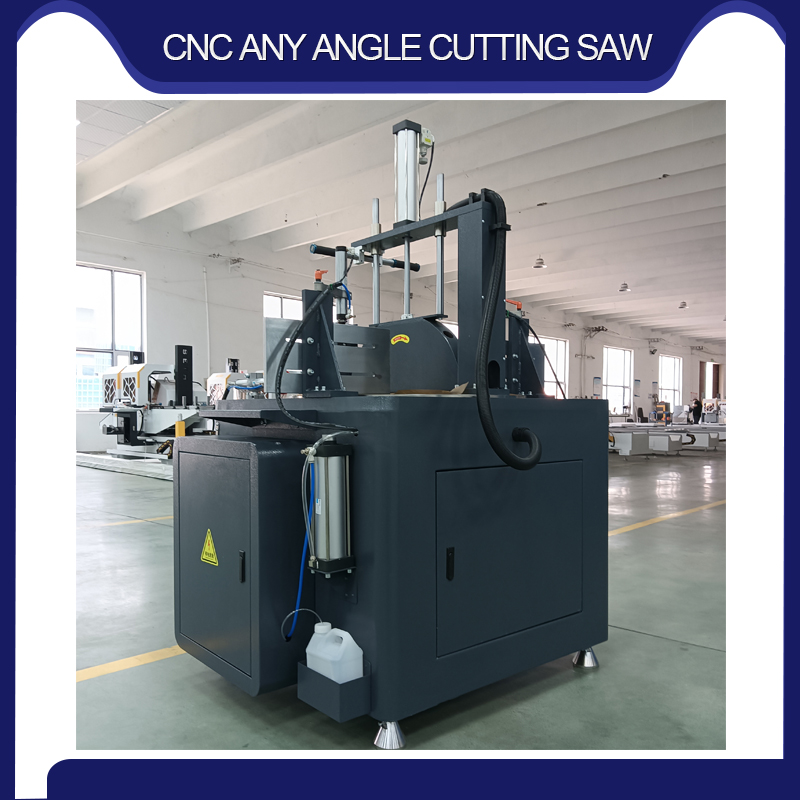

600mm CNC Single Head Any Angle Cutting Saw

Our 600mm CNC single head any angle cutting saw machine is suitable for cutting various types of aluminum profiles at 22.5 degree -157.5 degree any angle cutting.

  Contact Now
Product Details

CNC Any Angle Cutting Saw Model:LJZA-650


  • Suitable for cutting sections of 0-330mm, with a wide range of applications.

  • Carbide saw blade, high processing precision and high durability.

  • Can be used with digital display/CNC <optional> fixed-length table for high processing efficiency.

  • Can achieve simultaneous cutting of multiple profiles <90°>



CNC Single Head Any Angle Cutting Saw Machine Specification

Power supply380V/50HzCutting Width:45° max 200mm,90° max300mm
Motor speed2840r/minCutting height:max 215mm
Motor Power3*1kwSaw Blade Specification::Φ600*4*Φ30 Z144
Working pressure0.5~0.8MpaAir consumption:30L/min
Overall Dimension1200*1200*1950mmWeight:650kg

CNC Cutting Saw Machine Manufacturer

aluminum cnc machine manufacturer.jpg

Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door

machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different

clients, and can also be customized according to customer requirements of different grades of products.

Our company has rich experience in production and more than 10 national patents and passed ISO9001,

SGS,CE certifications,excellent product design and development engineers, skilled production engineers,

experienced production management team and after-sales service that providing you with a strong guarantee.


Except our aluminum CNC single head cutting saw machine,we also have products including aluminum&uPVC

profile machining center,cnc drilling milling machine,welding machine,corner cleaning machine,corner cutting

saw machine,corner crimping machine,punching machine&drilling machine.


Our Aluminum CNC Cutting Saw Machine Delivery

aluminum machine factory.jpg


FAQ:

Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company

in china.

Q: SETH's main products?
A: Aluminum &upvc window machines: CNC cutting center, double miter saw, end milling machine,CNC milling

machine, aluminum punching machine, end milling machinewelding machine,CNC copy router and corner connector

saw, etc;

Wood window machines: wood saw, wood window frame machine,vertical & horizontal drilling machine, dovtail making

machine, wood planner, and tenon making machine, etc.

Q: SETH's  after-service?
A: 1option:
    We have engineers to install the machines and train your workers.
    Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,subsidy

USD70 per day.

   2 option:
    On-line Service and All documents and videos for Installation and train operation for free.(For Optional)

Product form
