Aluminum CNC Double Head Mitre Saw Machine

1.Mainly used for aluminum curtain wall material,window material can also be used for the cutting of plastic upvc profiles.

2.Use diamond saw blades,diameter 500mm-600mm.

3.Two saw blades can be cut simultaneously or separately.

4.45 degree and 90 degree cutting.

5.Integrated casting mould

6.High wire speed, high precision, good quality

Contact Now

Product Details

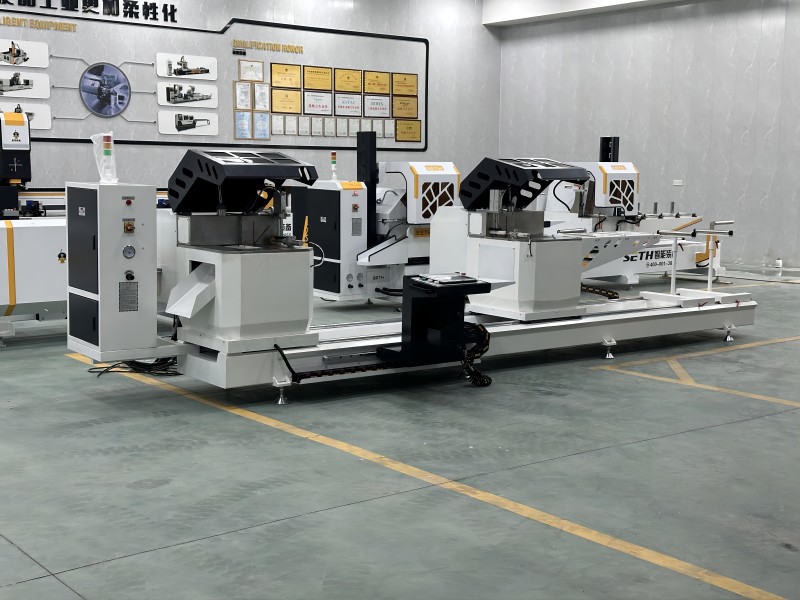

Aluminum CNC Double Head Mitre Saw Machine

Model: LJZ2-CNC-550*6000

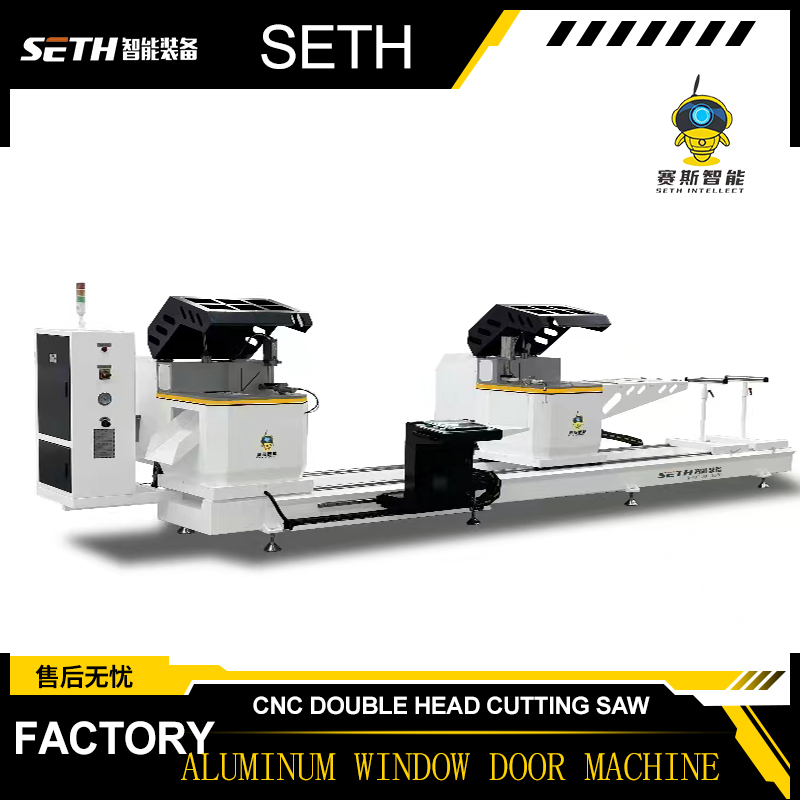

CNC double mitre saw.jpg

First,

Mainly used for aluminum curtain wall material. The cutting of the window material can also be used for the cutting of plastic profiles, the use of diamond saw blade.

the outer diameter can reach 500-600mm, and the speed is high. When the machine is working, the two saw blades can be cut at the same time or cut separately.

The saw head can be placed into the required Angle of 90°45°, so it is more suitable for cutting aluminum doors and Windows and aluminum curtain wall materials.

Power supply	380v 50hz
Saw head motor	2 × 3KW/3000r/min
Working pressure	0.6~ 0.8MPa
Air consumption	60L/min
Cutting length	Max5000mm min 280mm Short cutting function is the shortest 200mm
Cutting width	Max 150mm
Max. Cutting slope	45°150× 170mm 90°150×345mm
Max. square tube cutting	150×200mm
Cutting angle	45degree 90degree
Feeding speed	continuously viable 0-4m/min
specification	ø550 × ø30 × 4.4 × Z120
dimension	6550× 1300× 1800 mm
weight	2000kgs
Accuracy of repeated fixed length	≤ 0.1mm
Allowance of section cutting angle	± 3’
Flatness of cutting profile	≤ 0.02m
Roughness of cutting profile	Ra 12.5 μm
