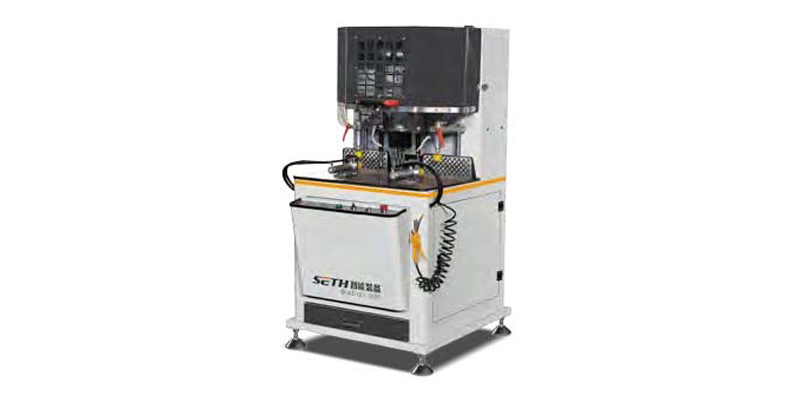

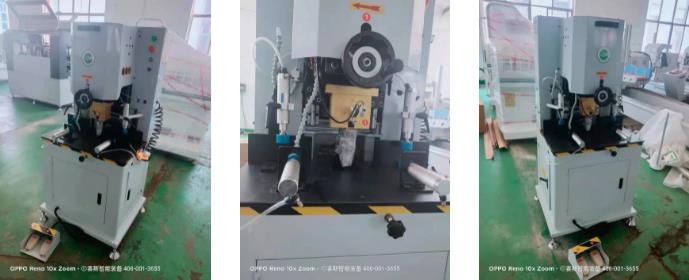

Vertical Lock-Hole Machine
Suitable for door and window handle and lock mounting hole and groove forming.
Drilling bag and milling cutter can be customized according to sample according to different handles and locks.
Convenient operation, stable performance and high machining efficiency.
Product Details
SHLJ-100
Used for all kinds of aluminum alloy transmission box, hand lock, milling and one-time forming.
Adopt double shaft combined cutting, special equipment for hand lock of transmission box.
Automatic spray cooling tool, improve tool life.
A clamping can be completed profiles perpendicular to each other in the two sides of the hole.
The upper slot is formed by a single cutting with a professional cutter, and the length of the slot can be adjusted at will.
Power supply | 380V/50Hz |
Total motor power | 1.5kW+2.2kW |
Air consumption | 2L/min |
Operating pressure | 0.6~0.8MPa |
Motor shaft diameter | Ф12mm |
Number of milling cutter | Ф14mm |
Worktable dimension | 690×340mm |
Overall dimension | 800×695×1000mm |
Weight | About 200kg |
Product form
