Double-head Precision Cutting Saw for Aluminum Profile

Mainly used for cutting industrial aluminum profiles, broken bridge aluminum doors and windows, curtain wall materials, and also used for cutting and blanking PVC and wood profiles.

Imported digital magnetic grid system automatically displays the

cutting length, which has high precision of repeated positioning and convenient operation.

High-quality carbide saw blades for aluminum materials are selected, with an outer diameter of 500, high linear speed and high machining accuracy.

Contact Now

Product Details

LJZ2-CNS-500*4300

The high-precision spindle makes the saw blade rotate stably and effectively improves the surface quality of the workpiece.

Gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.

Adopt micro spray cooling device.

The machine head can rotate automatically, position and clamp in two directions, and can work independently with a single machine head.

Automatic opening and closing of protective cover makes operation safer.

The saw blade automatically swings at an angle of 45° and 90° , and the protective cover automatically opens and closes, which makes the operation safer.

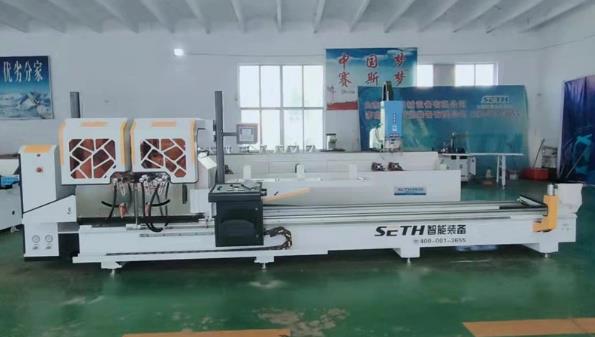

Double-head Precision Cutting Saw for Aluminum Profile.jpg

Power supply	380V/50Hz
Saw head motor	2×3.0kW 2840r/min
Working pressure	0.6~0.8MPa
Air supply	60L/min
Cutting length	380~4300mm
Cutting width	Max. 135mm
Cutting height	Max. 220mm
Max. cutting slope	45°135×180mm
Max. cutting slope	90°135×220mm
Cutting angle	90°、 45°
Feeding speed	Infinite speed variation0~3m/min
Saw blade specification	Ф500×4.4×Ф30 Z=120
Overall dimension	5800×1800×150mm
Weight	About 1450kg
