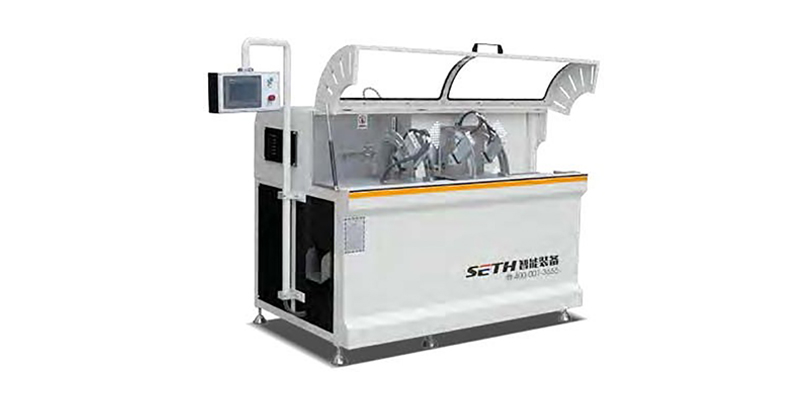

Corner Connector CNC Cutting Saw for Aluminum Profile

This machine is used for cutting and blanking aluminum door and window corner profiles, with simple operation, reliable performance, advanced technology and easy maintenance.

Taiwan Province Delta CNC control system is used, and the control

system adopts man-machine interface, which is simple and easy to operate.

The cutting tool adopts cemented carbide saw blade, which has high cutting speed, high productivity and high machining precision.

Contact Now

Product Details

LJJA-CNC-500A

The feed motion pair adopts linear motion bearing, which has small motion resistance and high precision.

The feeding mechanism adopts automatic feeding system, which is stable and reliable with high efficiency.

With high automation, the advance and retreat of clamping and sawing are controlled by pneumatic system, which is safe and reliable.

It has automatic counting function and no cutting function of tailings.

Continuous cutting of 6-meter angle profile can be realized only by clamping once.

Automatically save the number of cut segments in case of power failure.

Adopt micro spray cooling device to save the processing cost of doors and windows (alternative).

Corner Connector CNC Cutting Saw for Aluminum Profile.jpg

Power supply	380V/50Hz
Saw head motor	2×2.2kW 3200r/min
Working pressure	0.6~0.8MPa
Air supply	60L/min
Cutting length	2~580mm
Cutting width	Max. 140mm
Cutting height	Max. 240mm
Max. cutting slope	45°120×170mm
Max. cutting slope	90°120×200mm
Cutting angle	90°
Feeding speed	Infinite speed variation0~3m/min
Saw blade specification	Ф500×3.8×Ф30 Z=120
Overall dimension	5950×1770×1840mm
Weight	About 500kg
