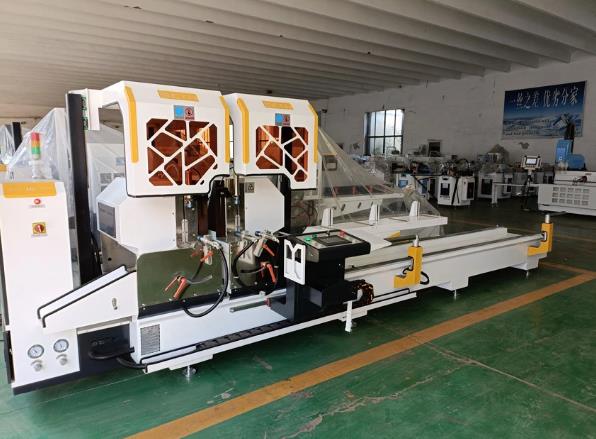

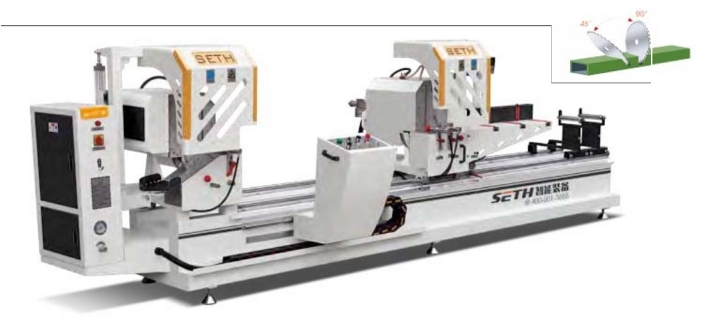

CNS Cutting Saw for Aluminum Profile

It is mainly used for cutting and blanking aluminum alloy curtain wall materials and window materials, and can also be used for cutting and blanking plastic profiles, and can be equipped with numerical control system and automatic cutting corner code function.

Using cemented carbide saw blade, the outer diameter can reach 450,

the linear speed is high, and the machining precision is high.

The right nose feed adopts the high lead ball screw motion mode, which has high transmission precision, accurate positioning and stable operation.

Contact Now

Product Details

LJZ2-CNS-450*3700A

High precision spindle makes the saw blade rotate stably.

Gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.

Adopt micro spray cooling device to save the processing cost of doors and windows (alternative).

When the machine works, the saw blades with two saw heads can cut at the same time or separately.

With the saw blade from back to front, the sawing profile is safer and more reliable, and the sawing height and width are very large.

The saw blade can automatically swing to the required angle of 45° and 90° .

CNS Cutting Saw for Aluminum Profile.jpg

Power supply	380V/50Hz
Saw head motor	2×2.2kW 3200r/min
Working pressure	0.6~0.8MPa
Air supply	60L/min
Cutting length	550~3700mm
Cutting width	Max. 120mm
Cutting height	Max. 160mm
Max. cutting slope	45°120×170mm
Max. cutting slope	90°120×200mm
Cutting angle	45°~157.5°
Feeding speed	Infinite speed variation0~3m/min
Saw blade specification	Ф450×4.4×Ф30 Z=120
Overall dimension	7800×1500×2040mm
Weight	About 1050kg
