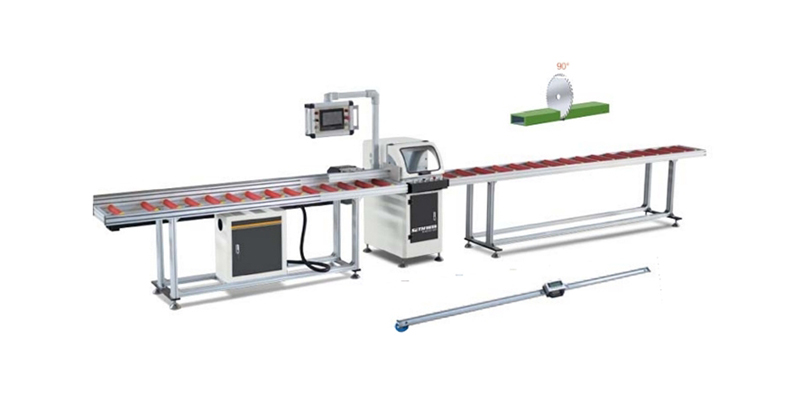

CNC Precision Cutting Saw With Wireless Measurement for Aluminum Profile

It is suitable for 90° precision cutting process of aluminum alloy glass wire pressing profile, and is suitable for mass continuous production.

Bluetooth transmission is adopted, which is accurate and does not need secondary modification.

Equipped with tool detection system to improve service life.

Contact Now

Product Details

LJLY-CNC-350

It is suitable for 90° precision cutting process of aluminum alloy glass wire pressing profile, and is suitable for mass continuous production.

Bluetooth transmission is adopted, which is accurate and does not need secondary modification.

Equipped with tool detection system to improve service life.

Equipped with wireless hand-held transmission system, automatic material reduction function.

The standard coding function is convenient for customers to use the material type without making mistakes, thus improving the utilization rate of the site.

It has high power and strong load capacity, providing guarantee for later use.

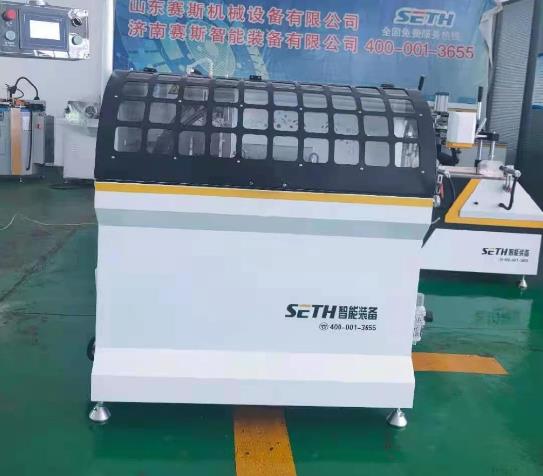

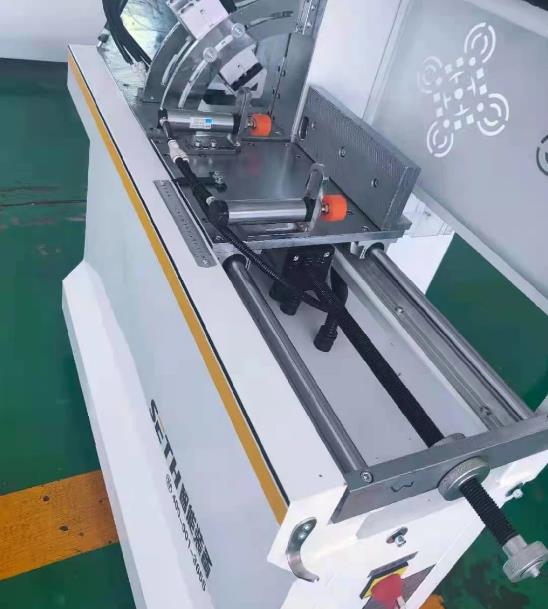

CNC Precision Cutting Saw With Wireless Measurement for Aluminum Profile.jpg

Power supply	380V/50Hz
Input power	1.5kw
Motor speed	2800r/min
Operating pressure	0.6~0.8MPa
Air consumption	15L/min
Cutting length	200~2500mm
Cutting width	70mm
Cutting height	80mm
Sawing angle	90°
Saw blade specification	Ф400×3.2×Ф30 Z=100
Cutting accuracy	±0.1mm
Cutting angle error	±5′
Overall dimension	8500×1200×1100mm
Weight	About 400kg
