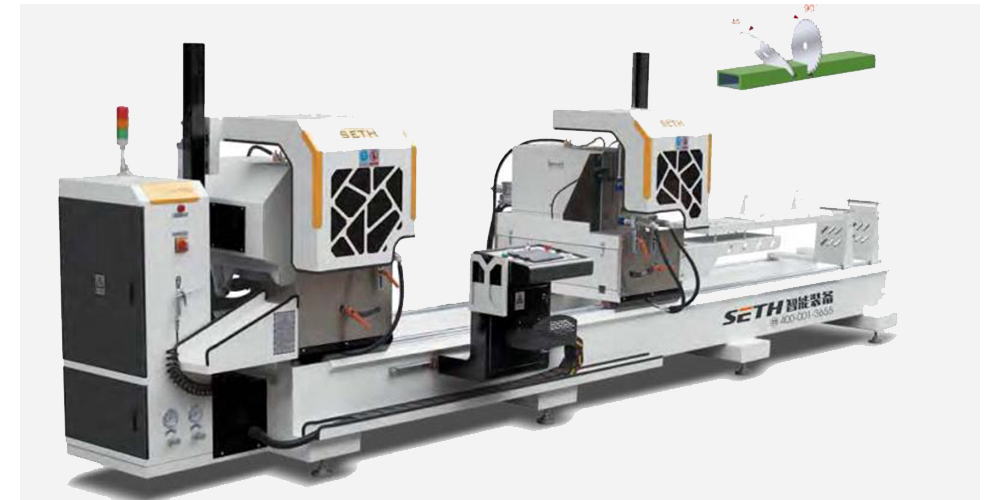

CNC Double Head Precision Cutting Saw Machine

Mainly used for cutting industrial aluminum profiles, broken bridge aluminum doors and windows, curtain wall materials, and also used for cutting and blanking PVC and wood profiles.

The machine adopts numerical control technology, and can complete automatic positioning, cutting and blanking of profiles with different specifications and sizes.

High-quality carbide saw blades for aluminum materials are selected, with an outer diameter of 500, high linear speed and high machining accuracy.

Contact Now

Product Details

Numerical manipulate transmission adopts excessive preferred gear rack, with excessive transmission precision, correct positioning and solid operation.

The excessive-precision spindle makes the noticed blade rotate stably and efficiently improves the floor exceptional of the workpiece.

Gas-liquid damping cylinder realizes uniform feed velocity law and solid movement.

Adopt micro spray cooling device.

The device head can rotate automatically, role and clamp in directions, and might paintings independently with a unmarried device head.

Automatically opening and closing the protective cover,Make the operation safer.

The saw blade automatically swings at an angle of 45° and 90°, and the protective cover automatically opens and closes, which makes the operation safer.

With the saw blade from back to front, the sawing profile is safer and more reliable, and the sawing height and width are very large.

CNC Double-head Precision Cutting Saw for Aluminum Profile.jpg

Power supply	380V/50Hz
Saw head motor	2×3.0kW 2840r/min
Working pressure	0.6~0.8MPa
Air supply	60L/min
Cutting length	380~4300mm
Cutting width	Max. 135mm
Max. cutting slope	45°135×180mm
Max. cutting slope	90°135×220mm
Cutting angle	90°、 45°
Feeding speed	Infinite speed variation0~3m/min
Saw blade specification	Ф500×4.4×Ф30 Z=120
Overall dimension	5800×1800×1500mm
Weight	About 1750kg
