CNC Cutting Center for Aluminum PVC Profile

Uses for cutting 45° and 90° of aluminum PVC profile of window,door,curtain wall,solar and other industrial aluminum with functions of automatic cycle feeding, cutting and automatic output of finished products.

Various door and window profiles can be cut without adding profile profiling.

Automatic feeding worktable can continuously and automatically clamp profiles for cutting processing, and imported high-precision gear rack is used for the motion of manipulator to ensure the feeding accuracy.

Contact Now

Product Details

The shifting component adopts excessive-precision linear manual rail pair, which runs stably and guarantees the machining accuracy.

Imported brilliant manage machine guarantees solid and dependable operation of equipment.

Imported motor is immediately related to noticed blade, which has solid reducing and excessive machining precision.

Equipped with multi-station capacity follow-up tool magazine, fully enclosed shell design and multiple safety protection structures to ensure the safety of operators.

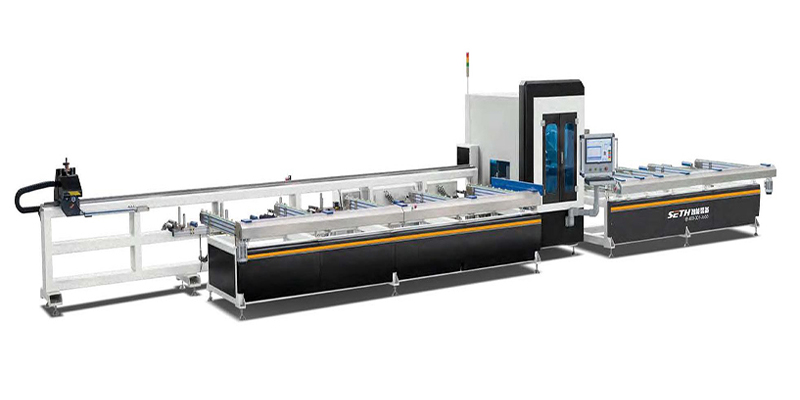

CNC Cutting Center for Aluminum Profile.jpg

Power supply	380V/50Hz
Motor speed	2800r/min
Total power	11kW
Working pressure	0.6~0.8MpA
Air supply	50L/min
Cutting length	300~6500mm
Cutting width	150mm
Cutting height	150mm
Cutting angle	45°、- 45°、90°
Feeding speed	0~3m/min
Saw blade specification	Ф500×4.4×Ф30 Z=120
Overall dimension	13500×4500×2300mm
Weight	About 2100kg
