CNC Arbitrary-corner Double-head Cutting Saw for Aluminum Profile

Mainly used for cutting industrial aluminum profiles, broken bridge aluminum doors and windows, curtain wall materials, and also used for cutting and blanking PVC and wood profiles.

The directly connected blades adopt lever-swing cutting type.The

feeding of the blade is driven by hydraulic damping cylinder, with smooth cutting.

The imported high precision blade makes the cutting surface more smooth.

Contact Now

Product Details

LJB2B-CNC-500*6000

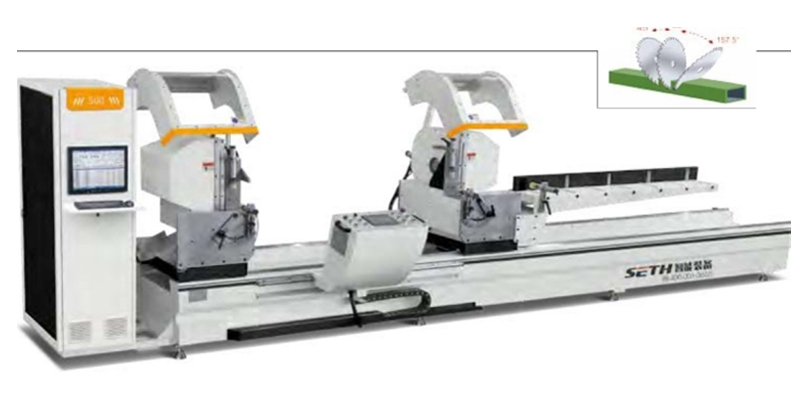

The cutting angle is auto adjustable through the imported servo motor between 45° to 157.5° Imported control system can accomplish cutting optimization.

Several profile processing dimensions can be input in one time and

make continuous cutting.

The processing dimension can be directly input, the cutting length can be changed without returning the reference point.

The airproof device under the worktable has wonderful crumbs- clearing effect.

The following saw cover keeps it working in the clean environment.

The profile is clamped by two cylinders in every head, and kept the cutting security.

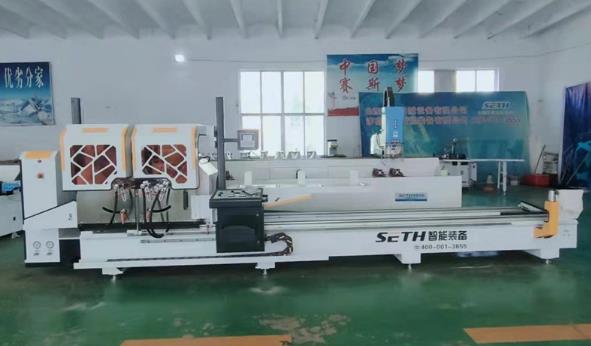

CNC Arbitrary-corner Double-head Cutting Saw for Aluminum Profile.jpg

Power supply	380V/50Hz
Saw head motor	2×3.0kW 2840r/min
Working pressure	0.6~0.8MPa
Air supply	60L/min
Cutting length	90°360~6000mm
Cutting width	Max. 135mm
Cutting height	Max. 230mm
Max. cutting slope	45°135×180mm
Max. cutting slope	90°135×230mm
Cutting angle	45°~157.5°
Feeding speed	Infinite speed variation0~3m/min
Saw blade specification	Ф500×4.4×Ф30 Z=120
Overall dimension	7800×1500×2040mm
Weight	About 2500kg
