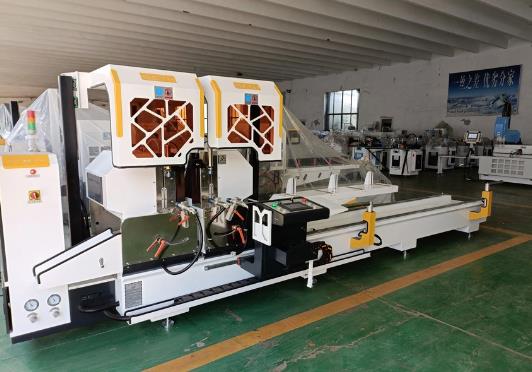

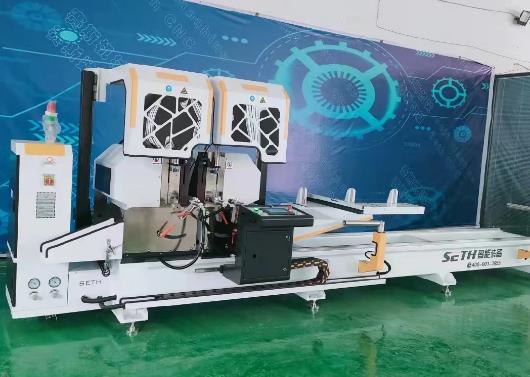

Double-head CNC Precision Cutting Saw for Aluminum Profile

It is mainly used for cutting industrial aluminum profiles, broken bridge aluminum doors and windows, curtain wall materials, and also for cutting PVC and wood profiles. 550 saw blades are used for cutting larger profiles.

Adopt square guide rail, with high precision of repeated positioning.

The machine adopts numerical control technology, and can complete automatic positioning, cutting and blanking of profiles with different specifications and sizes.

Contact Now

Product Details

LJZ2-CNC-550*4300

High-quality cemented carbide saw blades for aluminum materials are

selected, with high linear speed and high machining accuracy.

Numerical control transmission adopts high standard gear rack, with high transmission precision, accurate positioning and stable operation.

The high-precision spindle makes the saw blade rotate stably and effectively improves the surface quality of the workpiece.

Gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.

Adopt micro spray cooling device.

The saw blade automatically swings at an angle of 45° and 90°, and the protective cover automatically opens and closes, which makes the operation safer.

With the saw blade from back to front, the sawing profile is safer and

more reliable, and the sawing height and width are very large.

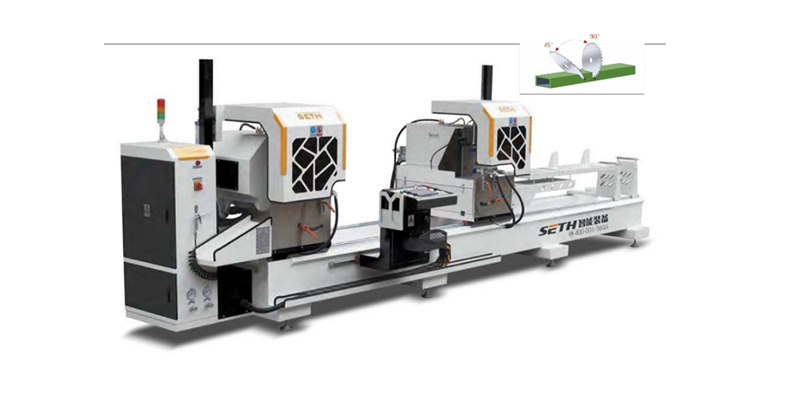

Double-head CNC Precision Cutting Saw for Aluminum Profile.jpg

Power supply	380V/50Hz
Saw head motor	2×3.0kW 2840r/min
Working pressure	0.6~0.8MPa
Air supply	60L/min
Cutting length	290~4300mm
Cutting width	Max. 175mm
Cutting height	Max. 280mm
Max. cutting slope	45°175×245mm
Max. cutting slope	90°175×280mm
Cutting angle	90°、 45°
Feeding speed	Infinite speed variation0~3m/min
Saw blade specification	Ф550×4.4×Ф30 Z=120
Overall dimension	5800×1900×1700mm
Weight	About 1900kg
