Double Head Precision Cutting Saw Machine

It is mainly used for cutting industrial aluminum profiles,aluminum doors and windows, curtain wall materials, and also for cutting PVC and wood profiles. It is convenient to cut oversized profiles by using 600 oversized saw blades.

Adopt square guide rail, with high precision of repeated positioning.

The machine adopts numerical control technology, and can complete automatic positioning, cutting and blanking of profiles with different specifications and sizes.

Contact Now

Product Details

LJZ2-CNC-600*4300

High-pleasant cemented carbide noticed blades for aluminum substances are

selected, with excessive linear pace and excessive machining accuracy.

Numerical manipulate transmission adopts excessive popular gear rack, with excessive transmission precision, correct positioning and strong operation.

The excessive-precision spindle makes the noticed blade rotate stably and successfully improves the floor pleasant of the workpiece.

Gas-liquid damping cylinder realizes uniform feed pace law and strong movement.

Adopt micro spray cooling device.

The saw blade automatically swings at an angle of 45° and 90°, and the protective cover automatically opens and closes, which makes the operation safer.

With the saw blade from back to front, the sawing profile is safer and

more reliable, and the sawing height and width are very large.

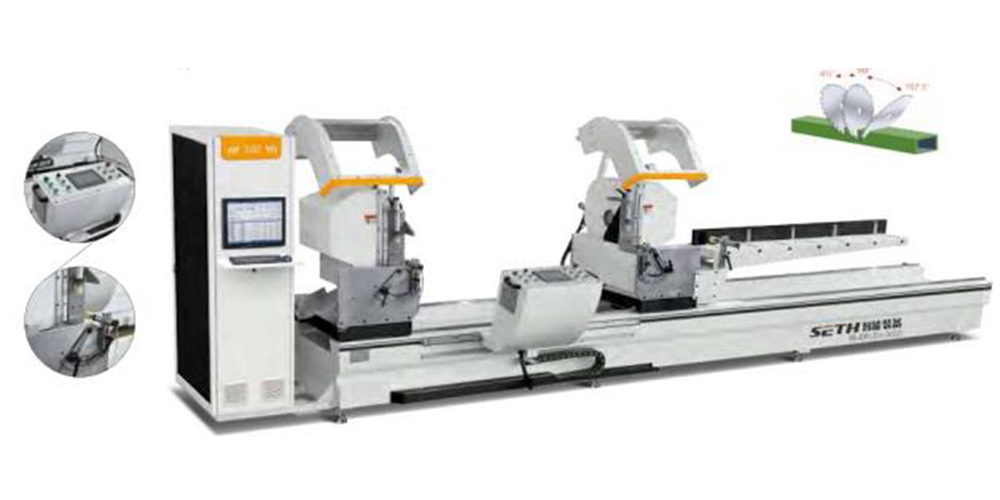

CNC Double-head Precision Cutting Saw for Aluminum Profile.jpg

Power supply	380V/50Hz
Saw head motor	2×3.0kW 2840r/min
Working pressure	0.6~0.8MPa
Air supply	60L/min
Cutting length	410~4300mm
Cutting width	Max. 210mm
Max. cutting slope	45°135×180mm
Max. cutting slope	90°210×320mm
Cutting angle	90°、 45°
Feeding speed	Infinite speed variation0~3m/min
Saw blade specification	Ф600×4.4×Ф30 Z=144
Overall dimension	5800×1900×1700mm
Weight	About 2000kg
