550mm saw blade CNC aluminum double mitre saw

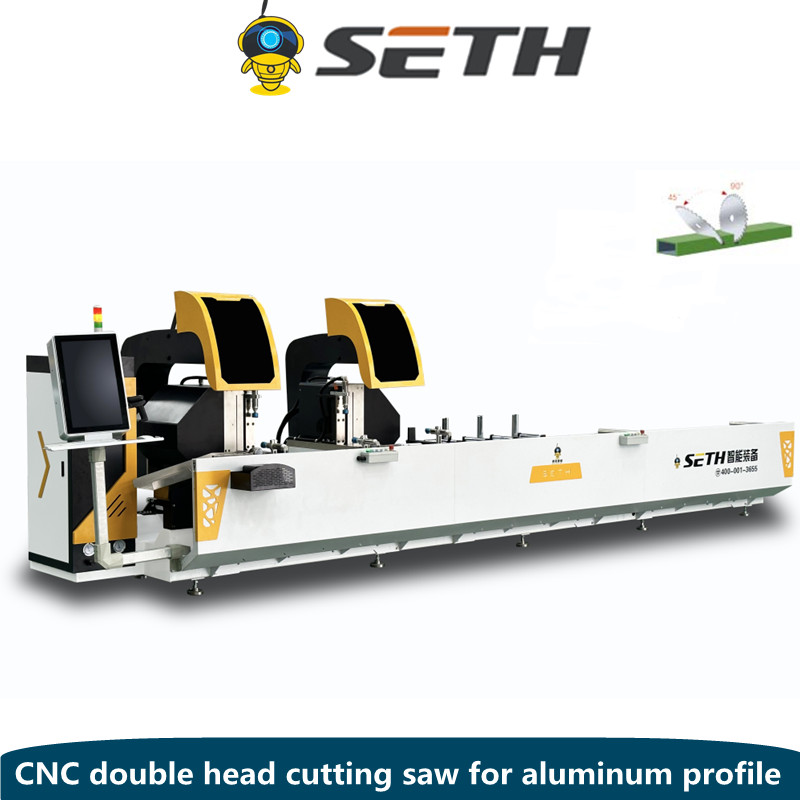

CNC double head precision cutting saw for aluminum /PVC uPVC profile cutting saw

Mainly used for cutting industrial aluminum profiles, aluminum system doors and Windows,
curtain wall materials,also can be used for PVC and wood Cutting .

This model for the system door and window intelligent connection model, support ERP MES management software door and window software docking, to achieve the integration of
production and marketing control to improve production efficiency.

Support a variety of data import methods: Internet, LAN, U disk, manual input, etc. It can realize the data
docking of common optimization software in the market, Xinger, Changfeng, Chuangying

Environmental protection function, unique chip removal, dust suction design, dust suction rate of 70%,

clean site, reduce cleaning frequency, improve work efficiency.

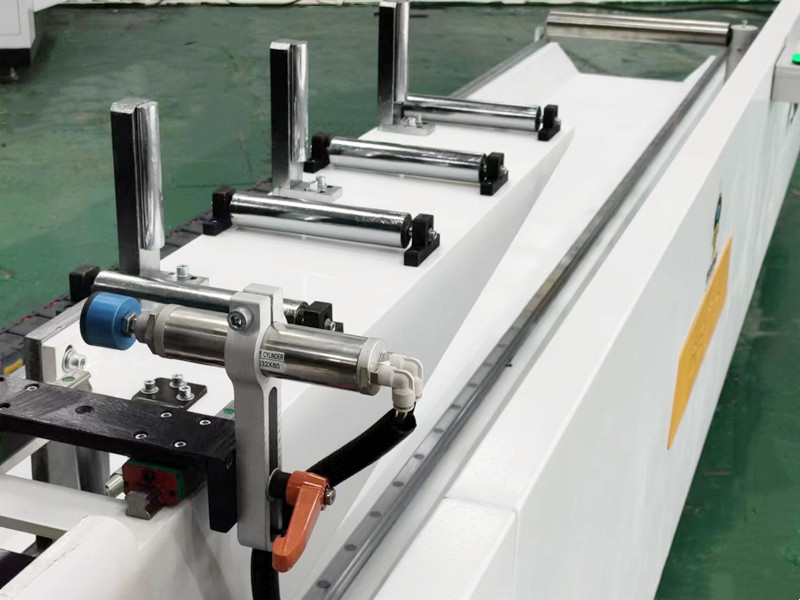

Equipped with patented rotary lifting bracket to avoid cutting errors caused by middle droop,
and equipped with movable profile bracket.

The latest arc cutting technology, sawing profiles safer, faster and more reliable.

Contact Now

Product Details

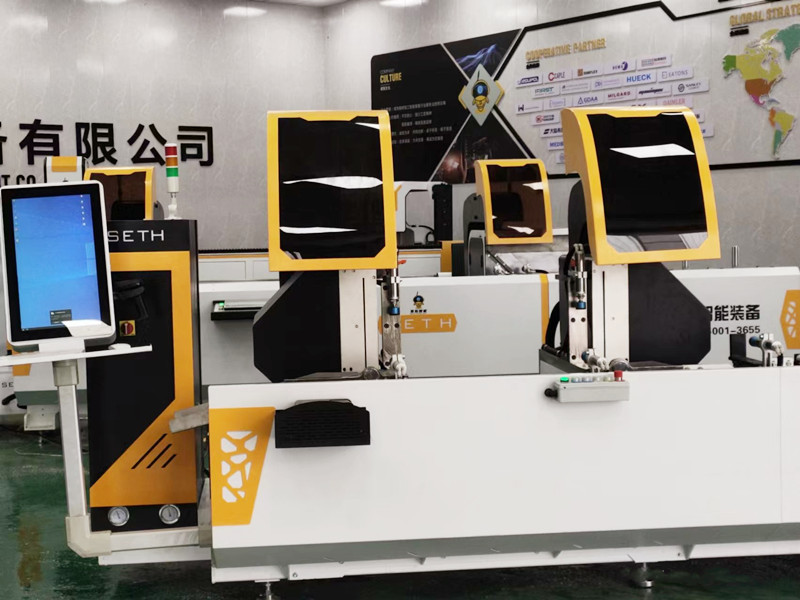

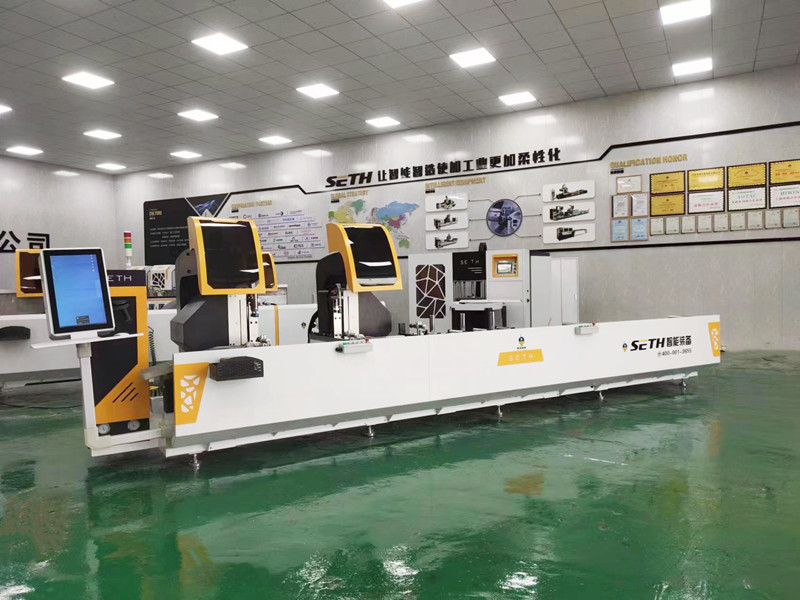

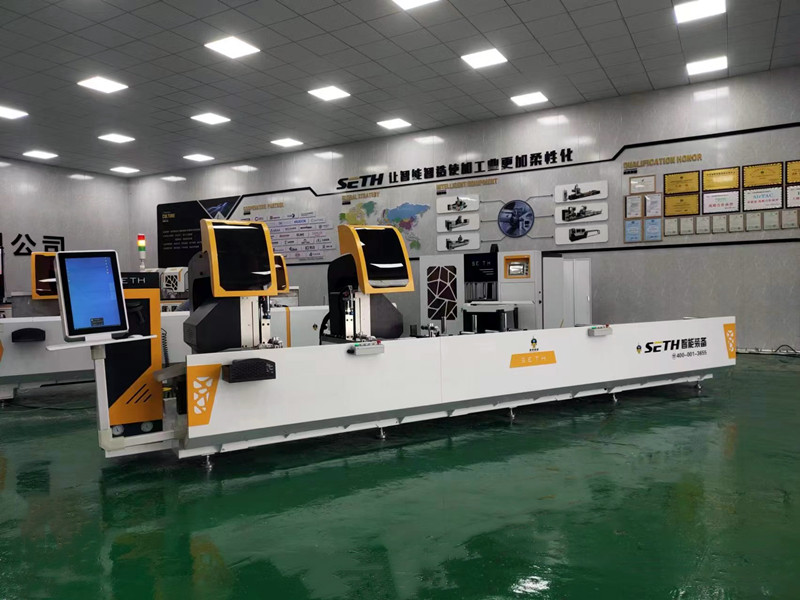

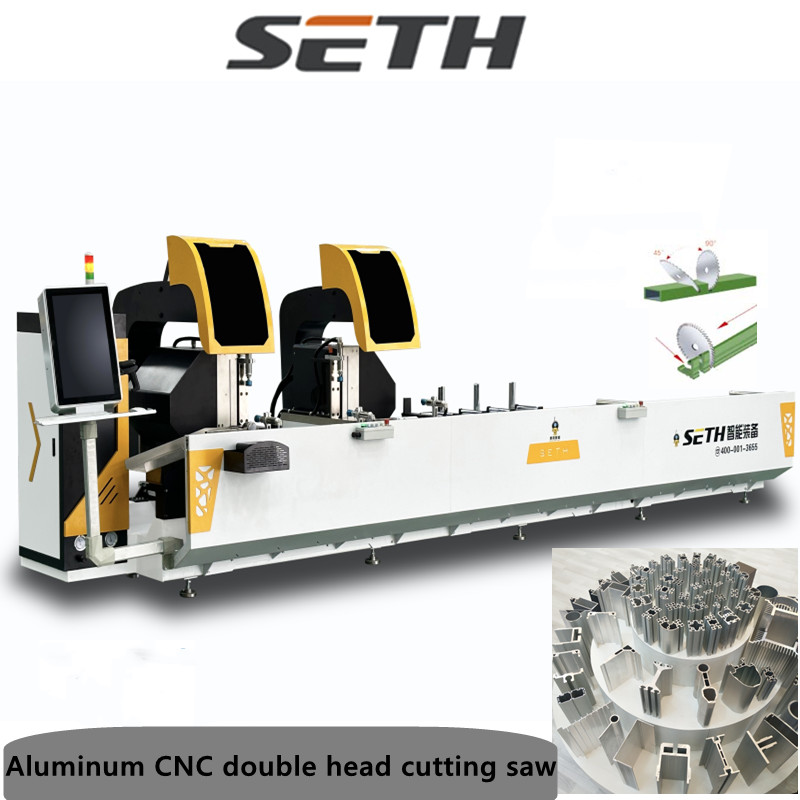

Aluminum CNC double head cutting saw with 550mm saw blade

☆ The machine adopts numerical control .

☆ The machine adopts numerical control technology and can complete automatic positioning
cutting of different sizes of profiles.

☆ Selected high-quality aluminum carbide or diamond saw blade, outer diameter up to
500,550mm,600mm high wire speed,high processing accuracy.

☆ CNC transmission adopts high standard rack and pinion, high transmission accuracy,
accurate positioning, stable work.

The new appearance level and unique mechanical design structure make the product more stable, easier to cut profiles and smoother cutting surface.

Foolproof operation without skilled workers, to solve the factory recruitment difficulties,
label printing function, error prevention function: profile error exceeds.
☆ High precision spindle ensures stable rotation of saw blade and
effectively improves surface quality of workpiece.

☆ Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.

☆ The use of micro spray cooling device.

☆ Automatic head rotation, bidirectional positioning, clamping, single head can work independently.

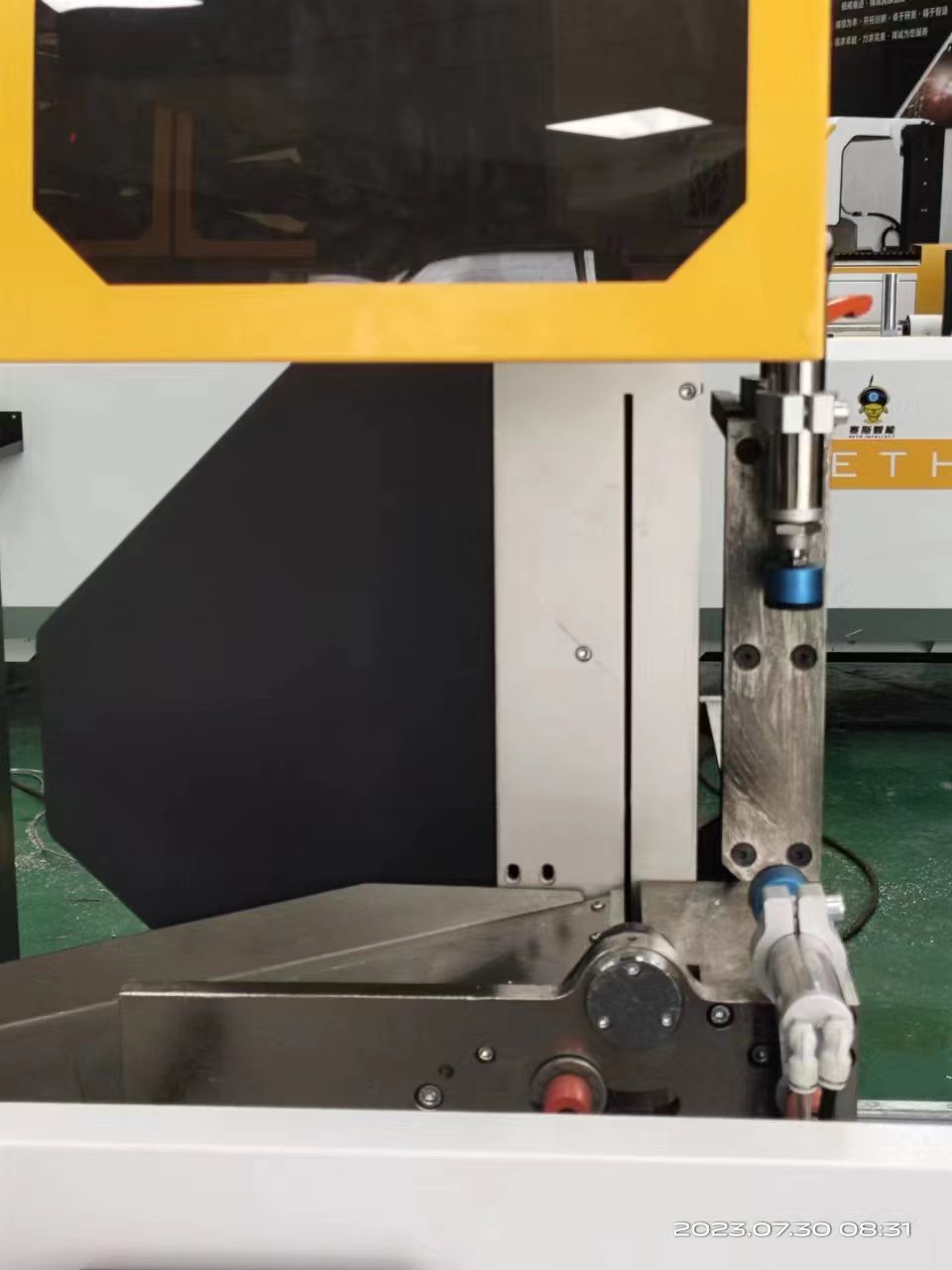

Automatic opening and closing protective cover,make operation safer.

☆ Saw blade from back to front, saw cutting profile is more safe and reliable, and saw cutting height
and saw cutting width are very large.echnology and can complete automatic positioning cutting of different sizes of profiles.

Power	380V 50HZ
Saw head motor	2×3KW/ 2840r/min
Working pressure	0.6 ~ 0.8mpa
Air consumption	60L/min
Saw length	Max4300mm MIN420mm
Saw width	Max 140mm
Maximum cutting slope	45°140×220mm 90°140×300mm
Sawing Angle	90° , 45°
Feed speed	stepless speed regulation 0-3m/min
Saw blade specifications	ø550 × ø30 × 4.4× Z120
Dimensions	5800×1800×1500 mm
Weight	1750 kg
Repeat constant length accuracy	≤ 0.05mm
Profile cutting Angle tolerance	±3 '
Cutting plane flatness	≤ 0. 1m
Roughness of cutting surface	Ra12.5μm

Hot sale products:

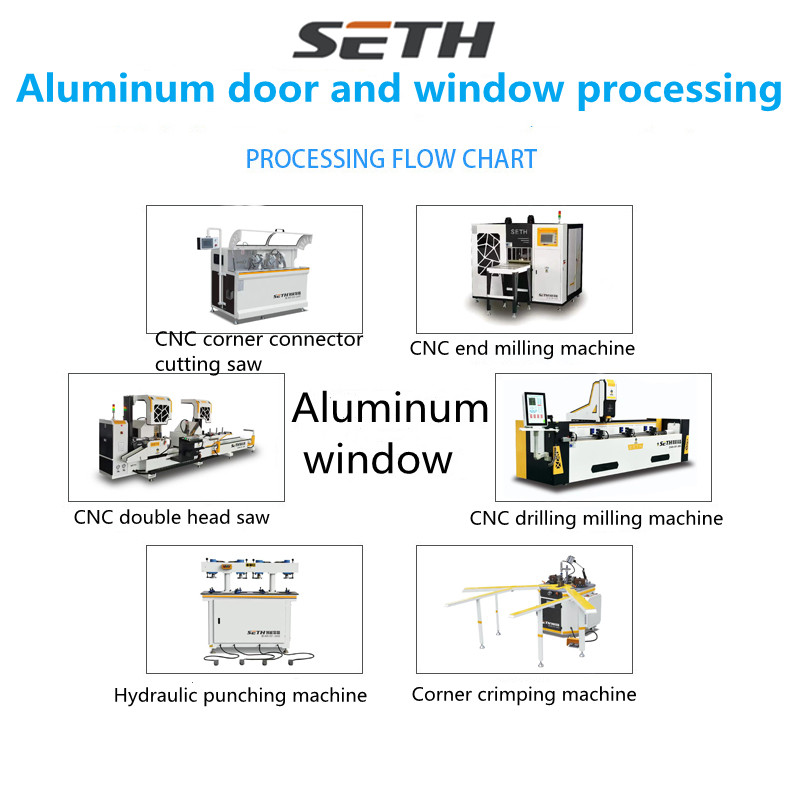

flow chart.jpg

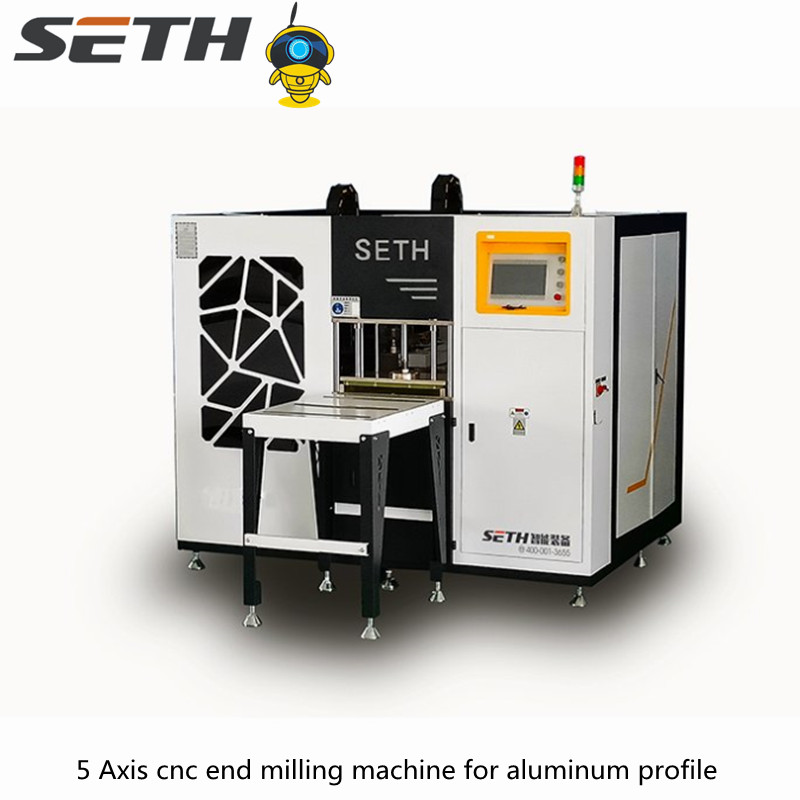

end milling machine (3).jpg

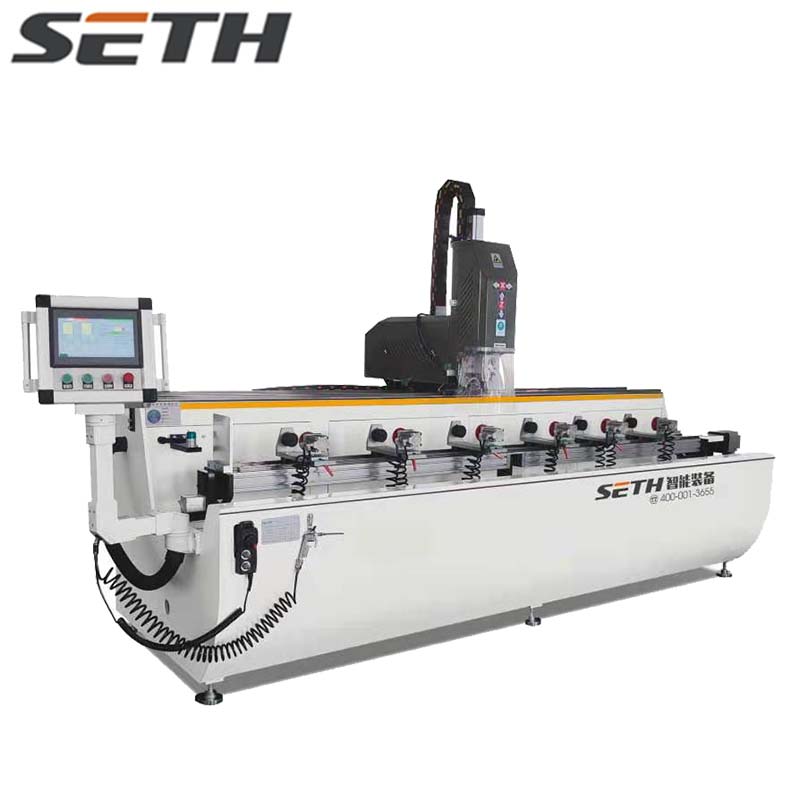

drilling milling machine.jpg

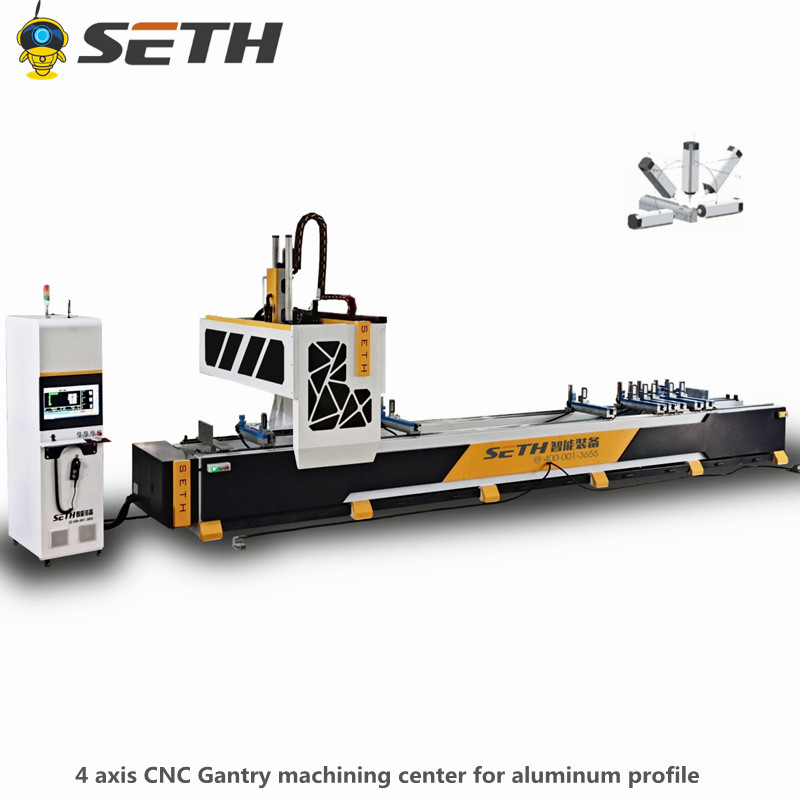

4 axis cnc machining center.jpg
